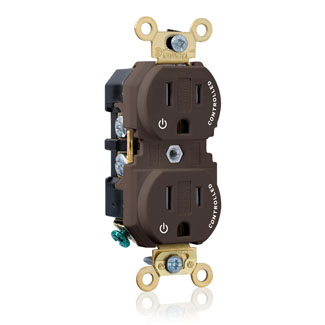

Leviton® 5262-2P Extra Heavy Duty Self Grounding Tamper Resistant Straight Blade Duplex Receptacle With 2 Plug Controlled Markings, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton® 5262-2P Extra Heavy Duty Self Grounding Tamper Resistant Straight Blade Duplex Receptacle With 2 Plug Controlled Markings, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU1281141
MFGR #5262-2P
Your Cost: $30.47/ea
Leviton® Straight Blade Duplex Receptacle, Extra Heavy Duty Self Grounding Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Brown, 4.06 in H x 1.53 in W x 1.27 in D Dimensions
Leviton® Straight Blade Duplex Receptacle, Extra Heavy Duty Self Grounding Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Brown, 4.06 in H x 1.53 in W x 1.27 in D Dimensions
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 5262-2P Country of Origin MX Currency USD Dimensions 4.06 in H x 1.53 in W x 1.27 in D Enclosure NEMA WD-1/WD-6 EU RoHS Indicator C Grade Industrial/Specification Gross Weight Per Pack 13.0000 lb Gross Weight per Pack Metric 0.12 Gross Weight UOM Metric kg Hazard Class N Height 9.7500 in Horsepower 1/2 Length 13.3750 in Material Nylon NEMA Rating NEMA 5-15R Number Of Poles 2 Standard UL / CSA / NOM-ANCE Temperature Rating -40 to 75 Terminal Type Back/Side Wired Type Extra Heavy Duty Self Grounding Tamper Resistant UNSPSC 39121406 UPC 11 07847770633 UPC 12 078477706336 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Brown Number of Wires 3 Voltage Rating 125 V Industrial Hot Terminal Split With 2 Plug Controlled Hot Terminal Split
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5262-2P |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.06 in H x 1.53 in W x 1.27 in D |
| Enclosure | NEMA WD-1/WD-6 |
| EU RoHS Indicator | C |
| Grade | Industrial/Specification |
| Gross Weight Per Pack | 13.0000 lb |
| Gross Weight per Pack Metric | 0.12 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 9.7500 in |
| Horsepower | 1/2 |
| Length | 13.3750 in |
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Standard | UL / CSA / NOM-ANCE |
| Temperature Rating | -40 to 75 |
| Terminal Type | Back/Side Wired |
| Type | Extra Heavy Duty Self Grounding Tamper Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 07847770633 |
| UPC 12 | 078477706336 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial |
| Hot Terminal Split With 2 Plug Controlled |
| Hot Terminal Split |
