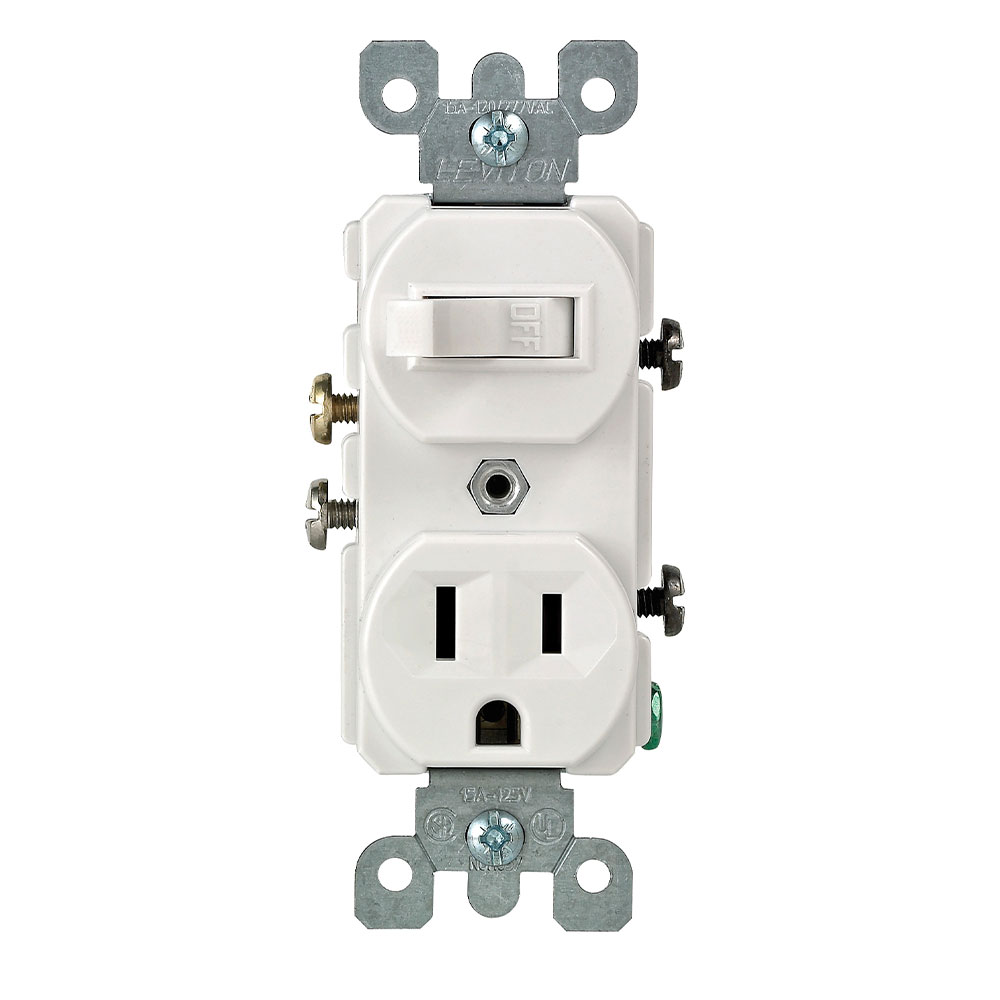

Leviton® 5225-W Duplex Outlet Combination Switch/Receptacle, 12 A at 120 VAC, 1 Poles, 14 to 12 AWG Wire
Receptacles and GFCI
73457
MFG #: 5225-W
Leviton®
9.38000
/ ea
With Leviton®'s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to Last and designed to save space, These attractively styled devices are at home in any setting.
- http://www.leviton.com(Seller Home Page URL)
- Owners Manual URL - Decora_5225_T_Manual.pdf(Owners Manual URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-5225-W.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=5225-W&minisite=10251(Spec Sheet URL)
- Applications
- Features
| Commercial |
| Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Permit Conversion to Separate Feeds, Limited Two-Year Warranty, Grounding, Made in Mexico |
| AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity |
| Terminal screw accept up to #12 AWG copper or copper clad wire |
| Fits standard wallboxes |
| Break-OFF tabs on devices with switches permit conversion to separate feeds |
| 1/2 hp at 120 VAC 12 a maximum amperage AC power rating |
| -40 to 120 deg C temperature rating |
| Steel strap and thermoplastic toggle actuator |
| 15 A, 120 VAC switch, 125 VAC receptacle electrical rating |
