Leviton®

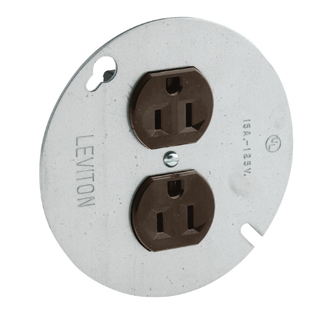

Leviton® 5042 Duplex Heavy Duty Grounding Straight Blade Receptacle With 4 in Cover, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton®
Leviton® 5042 Duplex Heavy Duty Grounding Straight Blade Receptacle With 4 in Cover, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU1287741
MFGR #5042
Your Cost: $12.67/ea
List: Leviton® Straight Blade Receptacle, Duplex Heavy Duty Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Brown, 4.12 in Dia x 16 in H Dimensions
Leviton® Straight Blade Receptacle, Duplex Heavy Duty Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Brown, 4.12 in Dia x 16 in H Dimensions
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 5042 Connection Side Wired Country of Origin MX Currency USD Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.3700 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Hazard Class N Height 10.0000 in Height [Metric] 10.4775 cm Length 20.0000 in Length [Metric] 10.2794 cm Material Nylon NEMA Rating 5-15R Standard ANSI (C-73);CSA Certified (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Listed (File E-13399);UL Listed 498 Temperature Rating -40 to +60 DEG C Type Duplex Receptacle UNSPSC 39121406 UPC 11 07847720910 UPC 12 078477209103 Width 1.19 in Width [Metric] 3.0175 cm Wire Size 14-10 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 AMP Number of Wires 3 Voltage Rating 125 Commercial Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5042 |
| Connection | Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3700 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 10.0000 in |
| Height [Metric] | 10.4775 cm |
| Length | 20.0000 in |
| Length [Metric] | 10.2794 cm |
| Material | Nylon |
| NEMA Rating | 5-15R |
| Standard | ANSI (C-73);CSA Certified (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Listed (File E-13399);UL Listed 498 |
| Temperature Rating | -40 to +60 DEG C |
| Type | Duplex Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847720910 |
| UPC 12 | 078477209103 |
| Width | 1.19 in |
| Width [Metric] | 3.0175 cm |
| Wire Size | 14-10 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 AMP |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
