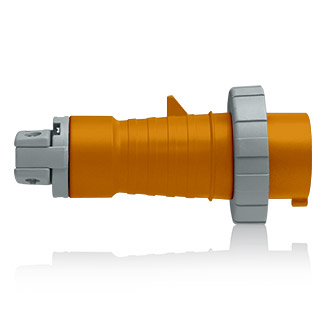

Leviton® 420P12W Watertight Pin And Sleeve Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Orange
Custom_Product_Images_Illustration
Leviton® 420P12W Watertight Pin And Sleeve Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Orange
SKU1276466
MFGR #420P12W
$/ea
Leviton® 420P12W Pin And Sleeve Plug, Watertight, 125/250 VAC, 20 A, 50/60 Hz Frequency, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Orange, 3.11 in Dia x 6.46 in L Dimensions
Leviton® 420P12W Pin And Sleeve Plug, Watertight, 125/250 VAC, 20 A, 50/60 Hz Frequency, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Orange, 3.11 in Dia x 6.46 in L Dimensions
Application Industrial Applications ARRA Compliant C Buy American Compliant C Catalog Number 420P12W Connection Screw Terminal Country of Origin CZ Currency USD Environmental Conditions Flammability (Rated V-2 per UL94);Humidity (32??C, 93%, 168 Hours) EU RoHS Indicator C Gross Volume Per Pack 90.00 Gross Volume per Pack Metric 2.55 Gross Weight Per Pack 0.7400 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Hazard Class N Height 3.1880 in Height [Metric] 8.0975 cm Length 6.5000 in Length [Metric] 16.5100 cm Material Valox 357 (Housing) Mounting Cable Number Of Poles 3 Replaced Catalog Number 420P12WLEV Size 3.11 Diameter x 6.46 L in Standard CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) Type Watertight Plug UNSPSC 39121404.0 UPC 11 07847783810 UPC 12 078477838105 Width 3.19 in Width [Metric] 8.0975 cm Wire Size 14-12 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Orange Number of Wires 4 Voltage Rating 125;250 VAC Industrial Applications Certified for current interrupting at full-rated current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 420P12W |
| Connection | Screw Terminal |
| Country of Origin | CZ |
| Currency | USD |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Humidity (32??C, 93%, 168 Hours) |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 90.00 |
| Gross Volume per Pack Metric | 2.55 |
| Gross Weight Per Pack | 0.7400 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 3.1880 in |
| Height [Metric] | 8.0975 cm |
| Length | 6.5000 in |
| Length [Metric] | 16.5100 cm |
| Material | Valox 357 (Housing) |
| Mounting | Cable |
| Number Of Poles | 3 |
| Replaced Catalog Number | 420P12WLEV |
| Size | 3.11 Diameter x 6.46 L in |
| Standard | CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) |
| Type | Watertight Plug |
| UNSPSC | 39121404.0 |
| UPC 11 | 07847783810 |
| UPC 12 | 078477838105 |
| Width | 3.19 in |
| Width [Metric] | 8.0975 cm |
| Wire Size | 14-12 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Orange |
| Number of Wires | 4 |
| Voltage Rating | 125;250 VAC |
| Industrial Applications |
| Certified for current interrupting at full-rated current |
