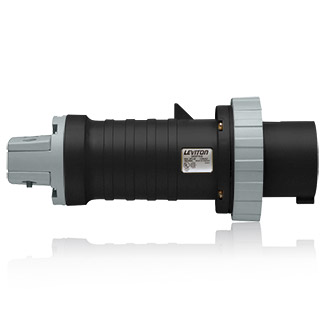

Leviton® 4100P5W Watertight Pin And Sleeve Plug, 600 VAC, 100 A, 3 Poles, 4 Wires, Black
Custom_Product_Images_Illustration
Leviton® 4100P5W Watertight Pin And Sleeve Plug, 600 VAC, 100 A, 3 Poles, 4 Wires, Black
SKU1292121
MFGR #4100P5W
$/ea
Leviton® 4100P5W Pin And Sleeve Plug, Watertight, 600 VAC, 100 A, 50/60 Hz Frequency, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Black, 5 in Dia x 12.3 in L Dimensions
Leviton® 4100P5W Pin And Sleeve Plug, Watertight, 600 VAC, 100 A, 50/60 Hz Frequency, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Black, 5 in Dia x 12.3 in L Dimensions
Application Industrial Applications ARRA Compliant C Buy American Compliant C Catalog Number 4100P5W Connection Screw Terminal Country of Origin CZ Currency USD Dimensions 5 in Dia x 12.3 in L Enclosure IP67/IP69K Environmental Conditions Flammability (Rated V-2 per UL94);Humidity (32?C, 93%, 168 Hours) EU RoHS Indicator C Frequency Rating 50/60 Grade Industrial Gross Volume Per Pack 25.00 Gross Volume per Pack Metric 0.71 Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Hazard Class N Height 5.2500 in Height [Metric] 13.3350 cm Length 13.2500 in Length [Metric] 33.6550 cm Material Valox® 357 Mounting Cable Number Of Poles 3 Replaced Catalog Number 4100P5WLEV Size 5 Diameter x 12.3 L IN Standard CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) Temperature Rating -40 to 60 Terminal Type Screw Type Watertight UNSPSC 39121404.0 UPC 11 07847783889 UPC 12 078477838891 Width 5.25 in Width [Metric] 13.3350 cm Wire Size 3-1 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 100 A Color Black Number of Wires 4 Voltage Rating 600 VAC Industrial Applications Certified for current interrupting at full-rated current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 4100P5W |
| Connection | Screw Terminal |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 5 in Dia x 12.3 in L |
| Enclosure | IP67/IP69K |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Humidity (32?C, 93%, 168 Hours) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 |
| Grade | Industrial |
| Gross Volume Per Pack | 25.00 |
| Gross Volume per Pack Metric | 0.71 |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 5.2500 in |
| Height [Metric] | 13.3350 cm |
| Length | 13.2500 in |
| Length [Metric] | 33.6550 cm |
| Material | Valox® 357 |
| Mounting | Cable |
| Number Of Poles | 3 |
| Replaced Catalog Number | 4100P5WLEV |
| Size | 5 Diameter x 12.3 L IN |
| Standard | CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) |
| Temperature Rating | -40 to 60 |
| Terminal Type | Screw |
| Type | Watertight |
| UNSPSC | 39121404.0 |
| UPC 11 | 07847783889 |
| UPC 12 | 078477838891 |
| Width | 5.25 in |
| Width [Metric] | 13.3350 cm |
| Wire Size | 3-1 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 100 A |
| Color | Black |
| Number of Wires | 4 |
| Voltage Rating | 600 VAC |
| Industrial Applications |
| Certified for current interrupting at full-rated current |
