Leviton®

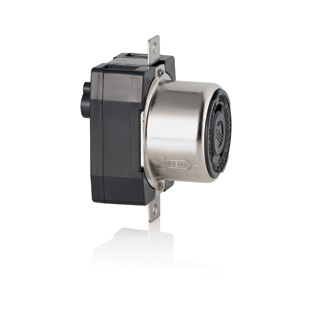

Leviton® 3771 Single Locking Receptacle, 600 VAC/250 VDC, 50 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton®
Leviton® 3771 Single Locking Receptacle, 600 VAC/250 VDC, 50 A, 2 Poles, 3 Wires, Black
SKU342586
MFGR #3771
$/ea
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Amperage Rating 50 A Application Commercial ARRA Compliant C Brand Leviton® Buy American Compliant C Catalog Number 3771 Color Black Connection Back Wired;Side Wired Cord Diameter 0.68 to 1.2 in Country of Origin MX Currency USD Depth 1.14 in Dielectric Strength 2000 (Min.) V Dimensions 3.69 in H x 2.13 in W x 1.14 in D Environmental Conditions Flammability (Rated V-2 per UL94, Rated V-0 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 7.0500 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Height 7.2500 in Height [Metric] 8.2550 cm Length 13.5000 in Length [Metric] 10.1600 cm Manufacturer Leviton Manufacturing Co., Inc. Material Nylon Mounting Box NEMA Rating Non-Nema Number Of Poles 2 Number of Wires 3 Size 3.69 H x 2.13 W x 1.14 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-81290, File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399);UL Listed 498 (File E13399);RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42/LR81290/152105Federal Specification WC596/E13399UL 498 File No. E13399UL94 V-0/V-2 Flammability Rating Stock Status NONSTOCK Sub Brand Black & White Temperature Rating -40 to +75 °C Terminal Type Back/Side Wired Type LOCKING RECEPTACLE UNSPSC 39121406 UPC 11 07847780438 UPC 12 078477804384 Voltage Rating 250//600 VAC//VDC Width 2.25 in Width [Metric] 5.7150 cm Wire Size 10-4 AWG (Terminal Accommodation);.680-1.200 IN (Cord Grip Range) Commercial Locking Devices Box mounting Non-NEMA rated 10 to 4 AWG terminal accommodation, 0 to 1.2 in cord grip range wire size Flush mount Flush mounting Non-NEMA configuration 10 to 4 AWG terminal accommodation 10 to 4 AWG
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 50 A |
| Application | Commercial |
| ARRA Compliant | C |
| Brand | Leviton® |
| Buy American Compliant | C |
| Catalog Number | 3771 |
| Color | Black |
| Connection | Back Wired;Side Wired |
| Cord Diameter | 0.68 to 1.2 in |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.14 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 3.69 in H x 2.13 in W x 1.14 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94, Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 7.0500 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Height | 7.2500 in |
| Height [Metric] | 8.2550 cm |
| Length | 13.5000 in |
| Length [Metric] | 10.1600 cm |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Material | Nylon |
| Mounting | Box |
| NEMA Rating | Non-Nema |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Size | 3.69 H x 2.13 W x 1.14 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-81290, File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399);UL Listed 498 (File E13399);RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42/LR81290/152105Federal Specification WC596/E13399UL 498 File No. E13399UL94 V-0/V-2 Flammability Rating |
| Stock Status | NONSTOCK |
| Sub Brand | Black & White |
| Temperature Rating | -40 to +75 °C |
| Terminal Type | Back/Side Wired |
| Type | LOCKING RECEPTACLE |
| UNSPSC | 39121406 |
| UPC 11 | 07847780438 |
| UPC 12 | 078477804384 |
| Voltage Rating | 250//600 VAC//VDC |
| Width | 2.25 in |
| Width [Metric] | 5.7150 cm |
| Wire Size | 10-4 AWG (Terminal Accommodation);.680-1.200 IN (Cord Grip Range) |
| Commercial |
| Locking Devices |
| Box mounting |
| Non-NEMA rated |
| 10 to 4 AWG terminal accommodation, 0 to 1.2 in cord grip range wire size |
| Flush mount |
| Flush mounting |
| Non-NEMA configuration |
| 10 to 4 AWG terminal accommodation |
| 10 to 4 AWG |
