Leviton®

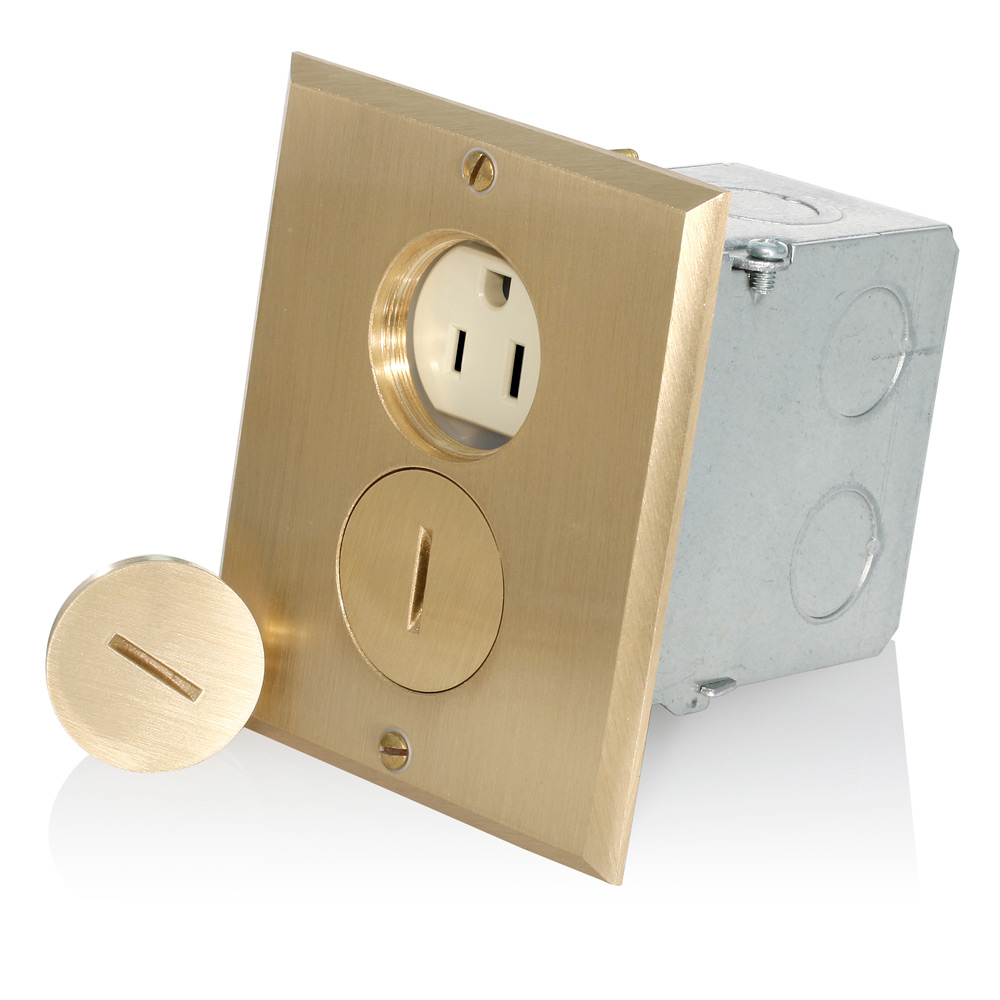

Leviton® 25249-FBA Duplex Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Leviton®
Leviton® 25249-FBA Duplex Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
SKU208730
MFGR #25249-FBA
Your Cost: $60.02/ea
List: For low profile, in-floor receptacle installations, our floor boxes are the perfect fit. Available in both 15 & 20 amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
For low profile, in-floor receptacle installations, our floor boxes are the perfect fit. Available in both 15 & 20 amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Amperage Rating 15 A Application Commercial ARRA Compliant C Brand Leviton® Buy American Compliant C Catalog Number 25249-FBA Color Ivory Connection Back Wired;Side Wired Cord Diameter 5-15R Country of Origin MX Currency USD Depth 4.50 in Dielectric Strength 2000 (Min.) V Dimensions 4-1/2 in H x 3-3/4 in W x 4-1/2 in D V Enclosure Ivory Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Frequency Rating 3 Gross Weight Per Pack 1.6150 lb Gross Weight per Pack Metric 0.73 Gross Weight UOM Metric kg Height 3.1250 in Horsepower 1/2 hp Length 5.2500 in Manufacturer Leviton Manufacturing Co., Inc. Material Thermoplastic Mounting Floor Box NEMA Rating 5-15R Number Of Poles 2 Number of Wires 3 Series Floor Box Duplex Receptacle Size 4.50 H x 3.75 W x 4.50 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File E152105);UL Listed 498 (File E13399) Stock Status NORMALLY STOCKED Temperature Rating -40 to +60 °C Terminal Type Back and Side Wired Type Floor Box Duplex Receptacle UNSPSC 39121406 UPC 11 07847716359 UPC 12 078477163597 Voltage Rating 125 V Width 3.75 in Wire Size 14-10 AWG Commercial Zinc plated steel strap material Self-grounding Brass triple wipe 0.031 THK line contacts Brass-plated ground clips 14 to 10 AWG wire terminal #8-32 brass terminal screws 2000 VAC dielectric strength Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device Tamper resistant receptacles meet national electrical Code® 2014 article 406.12 requirements Plate gasket and rubber O-ring combine to seal out moisture and air-borne particles Single receptacle is ideal for applications that require a dedicated circuit Meets NEC 2014 article 314.27B for floor boxes The flange height of 0.27 in meets Americans with Disabilities Act (ADA) standards for accessible design section 4.3.8
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 15 A |
| Application | Commercial |
| ARRA Compliant | C |
| Brand | Leviton® |
| Buy American Compliant | C |
| Catalog Number | 25249-FBA |
| Color | Ivory |
| Connection | Back Wired;Side Wired |
| Cord Diameter | 5-15R |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.50 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 4-1/2 in H x 3-3/4 in W x 4-1/2 in D V |
| Enclosure | Ivory |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Frequency Rating | 3 |
| Gross Weight Per Pack | 1.6150 lb |
| Gross Weight per Pack Metric | 0.73 |
| Gross Weight UOM Metric | kg |
| Height | 3.1250 in |
| Horsepower | 1/2 hp |
| Length | 5.2500 in |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Material | Thermoplastic |
| Mounting | Floor Box |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | Floor Box Duplex Receptacle |
| Size | 4.50 H x 3.75 W x 4.50 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File E152105);UL Listed 498 (File E13399) |
| Stock Status | NORMALLY STOCKED |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back and Side Wired |
| Type | Floor Box Duplex Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847716359 |
| UPC 12 | 078477163597 |
| Voltage Rating | 125 V |
| Width | 3.75 in |
| Wire Size | 14-10 AWG |
| Commercial |
| Zinc plated steel strap material |
| Self-grounding |
| Brass triple wipe 0.031 THK line contacts |
| Brass-plated ground clips |
| 14 to 10 AWG wire terminal |
| #8-32 brass terminal screws |
| 2000 VAC dielectric strength |
| Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device |
| Tamper resistant receptacles meet national electrical Code® 2014 article 406.12 requirements |
| Plate gasket and rubber O-ring combine to seal out moisture and air-borne particles |
| Single receptacle is ideal for applications that require a dedicated circuit |
| Meets NEC 2014 article 314.27B for floor boxes |
| The flange height of 0.27 in meets Americans with Disabilities Act (ADA) standards for accessible design section 4.3.8 |
