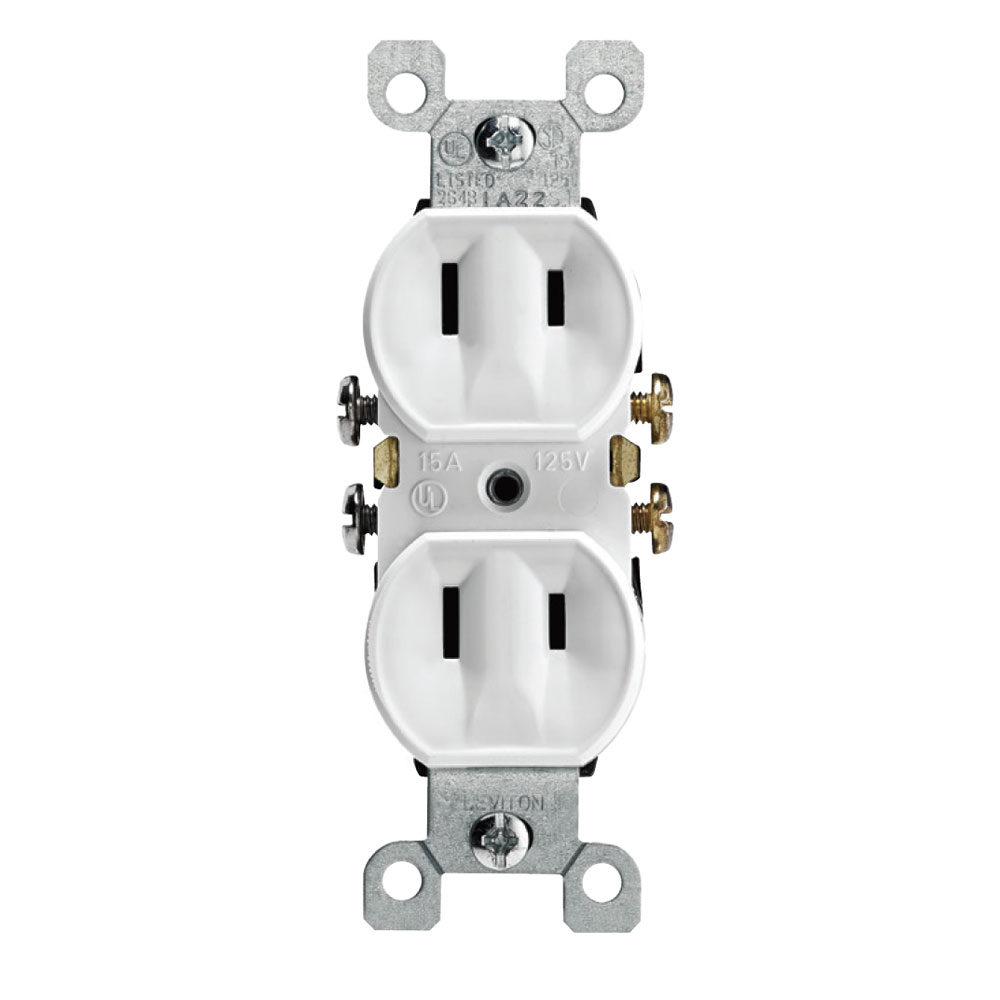

Leviton® 223-W Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 2 Wires, White
Custom_Product_Images_Illustration
Leviton® 223-W Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 2 Wires, White
SKU72878
MFGR #223-W
$/ea
Leviton® Straight Blade Receptacle, Traditional, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15R, Grade: Residential, -40 to 60 deg C, Side Wired Terminal, Thermoplastic, White, 4.06 in H x 1.3 in W x 0.9 in D
Leviton® Straight Blade Receptacle, Traditional, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15R, Grade: Residential, -40 to 60 deg C, Side Wired Terminal, Thermoplastic, White, 4.06 in H x 1.3 in W x 0.9 in D
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 223-W Connection Side Wired Country of Origin US Currency USD Depth 0.90 in Dimensions 46 in H x 1.33 in W x 0.9 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 22.8000 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 10.8130 in Length 19.0000 in Material Thermoplastic Mounting Wallplate NEMA Rating 1-15R Number Of Poles 2 Size 46 H x 1.33 W x 0.90 D in Standard NOM Certified (057);UL Listed 498;CO\ALR UL Listed (1561);CSA Certified (LR-406) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNOM 057UL 498/CO/ALR/UL 1561CSA File No. LR406UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847779372 UPC 12 078477793725 Width 1.33 in Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 2 Voltage Rating 125 V Commercial Non Grounding Terminal screws accept up to #12 AWG copper or copper clad wire Quickwire push-in terminals accept 14 AWG solid copper wire only Double-wipe power contacts for maximum conductivity and plug retention Heavy gauge, rust resistant steel mounting strap Shallow design for maximum wiring room Break-OFF plaster ears for best flush alignment Duplex
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 223-W |
| Connection | Side Wired |
| Country of Origin | US |
| Currency | USD |
| Depth | 0.90 in |
| Dimensions | 46 in H x 1.33 in W x 0.9 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 22.8000 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 10.8130 in |
| Length | 19.0000 in |
| Material | Thermoplastic |
| Mounting | Wallplate |
| NEMA Rating | 1-15R |
| Number Of Poles | 2 |
| Size | 46 H x 1.33 W x 0.90 D in |
| Standard | NOM Certified (057);UL Listed 498;CO\ALR UL Listed (1561);CSA Certified (LR-406) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNOM 057UL 498/CO/ALR/UL 1561CSA File No. LR406UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847779372 |
| UPC 12 | 078477793725 |
| Width | 1.33 in |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 2 |
| Voltage Rating | 125 V |
| Commercial |
| Non Grounding |
| Terminal screws accept up to #12 AWG copper or copper clad wire |
| Quickwire push-in terminals accept 14 AWG solid copper wire only |
| Double-wipe power contacts for maximum conductivity and plug retention |
| Heavy gauge, rust resistant steel mounting strap |
| Shallow design for maximum wiring room |
| Break-OFF plaster ears for best flush alignment |
| Duplex |
