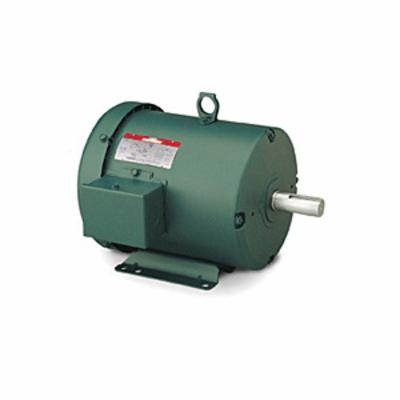

Leeson® 131464.00 131464 Type TF Continuous Duty AC Motor, 5 hp, 208 to 230/460 VAC, 15.5 to 14.4/7.2 A, 60 Hz, 3, 180 Frame
Leeson® 131464.00 131464 Type TF Continuous Duty AC Motor, 5 hp, 208 to 230/460 VAC, 15.5 to 14.4/7.2 A, 60 Hz, 3, 180 Frame
SKUPDW~6586645
MFGR #131464.00
Your Cost: $1,502.20/ea
LEESON® AC Motor, Type TF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, B NEMA Design, 5 hp, 208 to 230/460 VAC, 15.5 to 14.4/7.2 A, 60 Hz, 3, 1760 rpm, 1 Speed, TEFC, 180 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 15.96 in L
LEESON® AC Motor, Type TF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, B NEMA Design, 5 hp, 208 to 230/460 VAC, 15.5 to 14.4/7.2 A, 60 Hz, 3, 1760 rpm, 1 Speed, TEFC, 180 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 15.96 in L
Amperage Rating 15.5 to 14.4/7.2 A Application Type Compressor Motors, Fan & Blower Motors Bearing Type Ball Catalog Number 131464.00 Dimensions 15.96 in L Enclosure Type Totally Enclosed Fan Cooled (TEFC) Frequency Rating 60 Hz Gross Weight Per Pack 87.0000 lb Insulation Class Class F Material Rolled Steel Mounting Type Rigid Number of Speeds 1 Rotation Reversible Service Factor 1 Shaft Size 1-1/8 in Dia Speed 1760 rpm Standards CSA CertifiedUL Listed Temperature Rating 40 °C Type Type TF Continuous Duty UPC 11 69172001733 Stock Status NONSTOCK Brand LEESON® Manufacturer Regal Beloit Corporation Frame 180 Horsepower 5 hp Voltage Rating 208 to 230/460 VAC 4-Pole, B NEMA Design Standard, EPACT and premium efficiency Wattsaver® motor Shielded ball bearings for direct coupled applications Dynamically balanced rotors torques exceed NEMA performance standards Continuous duty Dynamically balanced rotors torques exceed NEMA performance standards 4-pole Tstats (N/C) thermal protector B NEMA design Across the line start method Squirrel cage induction run electrical type J KVA code F4-insulation 83.1% power factor 89.5% standard full load efficiency at 60 Hz Automatic overload protector
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 15.5 to 14.4/7.2 A |
| Application Type | Compressor Motors, Fan & Blower Motors |
| Bearing Type | Ball |
| Catalog Number | 131464.00 |
| Dimensions | 15.96 in L |
| Enclosure Type | Totally Enclosed Fan Cooled (TEFC) |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 87.0000 lb |
| Insulation Class | Class F |
| Material | Rolled Steel |
| Mounting Type | Rigid |
| Number of Speeds | 1 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 1-1/8 in Dia |
| Speed | 1760 rpm |
| Standards | CSA CertifiedUL Listed |
| Temperature Rating | 40 °C |
| Type | Type TF Continuous Duty |
| UPC 11 | 69172001733 |
| Stock Status | NONSTOCK |
| Brand | LEESON® |
| Manufacturer | Regal Beloit Corporation |
| Frame | 180 |
| Horsepower | 5 hp |
| Voltage Rating | 208 to 230/460 VAC |
| 4-Pole, B NEMA Design |
| Standard, EPACT and premium efficiency Wattsaver® motor |
| Shielded ball bearings for direct coupled applications |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| Continuous duty |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| 4-pole |
| Tstats (N/C) thermal protector |
| B NEMA design |
| Across the line start method |
| Squirrel cage induction run electrical type |
| J KVA code |
| F4-insulation |
| 83.1% power factor |
| 89.5% standard full load efficiency at 60 Hz |
| Automatic overload protector |
