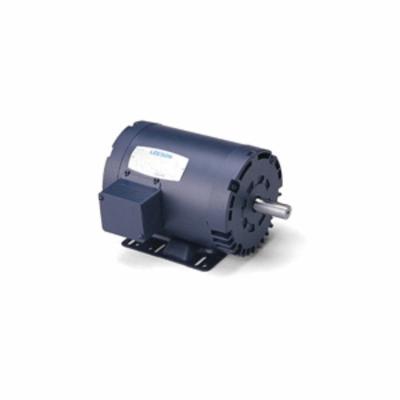

Leeson® 121004.00 121004 Type TD Continuous Duty AC Motor, 1.5 hp, 208 to 230/460 VAC, 5.2 to 5.4/2.7/5.8 to 6/3 A, 50/60 Hz, 3
Leeson® 121004.00 121004 Type TD Continuous Duty AC Motor, 1.5 hp, 208 to 230/460 VAC, 5.2 to 5.4/2.7/5.8 to 6/3 A, 50/60 Hz, 3
SKU500228
MFGR #121004.00
Your Cost: $433.46/ea
List: LEESON® AC Motor, Type TD Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, B NEMA Design, 1.5 hp, 208 to 230/460 VAC, 5.2 to 5.4/2.7/5.8 to 6/3 A, 50/60 Hz, 3, 1750/1450 rpm, 1 Speed, DP, 140 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 12.62 in L
LEESON® AC Motor, Type TD Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, B NEMA Design, 1.5 hp, 208 to 230/460 VAC, 5.2 to 5.4/2.7/5.8 to 6/3 A, 50/60 Hz, 3, 1750/1450 rpm, 1 Speed, DP, 140 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 12.62 in L
Amperage Rating 5.2 to 5.4/2.7/5.8 to 6/3 A Application Type Compressor Motors, Fan & Blower Motors Bearing Type Ball Catalog Number 121004.00 Dimensions 12.62 in L Enclosure Type DP Frequency Rating 50/60 Hz Gross Weight Per Pack 38.0000 lb Insulation Class Class F Material Rolled Steel Mounting Type Rigid Number of Speeds 1 Rotation Reversible Service Factor 1 Shaft Size 7/8 in Dia Speed 1750/1450 rpm Standards CSA CertifiedUL Listed Temperature Rating 40 °C Type Type TD Continuous Duty UPC 11 69172001653 UPC 12 69172001653 Stock Status NONSTOCK Brand LEESON® Manufacturer Regal Beloit Corporation Frame 140 Horsepower 1-1/2 hp Voltage Rating 208 to 230/460 VAC 4-Pole, B NEMA Design Standard, EPACT and premium efficiency Wattsaver® motor Shielded ball bearings for direct coupled applications Dynamically balanced rotors torques exceed NEMA performance standards
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 5.2 to 5.4/2.7/5.8 to 6/3 A |
| Application Type | Compressor Motors, Fan & Blower Motors |
| Bearing Type | Ball |
| Catalog Number | 121004.00 |
| Dimensions | 12.62 in L |
| Enclosure Type | DP |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 38.0000 lb |
| Insulation Class | Class F |
| Material | Rolled Steel |
| Mounting Type | Rigid |
| Number of Speeds | 1 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 7/8 in Dia |
| Speed | 1750/1450 rpm |
| Standards | CSA CertifiedUL Listed |
| Temperature Rating | 40 °C |
| Type | Type TD Continuous Duty |
| UPC 11 | 69172001653 |
| UPC 12 | 69172001653 |
| Stock Status | NONSTOCK |
| Brand | LEESON® |
| Manufacturer | Regal Beloit Corporation |
| Frame | 140 |
| Horsepower | 1-1/2 hp |
| Voltage Rating | 208 to 230/460 VAC |
| 4-Pole, B NEMA Design |
| Standard, EPACT and premium efficiency Wattsaver® motor |
| Shielded ball bearings for direct coupled applications |
| Dynamically balanced rotors torques exceed NEMA performance standards |
