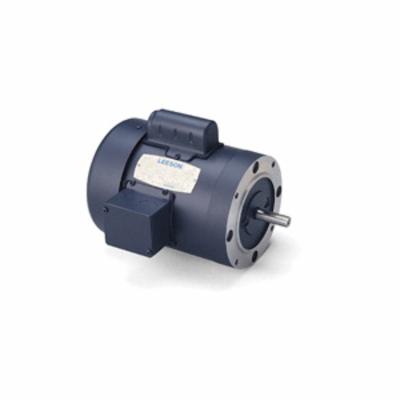

Leeson® 101766.00 101766 Type CF Continuous Duty AC Motor, 0.33 hp, 115/208 to 230 VAC, 6.8/3.0 to 3.4 A, 60 Hz, 1, 48 Frame
Leeson® 101766.00 101766 Type CF Continuous Duty AC Motor, 0.33 hp, 115/208 to 230 VAC, 6.8/3.0 to 3.4 A, 60 Hz, 1, 48 Frame
SKUPDW~6585463
MFGR #101766.00
Your Cost: $654.92/ea
LEESON® AC Motor, Type CF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, N NEMA Design, 0.33 hp, 115/208 to 230 VAC, 6.8/3.0 to 3.4 A, 60 Hz, 1, 1725 rpm, 1 Speed, TEFC, 48 Frame, 5/8 in Dia Shaft, Selective Counter Clockwise, Service Factor: 1.15, Ball Bearing, Round Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.94 in L x 7.67 in W x 7.4 in H
LEESON® AC Motor, Type CF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, N NEMA Design, 0.33 hp, 115/208 to 230 VAC, 6.8/3.0 to 3.4 A, 60 Hz, 1, 1725 rpm, 1 Speed, TEFC, 48 Frame, 5/8 in Dia Shaft, Selective Counter Clockwise, Service Factor: 1.15, Ball Bearing, Round Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.94 in L x 7.67 in W x 7.4 in H
Amperage Rating 6.8/3.0 to 3.4 A Application Type Compressor Motors, Fan & Blower Motors Bearing Type Ball Catalog Number 101766.00 Dimensions 9.94 in L x 7.67 in W x 7.4 in H Enclosure Type Totally Enclosed Fan Cooled (TEFC) Frequency Rating 60 Hz Gross Weight Per Pack 23.0000 lb Insulation Class Class B Material Rolled Steel Mounting Type Round Number of Speeds 1 Rotation Selective CCW Service Factor 1 Shaft Size 5/8 in Dia Speed 1725 rpm Standards CSA Certified, UL Listed Temperature Rating 40 °C Type Type CF Continuous Duty UPC 11 69172000596 Stock Status NONSTOCK Brand LEESON® Manufacturer Regal Beloit Corporation Frame 48 Horsepower 0.33 hp Voltage Rating 115/208 to 230 VAC 4-Pole, N NEMA Design Durable rolled steel construction Meets or exceeds NEMA service factors Double shielded ball bearings Thermally protected ratings Thermally protected ratings 4-pole N NEMA design Across the line start method Cap start induction run electrical type L KVA code B3 insulation 59% power factor 61% standard full load efficiency at 60 Hz
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 6.8/3.0 to 3.4 A |
| Application Type | Compressor Motors, Fan & Blower Motors |
| Bearing Type | Ball |
| Catalog Number | 101766.00 |
| Dimensions | 9.94 in L x 7.67 in W x 7.4 in H |
| Enclosure Type | Totally Enclosed Fan Cooled (TEFC) |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 23.0000 lb |
| Insulation Class | Class B |
| Material | Rolled Steel |
| Mounting Type | Round |
| Number of Speeds | 1 |
| Rotation | Selective CCW |
| Service Factor | 1 |
| Shaft Size | 5/8 in Dia |
| Speed | 1725 rpm |
| Standards | CSA Certified, UL Listed |
| Temperature Rating | 40 °C |
| Type | Type CF Continuous Duty |
| UPC 11 | 69172000596 |
| Stock Status | NONSTOCK |
| Brand | LEESON® |
| Manufacturer | Regal Beloit Corporation |
| Frame | 48 |
| Horsepower | 0.33 hp |
| Voltage Rating | 115/208 to 230 VAC |
| 4-Pole, N NEMA Design |
| Durable rolled steel construction |
| Meets or exceeds NEMA service factors |
| Double shielded ball bearings |
| Thermally protected ratings |
| Thermally protected ratings |
| 4-pole |
| N NEMA design |
| Across the line start method |
| Cap start induction run electrical type |
| L KVA code |
| B3 insulation |
| 59% power factor |
| 61% standard full load efficiency at 60 Hz |
