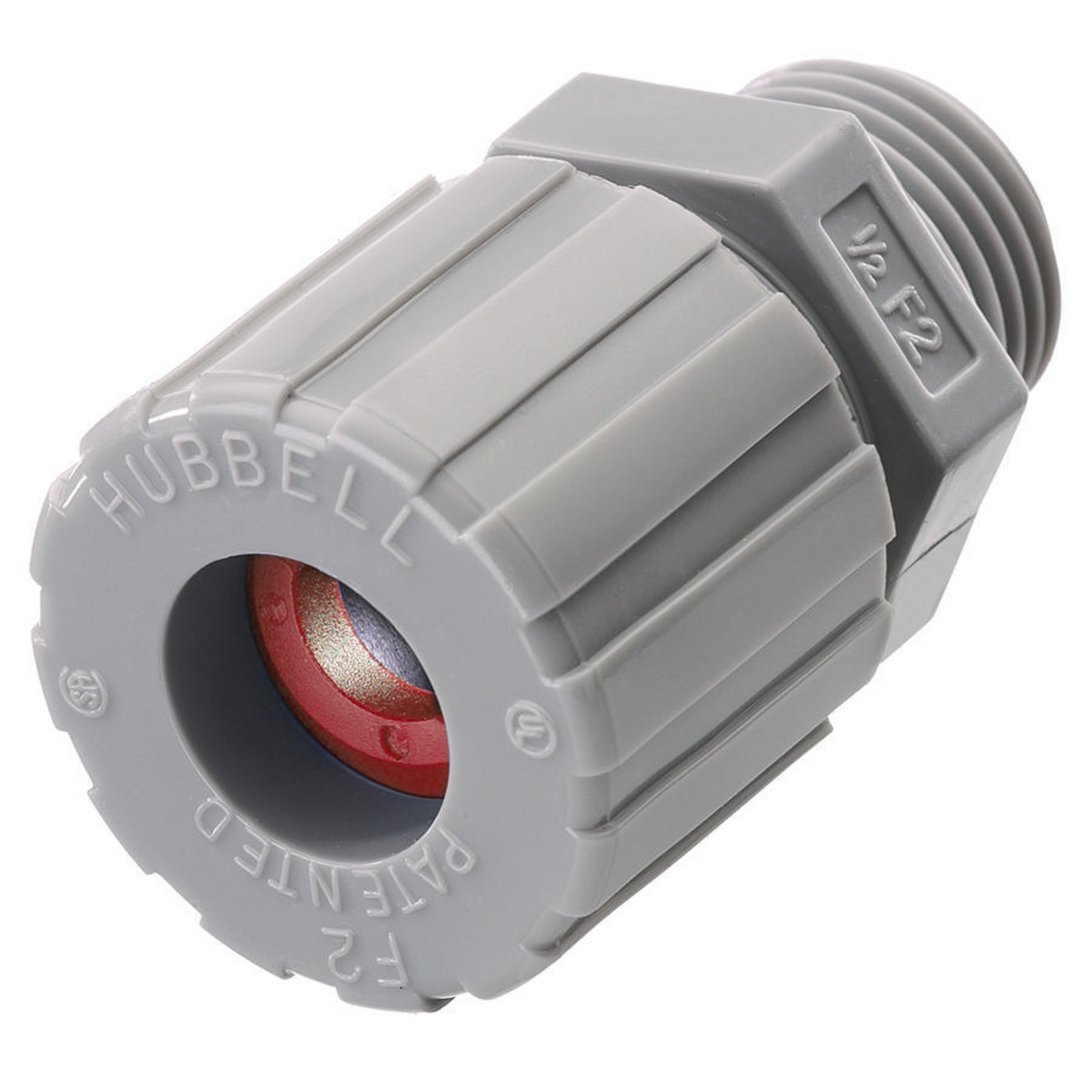

Hubbell Wiring Device-Kellems SHC1021CR SHC Cord Connector, 1/2 in Trade, 0.19 to 0.25 in Cable Openings, Nylon, Smooth
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SHC1021CR SHC Cord Connector, 1/2 in Trade, 0.19 to 0.25 in Cable Openings, Nylon, Smooth
SKU26529
MFGR #SHC1021CR
Your Cost: $11.89/ea
Wiring Device-Kellems Cord Connector, Series: SHC, 1/2 in Trade, 0.19 to 0.25 in Cable Openings, Straight MNPT, Nylon, Smooth, Red, -30 to 225 deg F, 1.32 in OD x 2.03125 in L
Wiring Device-Kellems Cord Connector, Series: SHC, 1/2 in Trade, 0.19 to 0.25 in Cable Openings, Straight MNPT, Nylon, Smooth, Red, -30 to 225 deg F, 1.32 in OD x 2.03125 in L
Application Straight Male- Form 2 ARRA Compliant C Buy American Compliant C Catalog Number SHC1021CR Color Gray Conductor Range 0.19-0.25 in (4.7- 6.3 mm) Connection Type MNPT Straight Country of Origin CN Currency USD Dimensions 1.32 in Dia x 2.03 in L Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.0750 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 1.28 in Height [Metric] 3.2512 cm Length 2.22 in Length [Metric] 5.6388 cm Mounting Locknut or Tapped Opening NEMA Rating NEMA Type 4, 4X, 12 and 13 Number Of Conductors Single Returnable Y Size 1/2" NPT in Standard UL Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedUL94 V-2 Flammability RatingNEC Class I Div 2, Class II Div 1, 2, Class Ill Div 1, 2 Hazardous Locations Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F Type Straight Male UNSPSC 39121431 UPC 11 78358520803 UPC 12 783585208039 Width 1.28 in Width [Metric] 3.2512 cm Stock Status NORMALLY STOCKED Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.19 to 0.25 in Dia Finish Smooth Material Nylon Trade Size 1/2 in Straight Male- Form 2 Standard Product Nylon cord connector resists most common industrial corrosives Provides effective pullout protection Lightweight design Provides effective pullout protection Lightweight design Hubbell® cord connectors are suitable for use in hazardous locations
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male- Form 2 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SHC1021CR |
| Color | Gray |
| Conductor Range | 0.19-0.25 in (4.7- 6.3 mm) |
| Connection Type | MNPT Straight |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.32 in Dia x 2.03 in L |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0750 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 1.28 in |
| Height [Metric] | 3.2512 cm |
| Length | 2.22 in |
| Length [Metric] | 5.6388 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 1/2" NPT in |
| Standard | UL Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedUL94 V-2 Flammability RatingNEC Class I Div 2, Class II Div 1, 2, Class Ill Div 1, 2 Hazardous Locations |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F |
| Type | Straight Male |
| UNSPSC | 39121431 |
| UPC 11 | 78358520803 |
| UPC 12 | 783585208039 |
| Width | 1.28 in |
| Width [Metric] | 3.2512 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.19 to 0.25 in Dia |
| Finish | Smooth |
| Material | Nylon |
| Trade Size | 1/2 in |
| Straight Male- Form 2 |
| Standard Product |
| Nylon cord connector resists most common industrial corrosives |
| Provides effective pullout protection |
| Lightweight design |
| Provides effective pullout protection |
| Lightweight design |
| Hubbell® cord connectors are suitable for use in hazardous locations |
