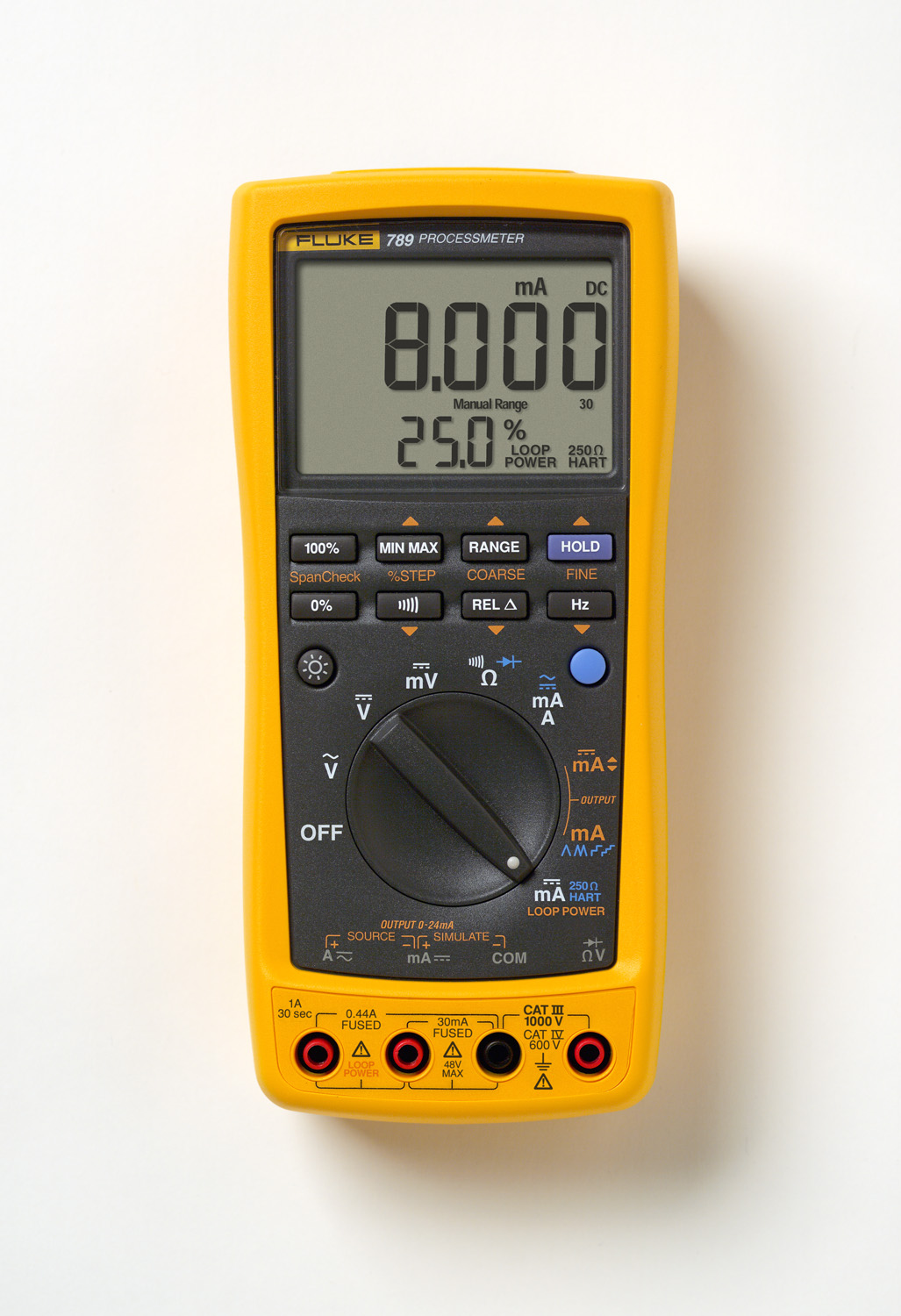

Fluke® FLUKE-789 789 Process Meter, 0 to 1000 VAC/VDC, 0 to 1 A, Multi-Line LCD Display
Custom_Product_Images_Illustration
Fluke® FLUKE-789 789 Process Meter, 0 to 1000 VAC/VDC, 0 to 1 A, Multi-Line LCD Display
SKU181238
MFGR #FLUKE-789
Your Cost: $1,389.14/ea
The Fluke 787 was the first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it's even better, the range is extended with the Fluke 789 the ultimate loop calibration multimeter. The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart® resistor, it also eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less.
The Fluke 787 was the first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it's even better, the range is extended with the Fluke 789 the ultimate loop calibration multimeter. The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart® resistor, it also eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less.
Alternate Catalog Number 1633984 Amperage Rating 1 A Application Measuring electrical parameters, supplying steady or ramping current to test process instruments, and providing a > 24 V loop power supply ARRA Compliant C Battery 1.5 V, 0-15 mA, AA Alkaline V Buy American Compliant C Catalog Number FLUKE-789 Country of Origin US Currency USD Dimensions 7.35 x 3.41 x 1.25 in Diode Test Yes Display Clear LCD with backlight; 4,000 counts (30,000 counts for dc current); overall larger display Display Type Multi-Line LCD Enclosure Hard Plastic EU RoHS Indicator U Frequency Rating 19.999k Hz Gross Weight Per Pack 0.0830 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9026204000 Height 2.52 in Height [Metric] 6.4008 cm Length 11.77 in Length [Metric] 29.8958 cm Loop Amperage Rating 0 to 1 A Loop Voltage Rating 0 to 1000 VAC/VDC Model FLUKE 789 Resistance To 40 MO Ohm Size 7.35 in L x 3.41 in W x 1.25 in H Standard Electrical Safety: Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92; Overvoltage category: IEC 1010-1 CAT III 1000 V, IEC 1010-1 CAT IV 600 V Standards EN61010-1 CAT III, EN61010-1 CAT IV, ANSI/ISA S82.01-1994, CAN/CSA C22.2 NO 1010.1-92, UL 950 Z Type Digital Multimeter UNSPSC 41113630 UPC 11 09596911219 UPC 12 095969112192 Voltage Rating 1,414k//1,000 VAC//VDC Width 4.41 in Width [Metric] 11.2014 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Measuring electrical parameters, supplying steady or ramping current to test process instruments, and providing a > 24 V loop power supply HART mode setting with loop power (adds 250 Ohm resistor) 100% larger dual display 1200 Ohm drive capability on mA source Enhanced backlight with two brightness settings 0 - 100% mA span check buttons to toggle between 4 and 20 mA Externally accessible fuses for easy replacement Precision 1000 V, 440 mA true rms digital multimeter Diode test and continuity beeper Simultaneous mA and % of scale readout 20 mA DC current source/loop calibrator/simulator, 1000 Volt EN61010-1 CAT III standards and 600 Volt EN61010-1 CAT IV Manual step (100%, 25%, coarse, fine) plus auto step and auto ramp, beeps for resistance less than 100 Ohm with accuracy (0.1% rdg + 1 LSD ( VDC)) DC voltage range - 400 mV, 4 V, 40 V, 400 V, 1000 V with accuracy of +/- (0.1% Rdg + 1 LSD) AC voltage range- 400 mV, 4 V, 40 V, 400 V, 1000 V with accuracy of +/-(0.7 % Rdg+ 4 LSD) DC current range - 30 mA with accuracy of +/-(0.5% + 2 LSD), 1 A with accuracy of +/-( 0.2% rdg + 2 LSD) AC current range- 0 to 1 A with accuracy of +/- ( 1 % Rdg + 2 LSD) Resistance range- 400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm with accuracy of +/-(0.2% + 1 LSD) Frequency range 199.99 Hz, 1999.9 Hz, 19.999 kHz with accuracy of +/-(0.005% + 1 LSD) 140 hrs typical (measurement), 10 hrs typical (sourcing 20 mA) Clear LCD with backlight, 4,000 count (30,000 count for DC current), overall larger display
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 1633984 |
| Amperage Rating | 1 A |
| Application | Measuring electrical parameters, supplying steady or ramping current to test process instruments, and providing a > 24 V loop power supply |
| ARRA Compliant | C |
| Battery | 1.5 V, 0-15 mA, AA Alkaline V |
| Buy American Compliant | C |
| Catalog Number | FLUKE-789 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7.35 x 3.41 x 1.25 in |
| Diode Test | Yes |
| Display | Clear LCD with backlight; 4,000 counts (30,000 counts for dc current); overall larger display |
| Display Type | Multi-Line LCD |
| Enclosure | Hard Plastic |
| EU RoHS Indicator | U |
| Frequency Rating | 19.999k Hz |
| Gross Weight Per Pack | 0.0830 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9026204000 |
| Height | 2.52 in |
| Height [Metric] | 6.4008 cm |
| Length | 11.77 in |
| Length [Metric] | 29.8958 cm |
| Loop Amperage Rating | 0 to 1 A |
| Loop Voltage Rating | 0 to 1000 VAC/VDC |
| Model | FLUKE 789 |
| Resistance | To 40 MO Ohm |
| Size | 7.35 in L x 3.41 in W x 1.25 in H |
| Standard | Electrical Safety: Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92; Overvoltage category: IEC 1010-1 CAT III 1000 V, IEC 1010-1 CAT IV 600 V |
| Standards | EN61010-1 CAT III, EN61010-1 CAT IV, ANSI/ISA S82.01-1994, CAN/CSA C22.2 NO 1010.1-92, UL 950 Z |
| Type | Digital Multimeter |
| UNSPSC | 41113630 |
| UPC 11 | 09596911219 |
| UPC 12 | 095969112192 |
| Voltage Rating | 1,414k//1,000 VAC//VDC |
| Width | 4.41 in |
| Width [Metric] | 11.2014 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Measuring electrical parameters, supplying steady or ramping current to test process instruments, and providing a > 24 V loop power supply |
| HART mode setting with loop power (adds 250 Ohm resistor) |
| 100% larger dual display |
| 1200 Ohm drive capability on mA source |
| Enhanced backlight with two brightness settings |
| 0 - 100% mA span check buttons to toggle between 4 and 20 mA |
| Externally accessible fuses for easy replacement |
| Precision 1000 V, 440 mA true rms digital multimeter |
| Diode test and continuity beeper |
| Simultaneous mA and % of scale readout |
| 20 mA DC current source/loop calibrator/simulator, 1000 Volt EN61010-1 CAT III standards and 600 Volt EN61010-1 CAT IV |
| Manual step (100%, 25%, coarse, fine) plus auto step and auto ramp, beeps for resistance less than 100 Ohm with accuracy (0.1% rdg + 1 LSD ( VDC)) |
| DC voltage range - 400 mV, 4 V, 40 V, 400 V, 1000 V with accuracy of +/- (0.1% Rdg + 1 LSD) |
| AC voltage range- 400 mV, 4 V, 40 V, 400 V, 1000 V with accuracy of +/-(0.7 % Rdg+ 4 LSD) |
| DC current range - 30 mA with accuracy of +/-(0.5% + 2 LSD), 1 A with accuracy of +/-( 0.2% rdg + 2 LSD) |
| AC current range- 0 to 1 A with accuracy of +/- ( 1 % Rdg + 2 LSD) |
| Resistance range- 400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm with accuracy of +/-(0.2% + 1 LSD) |
| Frequency range 199.99 Hz, 1999.9 Hz, 19.999 kHz with accuracy of +/-(0.005% + 1 LSD) |
| 140 hrs typical (measurement), 10 hrs typical (sourcing 20 mA) |
| Clear LCD with backlight, 4,000 count (30,000 count for DC current), overall larger display |
