Fluke®

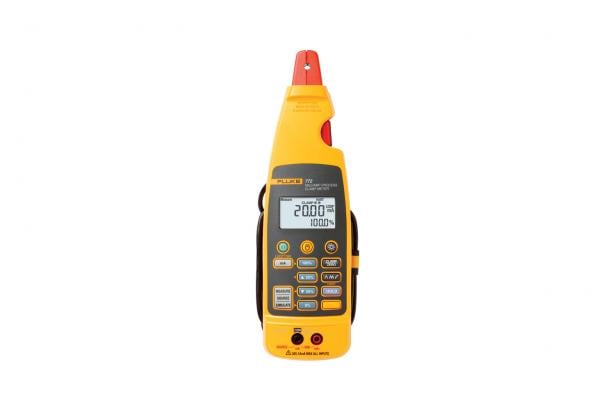

Fluke® FLUKE-772 Milliamp Process Clamp Meter, Backlight Display
Custom_Product_Images_Illustration
Fluke®
Fluke® FLUKE-772 Milliamp Process Clamp Meter, Backlight Display
SKU497375
MFGR #FLUKE-772
Your Cost: $1,441.99/ea
Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 772 mA Clamp Meter expand upon the capabilities of the popular 771 mA Clamp Meter, adding loop power and mA sourcing to the troubleshooting and process calibration capabilities in all Fluke mA clamp meters.
Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 772 mA Clamp Meter expand upon the capabilities of the popular 771 mA Clamp Meter, adding loop power and mA sourcing to the troubleshooting and process calibration capabilities in all Fluke mA clamp meters.
Alternate Catalog Number 3362352 Amperage Rating 100m A Application Measure output signals without breaking the loop or bringing down the system ARRA Compliant C Buy American Compliant C Catalog Number FLUKE-772 Country of Origin CN Currency USD Dimensions 11.61 in L x 5.91 in W x 2.95 in H Enclosure Hard Plastic EU RoHS Indicator U Gross Weight Per Pack 1.3300 lb Gross Weight per Pack Metric 0.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9026204000 Height 2.87 in Height [Metric] 7.2898 cm Length 12.48 in Length [Metric] 31.6992 cm Material Plastic Model Fluke 772 Operating Temperature -10 to 50 °C Power Source (4) AA 1.5 V Alkaline Battery Repeatability Dual backlit display with both mA measurement and percent of 4 to 20 mA span Resolution Range: 0 to 20.99 mA, Accuracy: 0.2% + 2 counts; Range: 21.0 mA to 100.0 mA, Accuracy: 1% + 5 counts Standard EMI/RFI: Meets EN61326-1, Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. Standards CE Certified, FCC Certified, Meets EN61326-1, N10140 Registered Type Clamp Meter UNSPSC 41111905 UPC 11 09596947581 UPC 12 095969475815 Width 5.87 in Width [Metric] 14.9098 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Display Type Backlit Electrical Ratings 0 to 100 Measure output signals without breaking the loop or bringing down the system Hard plastic enclosure type Measurement spotlight illuminates hard to see wires in dark enclosures Best in class 0.2 % accuracy Dual backlit display with both mA measurement and percent of 4 to 20 mA span Measure 4 to 20 mA signals without "breaking the loop" Detachable clamp with extension cable for measurements in tight locations Measure 10 to 50 mA signals in older control systems using the 99.9 mA range Automatically change the 4 to 20 mA output for remote testing Power saving features, auto-off, backlight timeout extend battery life Hold function captures and displays changing measurements -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, random 2 g, 5 to 500 Hz vibration,1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms power, battery life Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3362352 |
| Amperage Rating | 100m A |
| Application | Measure output signals without breaking the loop or bringing down the system |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | FLUKE-772 |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 11.61 in L x 5.91 in W x 2.95 in H |
| Enclosure | Hard Plastic |
| EU RoHS Indicator | U |
| Gross Weight Per Pack | 1.3300 lb |
| Gross Weight per Pack Metric | 0.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9026204000 |
| Height | 2.87 in |
| Height [Metric] | 7.2898 cm |
| Length | 12.48 in |
| Length [Metric] | 31.6992 cm |
| Material | Plastic |
| Model | Fluke 772 |
| Operating Temperature | -10 to 50 °C |
| Power Source | (4) AA 1.5 V Alkaline Battery |
| Repeatability | Dual backlit display with both mA measurement and percent of 4 to 20 mA span |
| Resolution | Range: 0 to 20.99 mA, Accuracy: 0.2% + 2 counts; Range: 21.0 mA to 100.0 mA, Accuracy: 1% + 5 counts |
| Standard | EMI/RFI: Meets EN61326-1, Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. |
| Standards | CE Certified, FCC Certified, Meets EN61326-1, N10140 Registered |
| Type | Clamp Meter |
| UNSPSC | 41111905 |
| UPC 11 | 09596947581 |
| UPC 12 | 095969475815 |
| Width | 5.87 in |
| Width [Metric] | 14.9098 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Display Type | Backlit |
| Electrical Ratings | 0 to 100 |
| Measure output signals without breaking the loop or bringing down the system |
| Hard plastic enclosure type |
| Measurement spotlight illuminates hard to see wires in dark enclosures |
| Best in class 0.2 % accuracy |
| Dual backlit display with both mA measurement and percent of 4 to 20 mA span |
| Measure 4 to 20 mA signals without "breaking the loop" |
| Detachable clamp with extension cable for measurements in tight locations |
| Measure 10 to 50 mA signals in older control systems using the 99.9 mA range |
| Automatically change the 4 to 20 mA output for remote testing |
| Power saving features, auto-off, backlight timeout extend battery life |
| Hold function captures and displays changing measurements |
| -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, random 2 g, 5 to 500 Hz vibration,1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms power, battery life |
| Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement |
| 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range |
