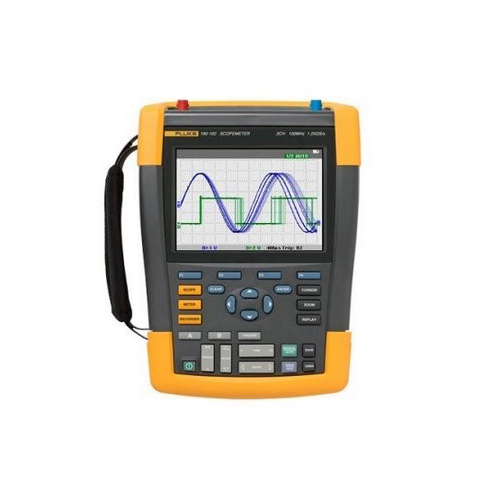

Fluke® FLUKE-190-102/AM/S SCOPE M TEST
Oscilloscopes
964476
MFG #: FLUKE-190-102/AM/S
Fluke®
4399.99000
/ ea
Scope Meter Test Tool, Bandwidth: 100 MHZ, Accuracy: Plus/Minus (2.1 PCT Of Reading Plus 0.04 X Range/Div) At 5 MILV/Div - 100 V/Div, Resolution: 200 MS - 4.8 S, Display: 153 MM Full Color LCD With Fast Update Rate, 5000 Count, Rise Time: 3.5 NS, Channel: 2, Sensitivity: Input: 2 MILV - 100 V/DIV, Interface Type: (2) USB Port, Battery: Rechargeable Double Capacity, Lithium-Ion, BP290 2400 MILAMP-HR, Trigger: Selective, Enclosure: IP51-?, Dimensions: 270 MM Length X 190 MM Width X 70 MM Height, Sample Rate: 125 MS/S, Glitch Capture: 8 NS, Memory: Screen Plus Setup: 30, CAT III 1000V, CAT IV 600V
- Brochure URL - 11095_BRO_3801594_6120_ENG_C_W.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_07aefbbca7d6af2c3063de029ef34fcdfa25f024fc8754fc742f09a861cc22fb.pdf(Catalog URL)
- http://www.fluke.com(Seller Home Page URL)
- Spec Sheet URL - 11095_SPE_3801685_6120_ENG_D_W.pdf(Spec Sheet URL)
- Video - http://download.fluke.com/video-SCOPE/Scopemeter_Series_II_video_series/Scopementer_Serie...(Video)
- Warranty URL - 11095_WAR_FLUKE_Warranties_2014.pdf(Warranty URL)
- Features
| Two electrically isolated inputs, 100 MHZ bandwidth model 1.25 GS/S; Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details ; Dedicated 5000 count digital multimeter in 2-channel models, connect-and-view continuous auto |
| Enclosure: IP51 |
| Dimensions: 270 mm L x 190 mm W x 70 mm H |
| Accuracy: 100 V |
