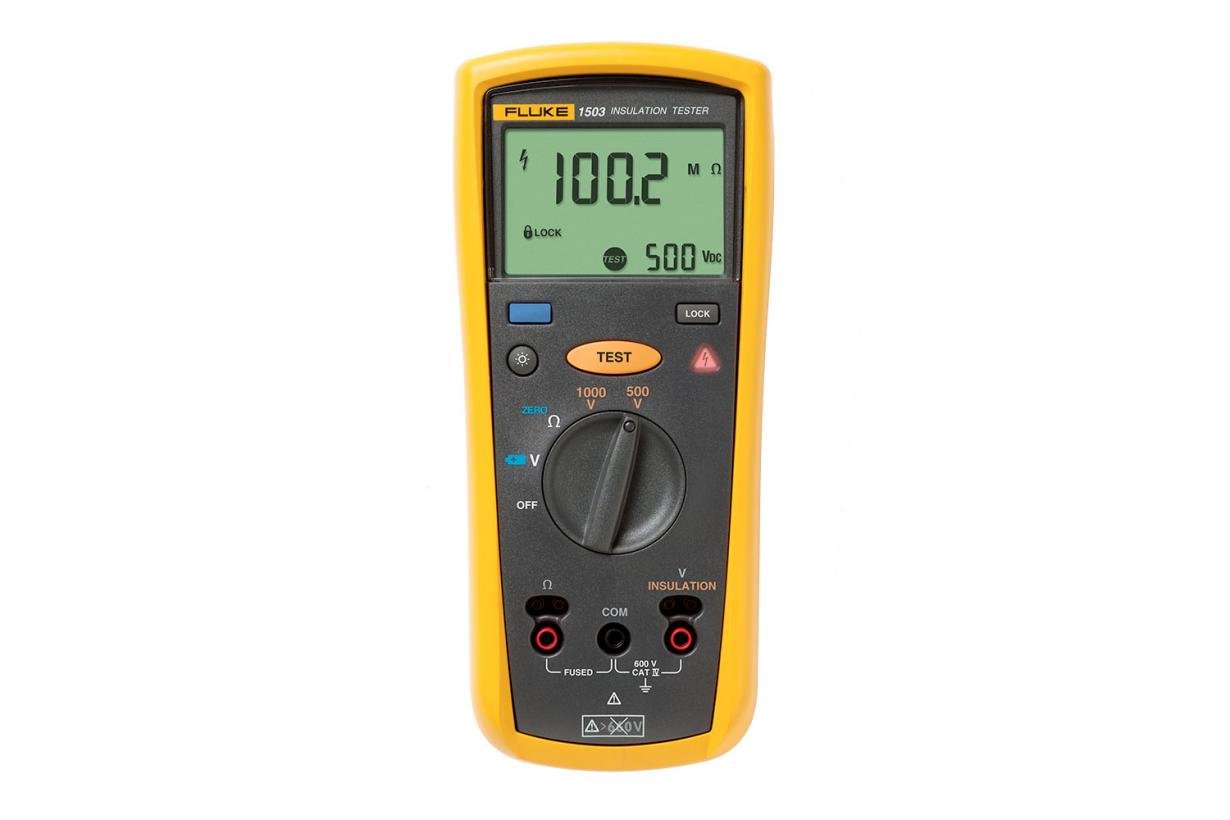

Fluke® FLUKE-1503 Insulation Tester, 0.1 to 600 VAC/VDC, 2 GOhm, +/-(2% + 3 V) Accuracy, Graphic to Backlit Display
Custom_Product_Images_Illustration
Fluke® FLUKE-1503 Insulation Tester, 0.1 to 600 VAC/VDC, 2 GOhm, +/-(2% + 3 V) Accuracy, Graphic to Backlit Display
SKU501407
MFGR #FLUKE-1503
Your Cost: $757.11/ea
Overview Features Specifications Models and Accessories More Info The Fluke 1507 and 1503 Insulation Testers are compact, rugged, reliable, and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications.
Overview Features Specifications Models and Accessories More Info The Fluke 1507 and 1503 Insulation Testers are compact, rugged, reliable, and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications.
Alternate Catalog Number 2427883 Amperage Rating 200 mA Application Troubleshooting, commissioning, and preventative maintenance ARRA Compliant C Buy American Compliant C Catalog Number FLUKE-1503 Country of Origin UKN Currency USD Dimensions 8 x 4 x 2 in Enclosure Hard Plastic Enclosure Type IP40 EU RoHS Indicator U Frequency Response 50 Hz to 400 Hz ± (% of Rdg + Digits), ± (2 % + 3) Hz Gross Weight Per Pack 1.3000 lb Gross Weight per Pack Metric 0.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9030330040 Height 2.95 in Height [Metric] 7.4930 cm Interface Button/Switch/Plug-In Interface Type Buttons, switch, plug-ins Length 11.77 in Length [Metric] 29.8958 cm Model FLUKE 1503 Power Source AA Alkaline Battery Resistance Range 0.01 O to 20.00 kO Ohm Resolution 0.1 V Standard Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV) Type Insulation Resistance Tester UNSPSC 41113624 UPC 11 09596928866 UPC 12 095969288668 Width 5.91 in Width [Metric] 15.0114 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Display Type Graphic to Backlight Resistance 0.01 Ohm to 20 kOhm Safety Rating Cat IV 600 V Voltage Rating 600 V Troubleshooting, commissioning, and preventative maintenance Fluke® 1503 insulation tester is compact, rugged, reliable and easy to use With its multiple test voltages, it is ideal for many troubleshooting commissioning and preventative maintenance applications Additional features, such as the remote probe on this tool, saves both time and money when performing tests Insulation test range 0.1 to 2000 MOhm Insulation test voltages 500 VAC, 1000 VAC Remote test probe -20 to 55 deg C temperature -20 to 55 deg C temperature rating, IP rating IP40
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2427883 |
| Amperage Rating | 200 mA |
| Application | Troubleshooting, commissioning, and preventative maintenance |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | FLUKE-1503 |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 8 x 4 x 2 in |
| Enclosure | Hard Plastic |
| Enclosure Type | IP40 |
| EU RoHS Indicator | U |
| Frequency Response | 50 Hz to 400 Hz ± (% of Rdg + Digits), ± (2 % + 3) Hz |
| Gross Weight Per Pack | 1.3000 lb |
| Gross Weight per Pack Metric | 0.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9030330040 |
| Height | 2.95 in |
| Height [Metric] | 7.4930 cm |
| Interface | Button/Switch/Plug-In |
| Interface Type | Buttons, switch, plug-ins |
| Length | 11.77 in |
| Length [Metric] | 29.8958 cm |
| Model | FLUKE 1503 |
| Power Source | AA Alkaline Battery |
| Resistance Range | 0.01 O to 20.00 kO Ohm |
| Resolution | 0.1 V |
| Standard | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV) |
| Type | Insulation Resistance Tester |
| UNSPSC | 41113624 |
| UPC 11 | 09596928866 |
| UPC 12 | 095969288668 |
| Width | 5.91 in |
| Width [Metric] | 15.0114 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Display Type | Graphic to Backlight |
| Resistance | 0.01 Ohm to 20 kOhm |
| Safety Rating | Cat IV 600 V |
| Voltage Rating | 600 V |
| Troubleshooting, commissioning, and preventative maintenance |
| Fluke® 1503 insulation tester is compact, rugged, reliable and easy to use |
| With its multiple test voltages, it is ideal for many troubleshooting commissioning and preventative maintenance applications |
| Additional features, such as the remote probe on this tool, saves both time and money when performing tests |
| Insulation test range 0.1 to 2000 MOhm |
| Insulation test voltages 500 VAC, 1000 VAC |
| Remote test probe |
| -20 to 55 deg C temperature |
| -20 to 55 deg C temperature rating, IP rating IP40 |
