Fluke® FLK-050-CLKT C - RANGE INFRARED
Infrared Windows
631056
MFG #: FLK-050-CLKT
Fluke®
319.99000
/ ea

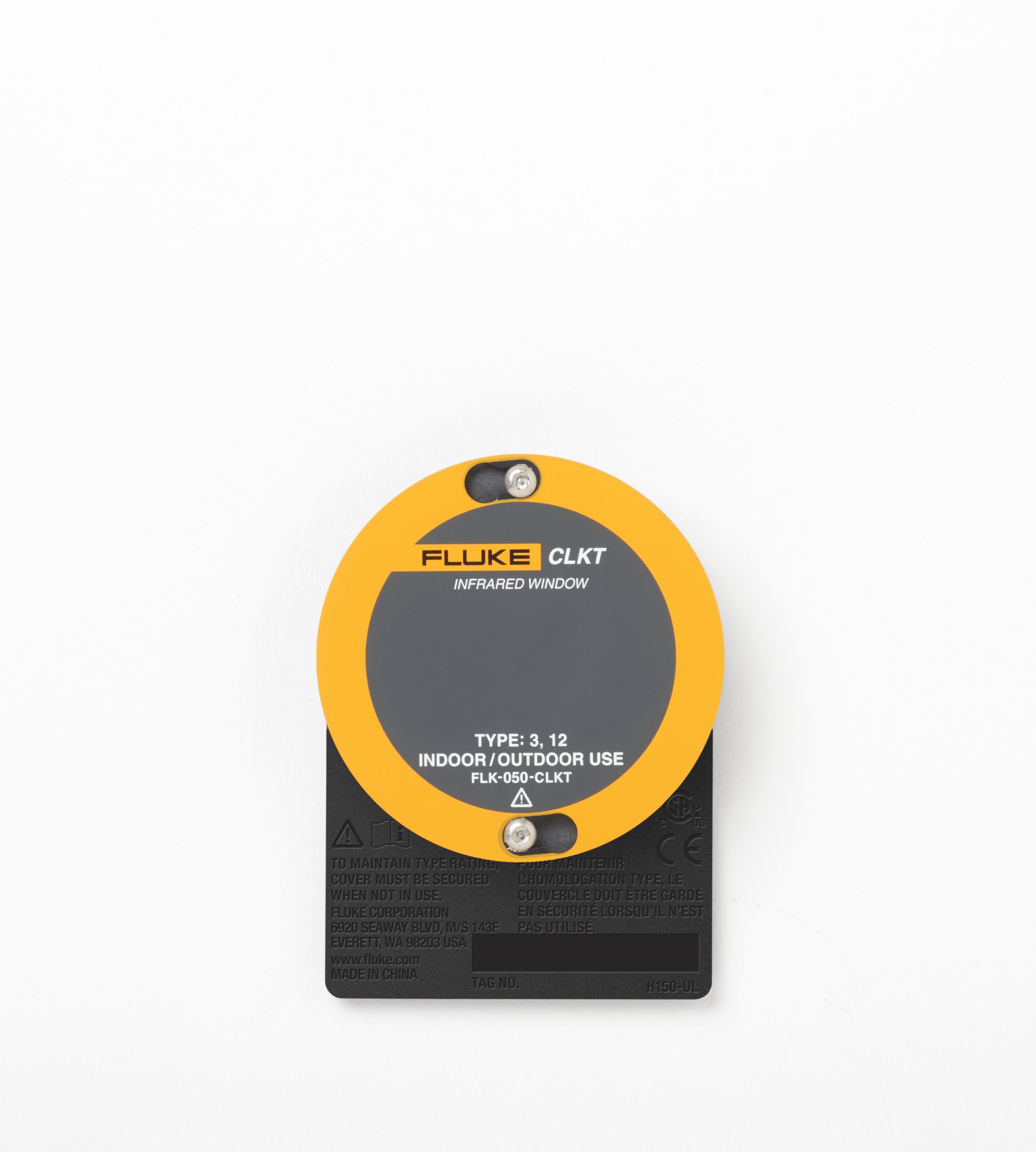

C Range Infrared Window With Kwik Twist, Size: 2 IN, Viewing Aperture Diameter: 43 MM, Viewing Aperture Area: 1452 SQ-MM, Thickness: 2 MM, Maximum Temperature: Gaskets: 250 DEG C, Body: 659 DEG C, Optic: 1400 DEG C, Finish: CLIRVU Coating, NEMA Rating: Type 3/12, Enclosure: IP65, Pull-Out Strength: Up To 1388 LB, UL Listed, CSA Certified, ANSI C37.20.7, EEMACS 14-1, IEC 62271, IEC60068-2-6, IEC60068-2-3, For Outdoor And Indoor
- Brochure URL - 11095_BRO_3839848G_IR_Windows_Brochure_e_spreads.pdf(Brochure URL)
- Brochure URL - BRO_3839848G_IR_Windows_Brochure_e_spreads.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_686f011d719395c2d632ba6d3ba90c747b0b61fb77c1f000b000e0d287befd8a.pdf(Catalog URL)
- http://www.fluke.com(Seller Home Page URL)
- http://www.fluke.com/(Seller Home Page URL)
- Owners Manual URL - 11095_SMPVJC53TOBZLGQ2.jpg(Owners Manual URL)
- Owners Manual URL - F-flk-050-clkt_01b_h(Owners Manual URL)
- Spec Sheet URL - 11095_SPE_3504172-7346-ENG-D-W.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_3504172-7346-ENG-D-W.pdf(Spec Sheet URL)
- Warranty URL - 11095_WAR_FLUKE_Warranties_2014.pdf(Warranty URL)
- Applications
- Features
| For Outdoor And Indoor |
| Each CLKT infrared window is engineered and tested to withstand electric-arcs up to 50 KAMP for 30 cycles; The ClirVu coating - exclusive to Fluke infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold outdoor environments; Each Fluke infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs; CLKT infrared windows come complete with a security access key, installation instructions and self-adhesive drilling template; ClirVu coating, Shortwave IR capable,Midwave IR capable,Longwave IR capable,Ultraviolet (UV) capable,Visual capable,Fusion capable, Underwriters Laboratories (UL) recognized YES; Kwik-twist aluminium cover; Low smoke and fume (LSF) compliant silicone gasket; Up to 11 KV marine switchgear, indoor or outdoor; Resistance of insulating materials to 100 DEG; Resistance of insulating material to ball pressure (Brinell); Glow-wire test 650 DEG C; Cyclic humidity withstand; Vibration withstand |
