Ferraz Shawmut

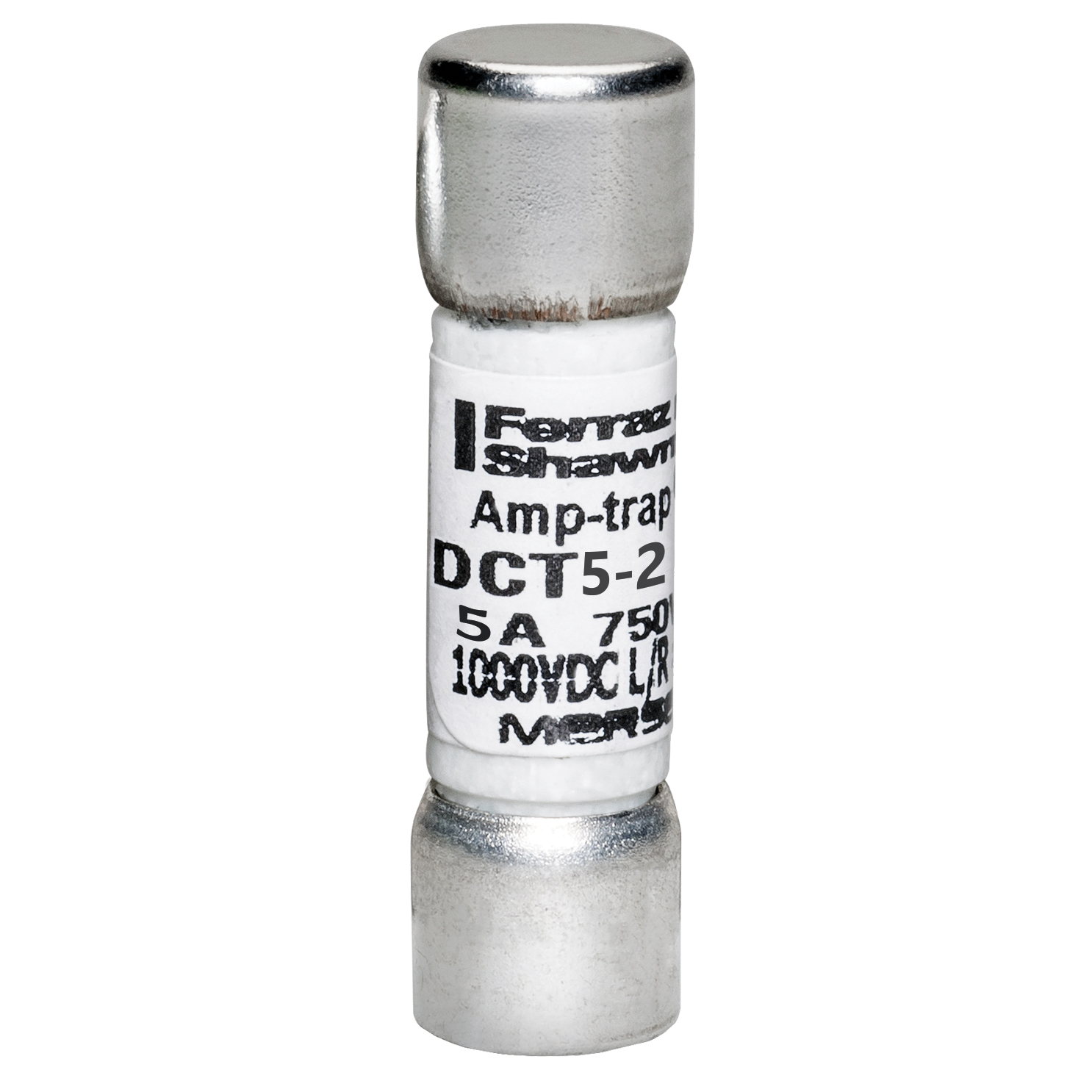

Ferraz Shawmut DCT5-2 DCT Fast Acting Special Purpose Midget Fuse, 5 A, 570 VAC/1000 VDC, Cylindrical Body
Custom_Product_Images_Illustration
Ferraz Shawmut
Ferraz Shawmut DCT5-2 DCT Fast Acting Special Purpose Midget Fuse, 5 A, 570 VAC/1000 VDC, Cylindrical Body
SKU633250
MFGR #DCT5-2
Your Cost: $48.53/ea
List: Ferraz Shawmut Midget Fuse, Fast Acting Special Purpose, Series: DCT, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 570 VAC/1000 VDC, 100 kA at 750 VAC/50 kA at 1000 VDC Interrupt, 50/60 Hz, Clip Mount, Cylindrical Body, Single Element, Fiberglass, 13/32 in Dia x 1-1/2 in L Body Size
Ferraz Shawmut Midget Fuse, Fast Acting Special Purpose, Series: DCT, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 570 VAC/1000 VDC, 100 kA at 750 VAC/50 kA at 1000 VDC Interrupt, 50/60 Hz, Clip Mount, Cylindrical Body, Single Element, Fiberglass, 13/32 in Dia x 1-1/2 in L Body Size
Alternate Catalog Number DCT5-2 Application Multi meters; 690V Transformers; DC Traction Equipment ARRA Compliant X Body Size 13/32 in Dia x 1-1/2 in L Body Type Cylindrical Buy American Compliant X Catalog Number DCT5-2 Connection Ferrule Country of Origin MX Currency USD Element Single EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 0.25 Gross Weight Per Pack 0.0120 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 0.41 in Height [Metric] 10.3120 mm Indicating|Non~Indicating Non-Indicating Length 1.50 in Length [Metric] 38.1000 mm Material Fiberglass Mounting Clip Mounting Type Clip Rejection|Non~Rejection Non-Rejection Response Time Fast-Acting Series DCT Standard UL Recognized Component, File E60314, Guide JFHR2; RoHS Compliant Standards UL E60314 Sub Brand Amp-Trap?® Type Supplemental Protection UNSPSC 39121609 UPC 11 78200135242 UPC 12 78200135242 Width 0.41 in Width [Metric] 10.3120 mm Stock Status NONSTOCK Brand Ferraz Shawmut Manufacturer Ferraz Shawmut Amperage Rating 5 A Class M Interrupt Rating 100 kA Size 1.5 x 0.41 in Voltage Rating 750 VAC Multi meters; 690V Transformers; DC Traction Equipment 1000 VDC with L/R = 1ms; Low minimum breaking capacity:; 1A to 7A = 1.3 x In; 8A to 30A = 2.0 x In; Compact size: 10 X 38 mm (13/32 X 1-1/2) size internationally accepted. ; Can be used with UltraSafe Fuseholders
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | DCT5-2 |
| Application | Multi meters; 690V Transformers; DC Traction Equipment |
| ARRA Compliant | X |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Body Type | Cylindrical |
| Buy American Compliant | X |
| Catalog Number | DCT5-2 |
| Connection | Ferrule |
| Country of Origin | MX |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 0.25 |
| Gross Weight Per Pack | 0.0120 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 0.41 in |
| Height [Metric] | 10.3120 mm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 1.50 in |
| Length [Metric] | 38.1000 mm |
| Material | Fiberglass |
| Mounting | Clip |
| Mounting Type | Clip |
| Rejection|Non~Rejection | Non-Rejection |
| Response Time | Fast-Acting |
| Series | DCT |
| Standard | UL Recognized Component, File E60314, Guide JFHR2; RoHS Compliant |
| Standards | UL E60314 |
| Sub Brand | Amp-Trap?® |
| Type | Supplemental Protection |
| UNSPSC | 39121609 |
| UPC 11 | 78200135242 |
| UPC 12 | 78200135242 |
| Width | 0.41 in |
| Width [Metric] | 10.3120 mm |
| Stock Status | NONSTOCK |
| Brand | Ferraz Shawmut |
| Manufacturer | Ferraz Shawmut |
| Amperage Rating | 5 A |
| Class | M |
| Interrupt Rating | 100 kA |
| Size | 1.5 x 0.41 in |
| Voltage Rating | 750 VAC |
| Multi meters; 690V Transformers; DC Traction Equipment |
| 1000 VDC with L/R = 1ms; Low minimum breaking capacity:; 1A to 7A = 1.3 x In; 8A to 30A = 2.0 x In; Compact size: 10 X 38 mm (13/32 X 1-1/2) size internationally accepted. ; Can be used with UltraSafe Fuseholders |
