Ferraz Shawmut

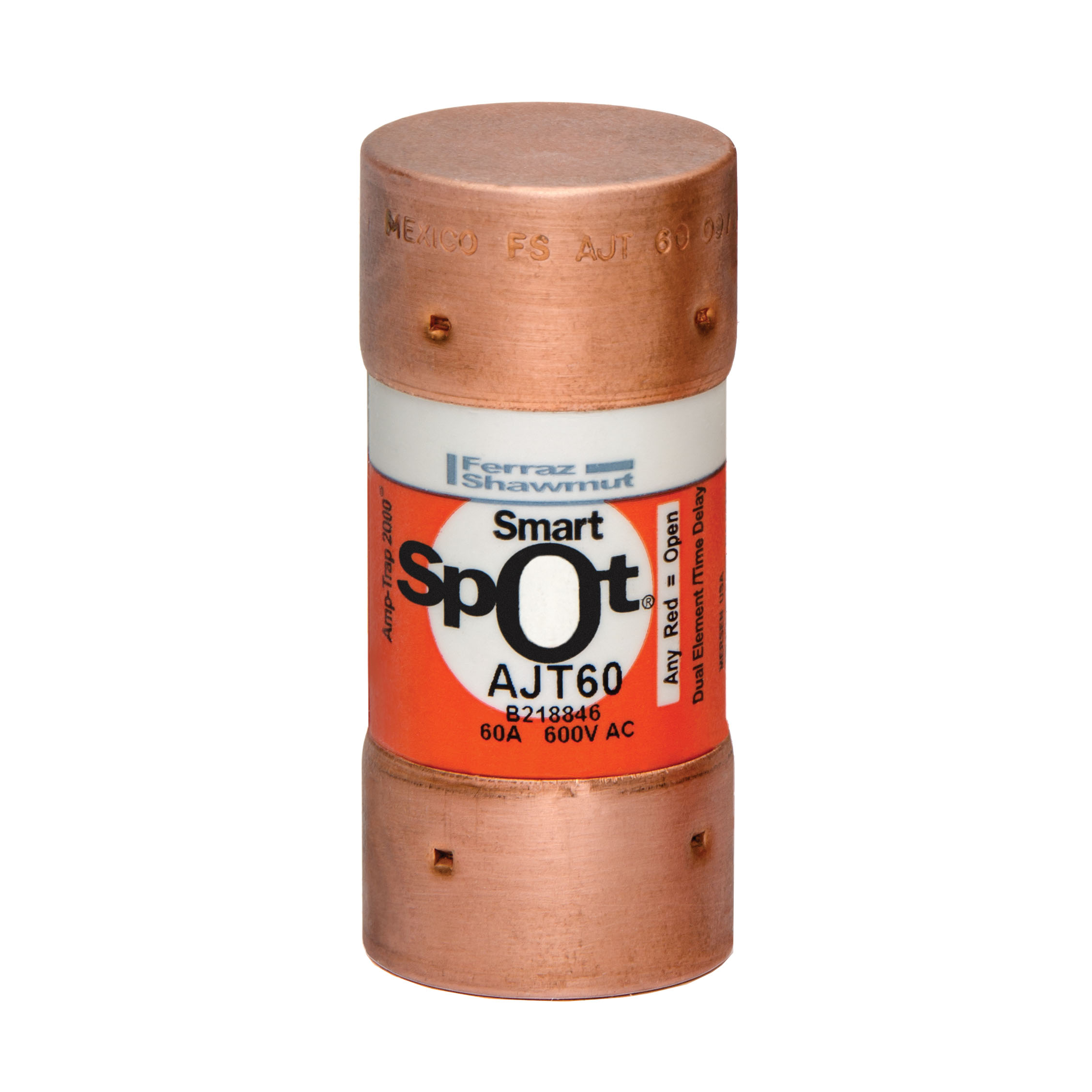

Ferraz Shawmut AJT60 Amp-Trap® 2000® SmartSpot® AJT Current Limiting Time Delay Fuse, 60 A, 600 VAC/500 VDC, Class J Series
Custom_Product_Images_Illustration
Ferraz Shawmut
Ferraz Shawmut AJT60 Amp-Trap® 2000® SmartSpot® AJT Current Limiting Time Delay Fuse, 60 A, 600 VAC/500 VDC, Class J Series
SKU20082
MFGR #AJT60
Your Cost: $82.74/ea
Amp-Trap® 2000 time-delay AJT fuses provide IEC Type "2" (No Damage) protection to main, feeder, and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600V UL Class RK fuses. Time-delay characteristics handle motor inrush currents without nuisance trips. Its current-limiting ability and wide range of ratings provide excellent over current protection for all your applications. An optional mechanical blown fuse indicator and Micro switch is available on blade-type (70 to 600A) fuses for visual and/or remote blown fuse indication.
Amp-Trap® 2000 time-delay AJT fuses provide IEC Type "2" (No Damage) protection to main, feeder, and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600V UL Class RK fuses. Time-delay characteristics handle motor inrush currents without nuisance trips. Its current-limiting ability and wide range of ratings provide excellent over current protection for all your applications. An optional mechanical blown fuse indicator and Micro switch is available on blade-type (70 to 600A) fuses for visual and/or remote blown fuse indication.
Alternate Catalog Number AJT60 Application Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers ARRA Compliant X Body Size 1-1/16 in Dia x 2-3/8 in L Buy American Compliant X Catalog Number AJT60 Connection Ferrule Country of Origin MX Currency USD Element Dual EU RoHS Indicator Y Gross Volume Per Pack 2.67 Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.06 in Height [Metric] 27.0000 mm Indicating|Non~Indicating Indicating Length 2.38 in Length [Metric] 60.4520 mm Material Fiberglass Mounting Clip Mounting Type Clip Rejection|Non~Rejection Rejection Series AJT Size 2.38 x 1.06 in Standard UL Listed to Standard 248-8, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.8 IEC 269-2-1 Standards RoHS CompliantUL 248-8 File No. E2137DC Listed to UL 248CSA C22.2 No. 248.8IEC 269-2-1 Sub Brand Amp-Trap?® 2000, SmartSpot?® Terminal Type Ferrule Type North American Power Fuses Type Of Indicators SmartSpot UNSPSC 39121604 UPC 11 78200196238 UPC 12 78200196238 Width 1.06 in Width [Metric] 27.0000 mm Stock Status NONSTOCK Brand Ferraz Shawmut Manufacturer Ferraz Shawmut Amperage Rating 60 A Body Type Cylindrical Class J Interrupt Rating 200 kA Voltage Rating 600 VAC Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers Solid-state SmartSpot indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating, self-certified (UL witnessed) Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant recognition Metal embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI blown fuse indicator/switch available Time delay for motor starting and transformer inrush Rejection style design prevents replacement errors Extremely current limiting for low peak let through current Most current limiting UL class fuse Easy 2 to 1 selectivity for prevention of nuisance shutdowns High visibility orange label gives instant recognition Fiberglass body provides dimensional stability in harsh industrial settings Tin plated copper, silver plated copper contact Unique class J dimensions prevent replacement errors
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | AJT60 |
| Application | Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers |
| ARRA Compliant | X |
| Body Size | 1-1/16 in Dia x 2-3/8 in L |
| Buy American Compliant | X |
| Catalog Number | AJT60 |
| Connection | Ferrule |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2.67 |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.06 in |
| Height [Metric] | 27.0000 mm |
| Indicating|Non~Indicating | Indicating |
| Length | 2.38 in |
| Length [Metric] | 60.4520 mm |
| Material | Fiberglass |
| Mounting | Clip |
| Mounting Type | Clip |
| Rejection|Non~Rejection | Rejection |
| Series | AJT |
| Size | 2.38 x 1.06 in |
| Standard | UL Listed to Standard 248-8, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.8 IEC 269-2-1 |
| Standards | RoHS CompliantUL 248-8 File No. E2137DC Listed to UL 248CSA C22.2 No. 248.8IEC 269-2-1 |
| Sub Brand | Amp-Trap?® 2000, SmartSpot?® |
| Terminal Type | Ferrule |
| Type | North American Power Fuses |
| Type Of Indicators | SmartSpot |
| UNSPSC | 39121604 |
| UPC 11 | 78200196238 |
| UPC 12 | 78200196238 |
| Width | 1.06 in |
| Width [Metric] | 27.0000 mm |
| Stock Status | NONSTOCK |
| Brand | Ferraz Shawmut |
| Manufacturer | Ferraz Shawmut |
| Amperage Rating | 60 A |
| Body Type | Cylindrical |
| Class | J |
| Interrupt Rating | 200 kA |
| Voltage Rating | 600 VAC |
| Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers |
| Solid-state SmartSpot indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating, self-certified (UL witnessed) Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant recognition Metal embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI blown fuse indicator/switch available |
| Time delay for motor starting and transformer inrush |
| Rejection style design prevents replacement errors |
| Extremely current limiting for low peak let through current |
| Most current limiting UL class fuse |
| Easy 2 to 1 selectivity for prevention of nuisance shutdowns |
| High visibility orange label gives instant recognition |
| Fiberglass body provides dimensional stability in harsh industrial settings |
| Tin plated copper, silver plated copper contact |
| Unique class J dimensions prevent replacement errors |
