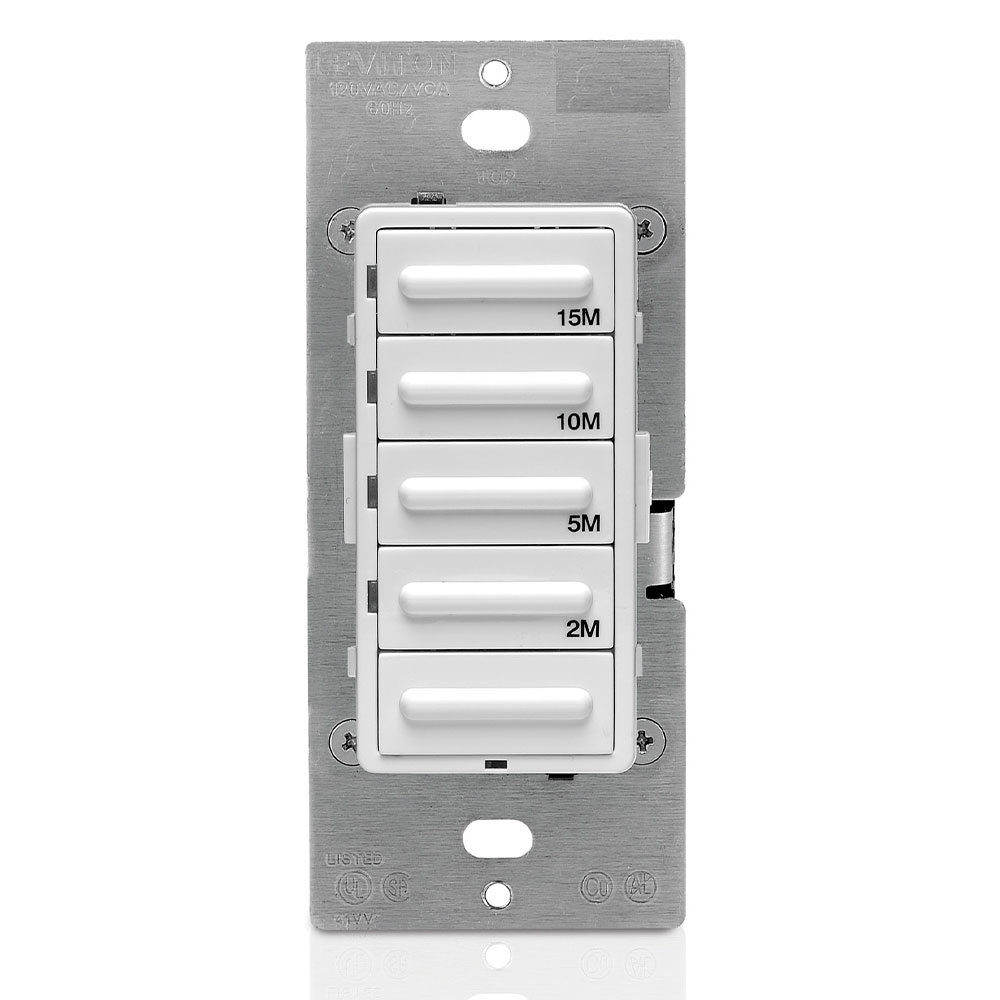

Decora® LTB15-1LZ Electronic Time Switch, 15 min Time Setting, 120 VAC, 1 hp, 1 Pole
Custom_Product_Images_Illustration
Decora® LTB15-1LZ Electronic Time Switch, 15 min Time Setting, 120 VAC, 1 hp, 1 Pole
SKU537013
MFGR #LTB15-1LZ
Your Cost: $52.74/ea
The LTB15-1LZ, Leviton Decora Timer Switch offers advanced features, superior accuracy and contemporary aesthetics. It provides convenient timed control of lighting and motor loads in homes, offices, schools, libraries and other small commercial applications. It is ideal in automating control of heat lamps, hot tubs, attic and exhaust fans. This timer allows users to simply press and hold the top button to initiate override or press and hold two buttons to convert the 15-minute timer into other available time intervals. It has soothing green LED locator lights and offers three colors in one box, plus single pole or 3-way capability (with VP0SR).
The LTB15-1LZ, Leviton Decora Timer Switch offers advanced features, superior accuracy and contemporary aesthetics. It provides convenient timed control of lighting and motor loads in homes, offices, schools, libraries and other small commercial applications. It is ideal in automating control of heat lamps, hot tubs, attic and exhaust fans. This timer allows users to simply press and hold the top button to initiate override or press and hold two buttons to convert the 15-minute timer into other available time intervals. It has soothing green LED locator lights and offers three colors in one box, plus single pole or 3-way capability (with VP0SR).
Action SP Application Commercial ARRA Compliant C Base Screw Buy American Compliant C Catalog Number LTB15-1LZ Country of Origin CN Currency USD Dimensions 4.13 in H x 1.75 in W x 1.4 in D Environmental Conditions Flammability (Rated UL94 V-2) EU RoHS Indicator C Frequency Rating 60 Hz Gross Weight Per Pack 0.4600 lb Gross Weight per Pack Metric 0.21 Gross Weight UOM Metric kg Height 6.0000 in Height [Metric] 11.2725 cm Lamp Type Fluorescent/Incandescent/LED Length 12.0000 in Length [Metric] 7.1450 cm Mounting Wall Mounting Type Wall Number Of Poles 1 Operating Temperature 0 to +40 °C Power Rating 1 hp Replaced Catalog Number DT115-1LW Size 4.13 H x 1.75 W x 1.40 D in Standard UL Listed (E-328809), CSA Certified (MC-152105), NOM Certified, ASHRAE Standard 90.1 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E328809CSA MC-152105NOM CertifiedASHRAE 90.1UL94 V-2 Flammability Rating Sub Brand Decora Temperature Rating 0 to 40 °C Timing Range 0-15 mins Type Electronic UNSPSC 39122208.0 UPC 11 07847745920 UPC 12 078477459201 Wattage 600/1,800 W Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Voltage Rating 120 VAC Commercial Neutral Required, Contemporary Style to Any Home, Preset Timers provide a Long Lasting and Reliable Service Life, 5 Years Limited Warranty, Green LED Indicates Time Elapsed, 4 Preset Time Out Option, Simple Press and Hold Override, Adjustable Time Outs, M Contemporary style to any home Preset timers provide a long lasting and reliable service life Neutral required Green LED indicates time elapsed Preset time out option Simple press and hold override Adjustable timeouts 4-preset time out option Preset 2/5/10/15 min countdown 1800 W incandescent 15 min timing range 3-way with remote action 3 colors in a box - white, ivory and light almond 3 way with remote
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SP |
| Application | Commercial |
| ARRA Compliant | C |
| Base | Screw |
| Buy American Compliant | C |
| Catalog Number | LTB15-1LZ |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.13 in H x 1.75 in W x 1.4 in D |
| Environmental Conditions | Flammability (Rated UL94 V-2) |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 0.4600 lb |
| Gross Weight per Pack Metric | 0.21 |
| Gross Weight UOM Metric | kg |
| Height | 6.0000 in |
| Height [Metric] | 11.2725 cm |
| Lamp Type | Fluorescent/Incandescent/LED |
| Length | 12.0000 in |
| Length [Metric] | 7.1450 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operating Temperature | 0 to +40 °C |
| Power Rating | 1 hp |
| Replaced Catalog Number | DT115-1LW |
| Size | 4.13 H x 1.75 W x 1.40 D in |
| Standard | UL Listed (E-328809), CSA Certified (MC-152105), NOM Certified, ASHRAE Standard 90.1 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E328809CSA MC-152105NOM CertifiedASHRAE 90.1UL94 V-2 Flammability Rating |
| Sub Brand | Decora |
| Temperature Rating | 0 to 40 °C |
| Timing Range | 0-15 mins |
| Type | Electronic |
| UNSPSC | 39122208.0 |
| UPC 11 | 07847745920 |
| UPC 12 | 078477459201 |
| Wattage | 600/1,800 W |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Voltage Rating | 120 VAC |
| Commercial |
| Neutral Required, Contemporary Style to Any Home, Preset Timers provide a Long Lasting and Reliable Service Life, 5 Years Limited Warranty, Green LED Indicates Time Elapsed, 4 Preset Time Out Option, Simple Press and Hold Override, Adjustable Time Outs, M |
| Contemporary style to any home |
| Preset timers provide a long lasting and reliable service life |
| Neutral required |
| Green LED indicates time elapsed |
| Preset time out option |
| Simple press and hold override |
| Adjustable timeouts |
| 4-preset time out option |
| Preset 2/5/10/15 min countdown |
| 1800 W incandescent |
| 15 min timing range |
| 3-way with remote action |
| 3 colors in a box - white, ivory and light almond |
| 3 way with remote |
