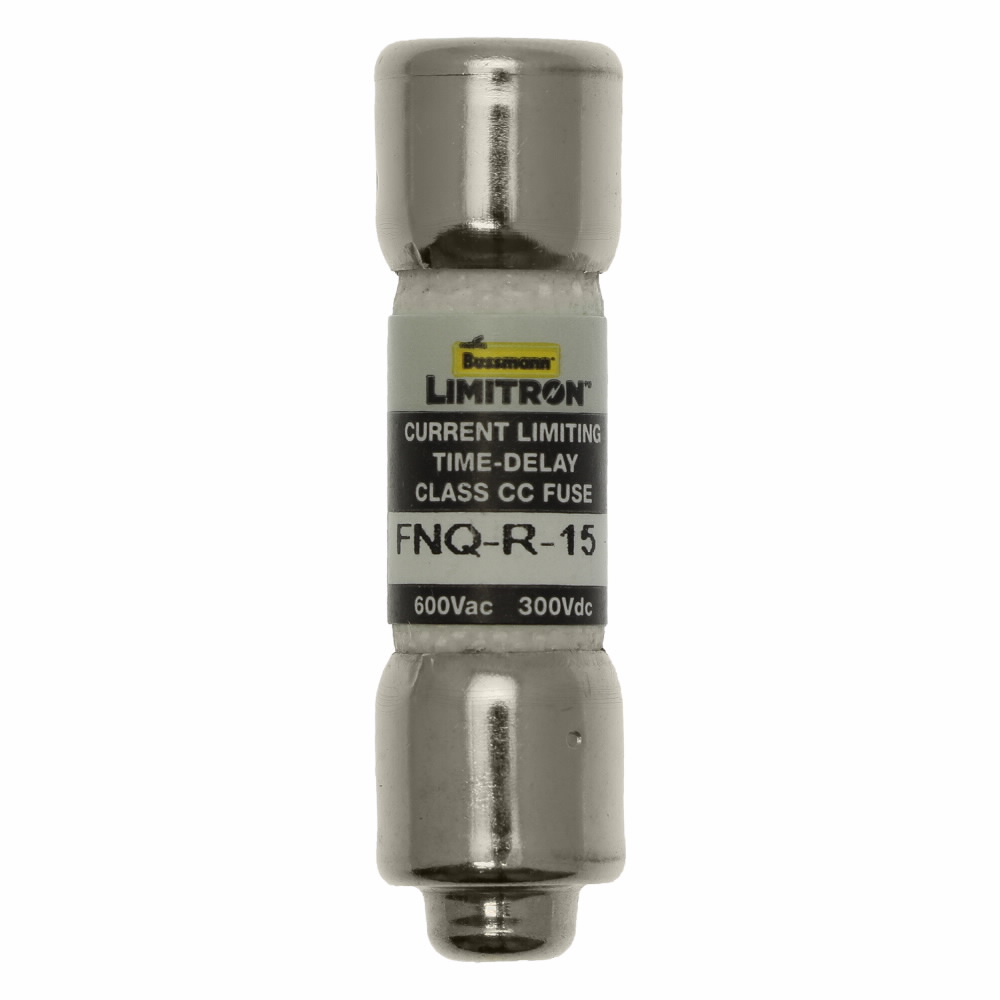

Bussmann® FNQ-R-15 LIMITRON™ FNQ-R Current Limiting Time Delay Fuse, 15 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class CC
Class CC Fuses
69129
MFG #: FNQ-R-15
Bussmann
48.77000
/ ea
Eaton's Bussmann series Limitron fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL® and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200kA interrupting rating.
- Brochure URL - COBUSSE01827_18.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b130f1135a6a844e814664dd9f51735b6b291ccabd1f2df97c5924983239479f.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet 1 URL - Bussmann_FNQ_R_1_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10973_GO07T9X2D4RB53HY.pdf(Spec Sheet URL)
- Spec Sheet URL - skuPage.FNQ-R-15.pdf(Spec Sheet URL)
- Tech Bulletin URL - datasheet.php?model=FNQ-30&locale=en_GB(Tech Bulletin URL)
- Tech Drawing URL - Bus_Ele_DS_1012_FNQ.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/YMvqUyoETXk(Video)
- Applications
- Features
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Rejection style |
| Provides 10X better current limitation to help prevent equipment damage caused by short circuit events |
| 200 kA interrupting rating complies with NEC Section 110.9 for todays large capacity systems |
| Fast-acting fuse helps prevent equipment damage caused by short circuit events |
| Rejection type fuse fits both standard and rejection-style holders |
| The Class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection |
| FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents, with significantly more time-delay than the UL minimum value of 12 seconds at 200% for Class CC fuses |
| Nickel plated brass end cap |
| 200 kA AC (RMS symmetrical) |
