Acme Electric
Buck-Boost Transformers Single Phase, 60 Hz 240 X 480 Primary Volt 24-48 Secondary Volt

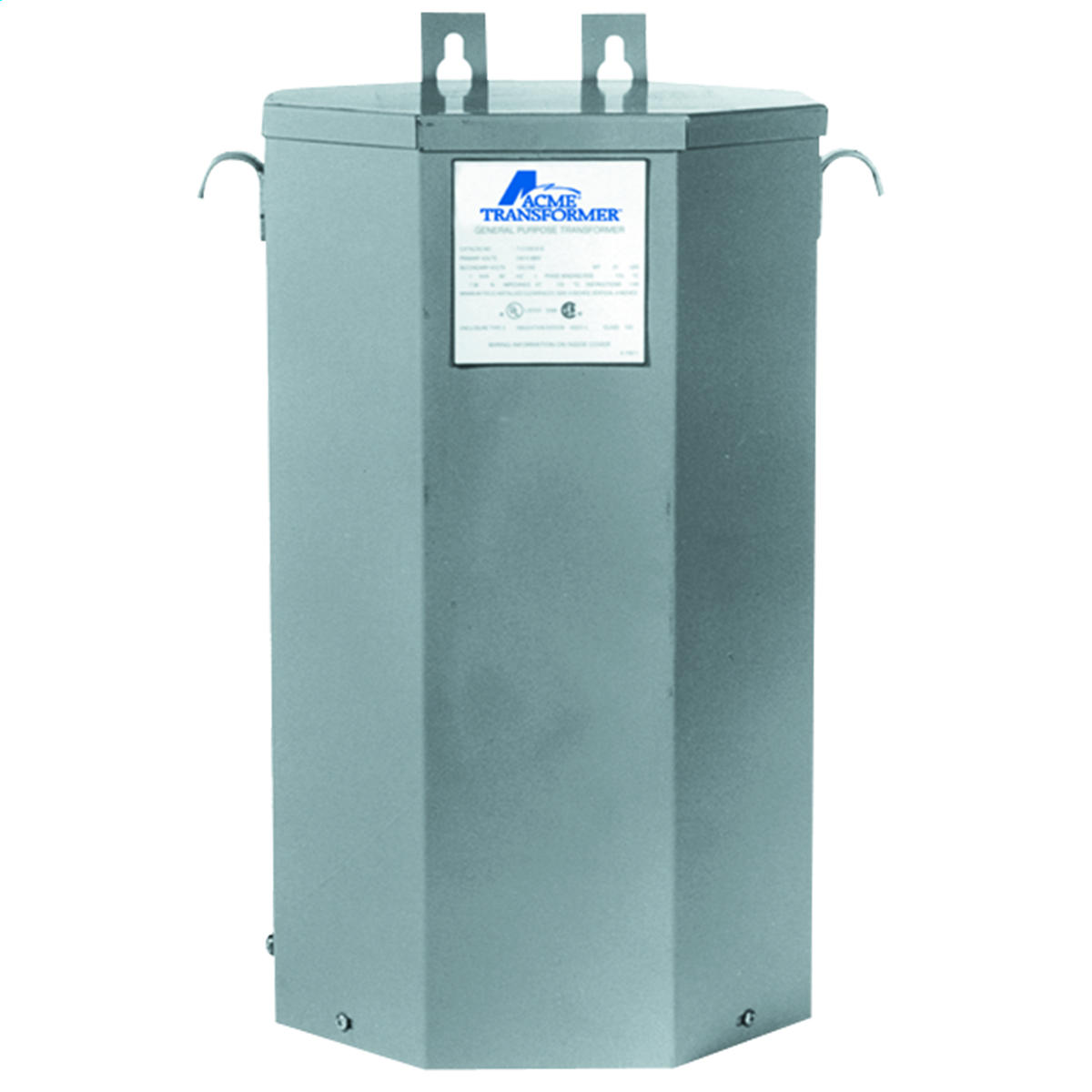

Custom_Product_Images_Illustration
Acme Electric
Buck-Boost Transformers Single Phase, 60 Hz 240 X 480 Primary Volt 24-48 Secondary Volt
SKU606499
MFGR #T243570
$/ea
Acme Electric® Buck Boost Transformer, Isolation, 240/480 VAC Primary, 24/48 VAC Secondary, 7.5 kVA, 60 Hz, 1 Phase, 312/156 A Maximum, Lead Wire, Wall Mount, 180 deg C, NEMA 3R/IP54, 115 deg C, Steel Housing, 20.81 in H x 11.12 in W x 10.84 in D
Acme Electric® Buck Boost Transformer, Isolation, 240/480 VAC Primary, 24/48 VAC Secondary, 7.5 kVA, 60 Hz, 1 Phase, 312/156 A Maximum, Lead Wire, Wall Mount, 180 deg C, NEMA 3R/IP54, 115 deg C, Steel Housing, 20.81 in H x 11.12 in W x 10.84 in D
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number T243570 Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 20.81 in H x 11.12 in W x 10.84 in D Enclosure Type NEMA 3R/IP54 Gross Weight Per Pack 135.0000 lb Gross Weight per Pack Metric 59.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 20.81 in Height [Metric] 52.8574 cm Housing Material Steel Length 10.84 in Length [Metric] 27.5336 cm Maximum Amperage Rating 312/156 A Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1CSA C22.2 No. 47 File No. LR7357-32PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov Temperature Rating 115 °C Type Encapsulated Isolation UNSPSC 39121025 UPC 11 04750318250 UPC 12 047503182505 Width 11.12 in Width [Metric] 28.2448 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 7.5 kVA Primary Voltage 240/480 VAC Secondary Voltage 24/48 VAC Encapsulated 7.5 Powder coated, gray color Easily configured for numerous applications 5 to 10 times increase in kVA Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20% The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line Buck boost transformers are an economical way to correct a potentially very serious problem Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T243570 |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 20.81 in H x 11.12 in W x 10.84 in D |
| Enclosure Type | NEMA 3R/IP54 |
| Gross Weight Per Pack | 135.0000 lb |
| Gross Weight per Pack Metric | 59.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 20.81 in |
| Height [Metric] | 52.8574 cm |
| Housing Material | Steel |
| Length | 10.84 in |
| Length [Metric] | 27.5336 cm |
| Maximum Amperage Rating | 312/156 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1CSA C22.2 No. 47 File No. LR7357-32PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Encapsulated Isolation |
| UNSPSC | 39121025 |
| UPC 11 | 04750318250 |
| UPC 12 | 047503182505 |
| Width | 11.12 in |
| Width [Metric] | 28.2448 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 7.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 24/48 VAC |
| Encapsulated |
| 7.5 |
| Powder coated, gray color |
| Easily configured for numerous applications |
| 5 to 10 times increase in kVA |
| Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20% |
| The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line |
| Buck boost transformers are an economical way to correct a potentially very serious problem |
| Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense |
