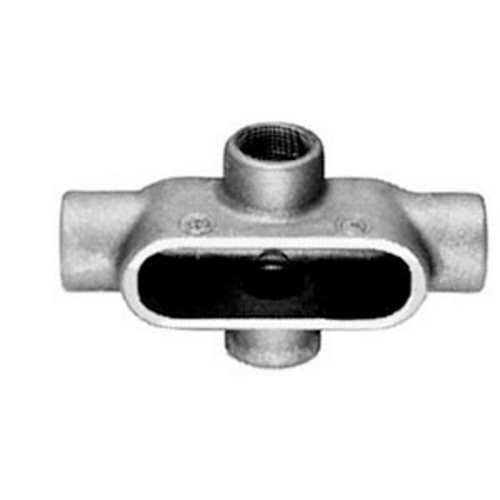

Appleton® X57 Type X Conduit Outlet Body, 1-1/2 in Hub, 7, 28 cu-in, Grayloy-Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® X57 Type X Conduit Outlet Body, 1-1/2 in Hub, 7, 28 cu-in, Grayloy-Iron, Tri-Coated
SKU202988
MFGR #APPX57
Your Cost: $86.67/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant Y Buy American Compliant C Catalog Number APPX57 Color Gray Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 8.19 in L x 4.63 in W x 2.56 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 2.8300 lb Gross Weight per Pack Metric 1.28 Gross Weight UOM Metric kg Height 5.00 in Height [Metric] 12.7000 cm Length 8.40 in Length [Metric] 21.3360 cm Mounting Type Surface Number of Hubs 4 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514AUL 514B File No. E2527CSA C22.2 No. 18.3/065183 Sub Brand UNILETS Type Type X UNSPSC 39131708 UPC 11 78138150738 UPC 12 781381507387 Width 5.40 in Width [Metric] 13.7160 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 28 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form Form 7 Hub Size 1-1/2 in Material Grayloy Iron For Use With Rigid Steel, Rigid Aluminum Conduit And IMC BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires. Serve as pulling fittings Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers Equivalent FM7 and Form 7 units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining Pan-head cover screws secure cover clips and provide superior screwdriver seating and torque, cover screws and clips are captive to prevent loss Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | C |
| Catalog Number | APPX57 |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 8.19 in L x 4.63 in W x 2.56 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.8300 lb |
| Gross Weight per Pack Metric | 1.28 |
| Gross Weight UOM Metric | kg |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Length | 8.40 in |
| Length [Metric] | 21.3360 cm |
| Mounting Type | Surface |
| Number of Hubs | 4 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514AUL 514B File No. E2527CSA C22.2 No. 18.3/065183 |
| Sub Brand | UNILETS |
| Type | Type X |
| UNSPSC | 39131708 |
| UPC 11 | 78138150738 |
| UPC 12 | 781381507387 |
| Width | 5.40 in |
| Width [Metric] | 13.7160 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 28 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | Form 7 |
| Hub Size | 1-1/2 in |
| Material | Grayloy Iron |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires. |
| Serve as pulling fittings |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers |
| Equivalent FM7 and Form 7 units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining |
| Pan-head cover screws secure cover clips and provide superior screwdriver seating and torque, cover screws and clips are captive to prevent loss |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) finish |
