Appleton™

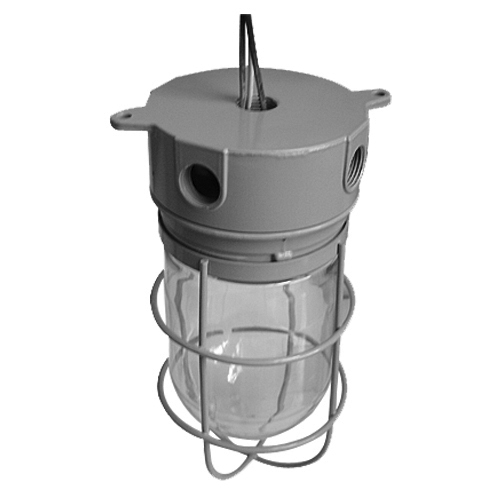

Appleton® WFC1075G WFC Weatherproof Lighting Fixture, 1 Incandescent Lamp, 120 VAC, Powder Coated Housing
Custom_Product_Images_Illustration
Appleton™
Appleton® WFC1075G WFC Weatherproof Lighting Fixture, 1 Incandescent Lamp, 120 VAC, Powder Coated Housing
SKU299005
MFGR #WFC1075G
Your Cost: $102.32/ea
Appleton® Lighting Fixture, Weatherproof, Series: WFC, 120 VAC, Incandescent Lamp, 100 W Lamp, Medium Lamp Base, 1 Lamp, Gray Light, Glass Lens, NEMA FB-1/OS-1, Ceiling Mount, Aluminium Housing, Powder Coated Housing, 9.37 in L x 4.15 in W
Appleton® Lighting Fixture, Weatherproof, Series: WFC, 120 VAC, Incandescent Lamp, 100 W Lamp, Medium Lamp Base, 1 Lamp, Gray Light, Glass Lens, NEMA FB-1/OS-1, Ceiling Mount, Aluminium Housing, Powder Coated Housing, 9.37 in L x 4.15 in W
Application Lighting Fixture ARRA Compliant N Base Medium Buy American Compliant N Catalog Number WFC1075G Color Gray Country of Origin IN Currency USD Dimensions 9.37 in L x 4.15 in W Enclosure Type NEMA FB-1/OS-1 Environmental Conditions Weatherproof EU RoHS Indicator C Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Height 5.00 in Height [Metric] 12.7000 cm Housing Material Aluminum Lamp Base Type Medium Lamp Wattage 100 W Length 10.00 in Length [Metric] 25.4000 cm Lens Type Glass Light Color Gray Mounting Ceiling Mounting Type Ceiling Number Of Lamps 1 Power Rating 100 W Series WFC Size Hub Size 3/4 (5) IN in Standard UL Standard 15998, CAS Standard C22.2 No. 250 Standards RoHS CompliantUL 15998CAS C22.2 No. 250 Sub Brand ETP Type Weatherproof UNSPSC 39111611 UPC 11 68785503124 UPC 12 687855031245 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Housing Finish Powder Coated Lamp Type Incandescent Voltage Rating 120 VAC Lighting Fixture Factory assembled with guard. Ground Screw, Closure plugs and mounting lugs included. Use with 125 ° C supply wire. Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture Smooth, accurately tapped hubs prevent wire abrasion Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection Lighting fixtures are individually boxed, labeled and bar coded for ease of handling and identification Lampholders are supplied with all hardware including locknuts, porcelain sockets and internal gaskets for reliability and weather protection Lampholders are for use in exterior and interior applications to provide safety and security for driveways, doorways and walkways Photocells and lampholders are supplied with long leads Factory assembled with guard Use with 125 degree C supply wire Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts Annealed glass lens Die cast aluminum housing materia
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Lighting Fixture |
| ARRA Compliant | N |
| Base | Medium |
| Buy American Compliant | N |
| Catalog Number | WFC1075G |
| Color | Gray |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 9.37 in L x 4.15 in W |
| Enclosure Type | NEMA FB-1/OS-1 |
| Environmental Conditions | Weatherproof |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Housing Material | Aluminum |
| Lamp Base Type | Medium |
| Lamp Wattage | 100 W |
| Length | 10.00 in |
| Length [Metric] | 25.4000 cm |
| Lens Type | Glass |
| Light Color | Gray |
| Mounting | Ceiling |
| Mounting Type | Ceiling |
| Number Of Lamps | 1 |
| Power Rating | 100 W |
| Series | WFC |
| Size | Hub Size 3/4 (5) IN in |
| Standard | UL Standard 15998, CAS Standard C22.2 No. 250 |
| Standards | RoHS CompliantUL 15998CAS C22.2 No. 250 |
| Sub Brand | ETP |
| Type | Weatherproof |
| UNSPSC | 39111611 |
| UPC 11 | 68785503124 |
| UPC 12 | 687855031245 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Housing Finish | Powder Coated |
| Lamp Type | Incandescent |
| Voltage Rating | 120 VAC |
| Lighting Fixture |
| Factory assembled with guard. Ground Screw, Closure plugs and mounting lugs included. Use with 125 ° C supply wire. |
| Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture |
| Smooth, accurately tapped hubs prevent wire abrasion |
| Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection |
| Lighting fixtures are individually boxed, labeled and bar coded for ease of handling and identification |
| Lampholders are supplied with all hardware including locknuts, porcelain sockets and internal gaskets for reliability and weather protection |
| Lampholders are for use in exterior and interior applications to provide safety and security for driveways, doorways and walkways |
| Photocells and lampholders are supplied with long leads |
| Factory assembled with guard |
| Use with 125 degree C supply wire |
| Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts |
| Annealed glass lens |
| Die cast aluminum housing materia |
