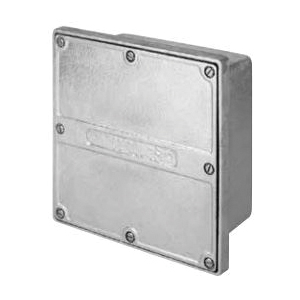

Appleton® W-YR-121208CSV CAST IRON JUNCTION BOX CSV CVR
Junction Boxes
PDW~928955
MFG #: WYR121208CSV
Appleton™
1781.01000
/ ea
Appleton® Junction Box, Flange, Series: WYR, 12 in Length, 12 in Width, 8 in Depth, NEMA 1/2/3/3R/3S/4/5/6/6P/12/12K/13, Gasketed/Recessed/Screw Cover, Flush Mount, Cast Iron, Hot Dipped Galvanized
- Features
| No spot welded seams like those found in formed sheet metal boxes |
| Greater mechanical strength |
| Thicker walls make them more suitable for drilling and tapping at the factory or in the field |
| Raintight boxes are constructed to withstand a beating rain |
| Watertight boxes are constructed to prevent the entry of water under extreme conditions of weather |
| Dust tight boxes are constructed to provide a degree of protection against dust and falling dirt |
| Wide box flange permits greater contact between gasket and box |
| Neoprene gasket located between cover and box |
| Wide selection of sizes and locations for drilled and tapped and slip hole conduit entrances |
| Checkered steel covers suitable for vehicular traffic (H-25 loading) |
