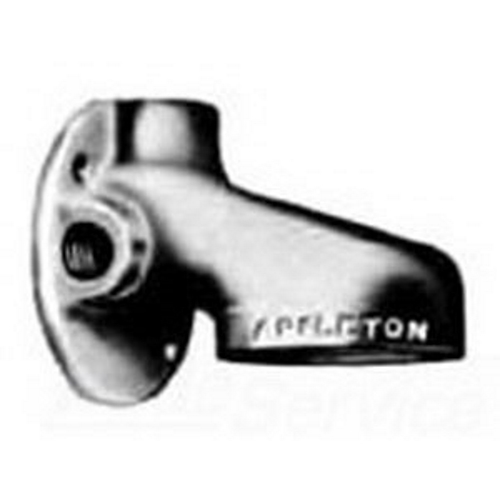

Appleton® VGAT-75 V-51™ VGAT75 Mounting Hood, For Use With Threaded Metal Conduit, 3/4 in Hub
Custom_Product_Images_Illustration
Appleton® VGAT-75 V-51™ VGAT75 Mounting Hood, For Use With Threaded Metal Conduit, 3/4 in Hub
SKU85087
MFGR #VGAT75
Your Cost: $207.49/ea
Appleton® V-51™ Mounting Hood, For Use With: Threaded Metal Conduit, 3/4 in Hub
Appleton® V-51™ Mounting Hood, For Use With: Threaded Metal Conduit, 3/4 in Hub
Application For V-51 Incandescent Luminaires ARRA Compliant N Buy American Compliant N Catalog Number VGAT75 Country of Origin MX Currency USD EU RoHS Indicator N Finish Chromate/Epoxy Powder Coat/Zinc Electroplate Gross Weight Per Pack 4.2000 lb Gross Weight per Pack Metric 1.90 Gross Weight UOM Metric kg Height 1.35 in Height [Metric] 3.4290 cm Lamp Type Incandescent Length 15.20 in Length [Metric] 38.6080 cm Mounting Stanchion Size 3/4 IN Hub Standards UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III Type Wall Mount UNSPSC 39111817 UPC 11 78138171010 UPC 12 781381710107 Width 12.20 in Width [Metric] 30.9880 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Malleable Iron Specifications 3/4 in Hub Suitable For Use With V-51™ Incandescent Luminaries, 30 deg Angle Reflectors For V-51 Incandescent Luminaires Furnished with connection block, gasket and screws; 3 hubs plus 1 tapped opening in center of flange Mounting hoods for wall installations can only be used with 30 deg reflectors
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For V-51 Incandescent Luminaires |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | VGAT75 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Finish | Chromate/Epoxy Powder Coat/Zinc Electroplate |
| Gross Weight Per Pack | 4.2000 lb |
| Gross Weight per Pack Metric | 1.90 |
| Gross Weight UOM Metric | kg |
| Height | 1.35 in |
| Height [Metric] | 3.4290 cm |
| Lamp Type | Incandescent |
| Length | 15.20 in |
| Length [Metric] | 38.6080 cm |
| Mounting | Stanchion |
| Size | 3/4 IN Hub |
| Standards | UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III |
| Type | Wall Mount |
| UNSPSC | 39111817 |
| UPC 11 | 78138171010 |
| UPC 12 | 781381710107 |
| Width | 12.20 in |
| Width [Metric] | 30.9880 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Specifications | 3/4 in Hub |
| Suitable For Use With | V-51™ Incandescent Luminaries, 30 deg Angle Reflectors |
| For V-51 Incandescent Luminaires |
| Furnished with connection block, gasket and screws; 3 hubs plus 1 tapped opening in center of flange |
| Mounting hoods for wall installations can only be used with 30 deg reflectors |
