Appleton™

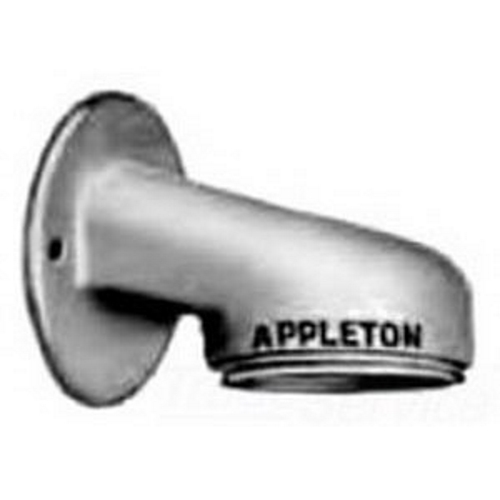

Appleton® VGA-75 Wall Mounting Hood, For Use With V-51 Series Incandescent Lighting Fixture, 3/4 in Hub, Malleable Iron
Custom_Product_Images_Illustration
Appleton™
Appleton® VGA-75 Wall Mounting Hood, For Use With V-51 Series Incandescent Lighting Fixture, 3/4 in Hub, Malleable Iron
SKU463407
MFGR #VGA75
Your Cost: $189.45/ea
Appleton® Wall Mounting Hood, For Use With: V-51 Series Incandescent Lighting Fixture, 3/4 in Hub, Malleable Iron, Zinc Plated
Appleton® Wall Mounting Hood, For Use With: V-51 Series Incandescent Lighting Fixture, 3/4 in Hub, Malleable Iron, Zinc Plated
Application For V-51 Incandescent Luminaires ARRA Compliant C Buy American Compliant N Catalog Number VGA75 Country of Origin MX Currency USD EU RoHS Indicator N Finish Chromate/Epoxy Powder Coat/Zinc Electroplate Gross Weight Per Pack 4.0000 lb Gross Weight per Pack Metric 1.81 Gross Weight UOM Metric kg Height 4.90 in Height [Metric] 12.4460 cm Lamp Type Incandescent Length 8.30 in Length [Metric] 21.0820 cm Mounting Stanchion Size 3/4 IN Hub Standards ARRA CompliantUL 1598UL 844UL File No. E10444CSA C22.2 File No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III Type Wall Mount UNSPSC 39111817 UPC 11 78138170960 UPC 12 781381709606 Width 5.50 in Width [Metric] 13.9700 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Malleable Iron Specifications 3/4 in Hub Suitable For Use With V-51™ Incandescent Luminaries, 30 deg Angle Reflectors For V-51 Incandescent Luminaires Furnished with connection block, gasket and screws; 1 tapped hole in center of flange One opening, 1 tapped hole in center of flange Incandescent lamp Mounting hoods for wall installations can only be used with 30 deg reflectors Zinc electroplated/chromate/epoxy powder coated finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For V-51 Incandescent Luminaires |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | VGA75 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Finish | Chromate/Epoxy Powder Coat/Zinc Electroplate |
| Gross Weight Per Pack | 4.0000 lb |
| Gross Weight per Pack Metric | 1.81 |
| Gross Weight UOM Metric | kg |
| Height | 4.90 in |
| Height [Metric] | 12.4460 cm |
| Lamp Type | Incandescent |
| Length | 8.30 in |
| Length [Metric] | 21.0820 cm |
| Mounting | Stanchion |
| Size | 3/4 IN Hub |
| Standards | ARRA CompliantUL 1598UL 844UL File No. E10444CSA C22.2 File No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III |
| Type | Wall Mount |
| UNSPSC | 39111817 |
| UPC 11 | 78138170960 |
| UPC 12 | 781381709606 |
| Width | 5.50 in |
| Width [Metric] | 13.9700 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Specifications | 3/4 in Hub |
| Suitable For Use With | V-51™ Incandescent Luminaries, 30 deg Angle Reflectors |
| For V-51 Incandescent Luminaires |
| Furnished with connection block, gasket and screws; 1 tapped hole in center of flange |
| One opening, 1 tapped hole in center of flange |
| Incandescent lamp |
| Mounting hoods for wall installations can only be used with 30 deg reflectors |
| Zinc electroplated/chromate/epoxy powder coated finish |
