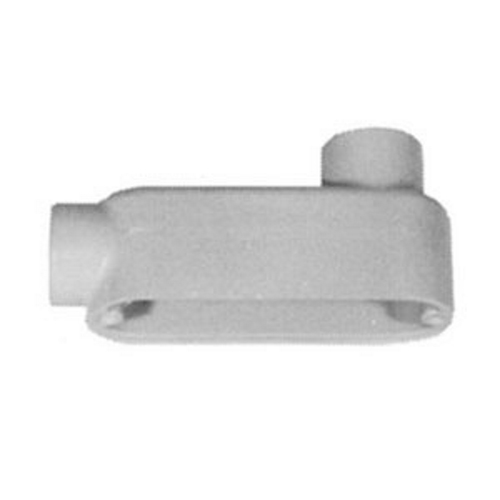

Appleton® Unilets™ LB75-A Type LB Conduit Body, 3/4 in Hub, Form 85, 7 cu-in, Aluminium, Epoxy Powder Coated
Type LB Conduit Fitting Body
17606
MFG #: LB75-A
Appleton™
12.36000
/ ea
Form 85™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
- Catalog URL - Appleton_BC100_A_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_98YRZCTXKELHP2OG.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_Form_85_Unilet_Conduit_Outlet_Bodies.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 7 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Set screw type has slotted hex head steel hardened cup-point set screw for EMT |
| Stainless steel screw, neoprene or composition fiber gasket |
| Pressure Cast Aluminum |
