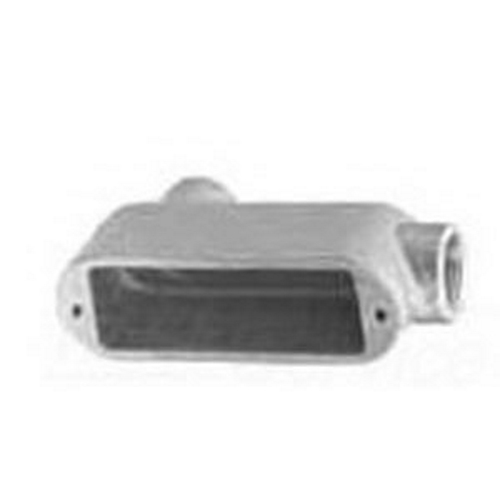

Appleton® Unilets™ LB49 Type LB Conduit Body, 1-1/4 in Hub, Form 9, 26.5 cu-in, Aluminium, Natural
Type LB Conduit Fitting Body
916339
MFG #: APPLB49
Appleton™
63.76000
/ ea
- Catalog URL - Appleton_BC100_A_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381094672_spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381094672_spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Roomy interiors: deep body cavity provides increased volume allowing higher wiring capacity; Completely interchangeable with Crouse-Hinds Mark9 bodies, gaskets and covers; Equivalent FM9 and Mark 9 units have identical applications and installation dimensions; Aluminum Unilets: produced from a high-strength copperfree aluminum alloy, for light weight and high corrosion resistance; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Flat back design fits flush against flat surfaces for more stable installation and provid |
Roomy interiors - deep body cavity provides increased volume allowing higher wiring capacity |
Smooth, rounded integral bushing in hubs protects conductor insulation |
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
Completely interchangeable with Crouse-Hinds Mark 9 bodies, gaskets and covers |
Aluminum UNILETS™ produced from a high strength copperfree aluminum alloy, for light weight and high corrosion resistance |
FM9™ covers with integral gasket are approved for use in wet locations |
Smooth hub bushings and cover openings protect conductor insulation |
Smooth hub openings allow easy conduit joining |
Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque |
Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
Seven body style |
Cover screws are captive to prevent loss |
