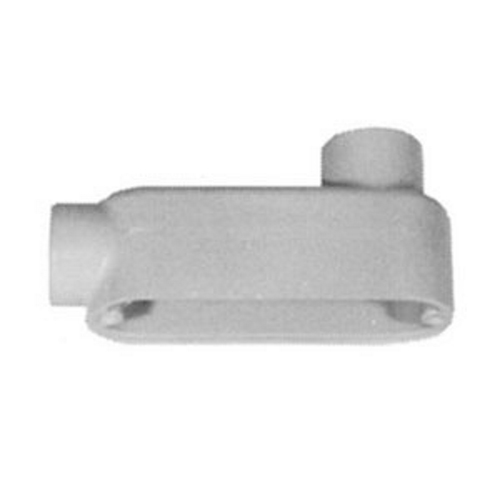

Appleton® Unilets™ LB400-A Type LB Conduit Body, 4 in Hub, Form 85, 330 cu-in, Aluminium, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton® Unilets™ LB400-A Type LB Conduit Body, 4 in Hub, Form 85, 330 cu-in, Aluminium, Epoxy Powder Coated
SKU84771
MFGR #APPLB400A
Your Cost: $863.91/ea
Form 85™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Form 85™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT ARRA Compliant N Buy American Compliant C Catalog Number APPLB400A Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 16.5 in L x 7.19 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 7.1000 lb Gross Weight per Pack Metric 3.22 Gross Weight UOM Metric kg Height 6.60 in Height [Metric] 16.7640 cm Length 17.50 in Length [Metric] 44.4500 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 Sub Brand UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138147755 UPC 12 781381477550 Width 8.20 in Width [Metric] 20.8280 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 330 in³ Finish Epoxy Powder Coated Form 85 Hub Size 4 in Material Sand Cast Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 330 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Roomy interiors more wiring space Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 85™ copper free aluminum unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance Lightweight aluminum facilitates shipping, handling and installing Sizes with flat-back design ideal where fitting is mounted flat against surface Internal volume and maximum wire capacity clearly marked on castings Threaded style is raintight when used with casketed covers Set screw type has slotted hex head steel hardened cup-point set screw for EMT Stainless steel screw, neoprene or composition fiber gasket Sand Cast Aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | APPLB400A |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16.5 in L x 7.19 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 7.1000 lb |
| Gross Weight per Pack Metric | 3.22 |
| Gross Weight UOM Metric | kg |
| Height | 6.60 in |
| Height [Metric] | 16.7640 cm |
| Length | 17.50 in |
| Length [Metric] | 44.4500 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 |
| Sub Brand | UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138147755 |
| UPC 12 | 781381477550 |
| Width | 8.20 in |
| Width [Metric] | 20.8280 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 330 in³ |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Hub Size | 4 in |
| Material | Sand Cast Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 330 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Set screw type has slotted hex head steel hardened cup-point set screw for EMT |
| Stainless steel screw, neoprene or composition fiber gasket |
| Sand Cast Aluminum |
