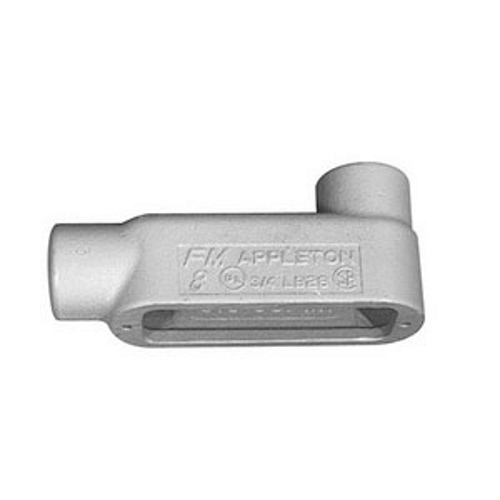

Appleton® Unilets™ LB28 Type LB Conduit Body, 3/4 in Hub, Form 8, 8 cu-in, Grayloy-Iron, Triple Coated
Type LB Conduit Fitting Body
85137
MFG #: LB28
Appleton™
30.00000
/ ea
FM8 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
- Applications
- Features
| For Use With Rigid Steel Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 8 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Flat back design provides greater cubic content for easier wire pulling, and more room for splicing, fits flush and snug against flat surfaces for more stable installation |
| Covers with gaskets are approved for use in wet locations |
| Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining |
| Neoprene gaskets and stainless steel screws |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
