Appleton™

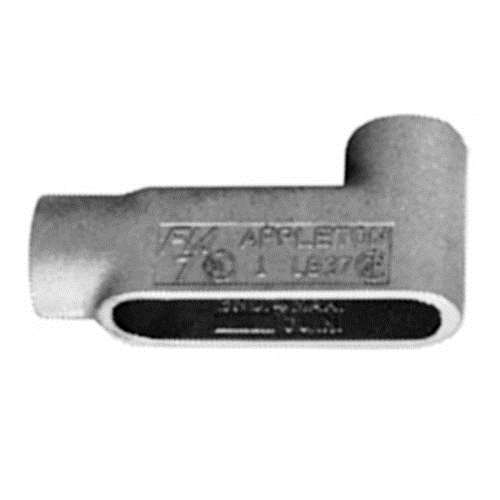

Appleton® Unilets™ LB27SA Type LB Conduit Body, 3/4 in Hub, Form 7, 7 cu-in, Aluminium, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton™
Appleton® Unilets™ LB27SA Type LB Conduit Body, 3/4 in Hub, Form 7, 7 cu-in, Aluminium, Epoxy Powder Coated
SKU286809
MFGR #LB27SA
Your Cost: $30.41/ea
M7 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
M7 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant N Buy American Compliant C Catalog Number LB27SA Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 5.19 in L x 2.44 in W x 2.5 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 0.5300 lb Gross Weight per Pack Metric 0.24 Gross Weight UOM Metric kg Height 0.82 in Height [Metric] 20.8280 mm Item Group 0130A Item Group 2 013 Length 7.70 in Length [Metric] 19.5580 cm Mounting Type Surface Number of Hubs 2 Returnable Y Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 Sub Brand UNILETS Type Type LB Conduit Outlet Body UNSPSC 39131708 UPC 11 78138160073 UPC 12 781381600736 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 7 in³ Finish Epoxy Powder Coated Form 7 Hub Size 0.75 in Material Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 7 CU-IN as per NEC 314.16(A) Smooth, rounded integral bushing in hubs protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations Grayloy iron bodies with cast covers and gasket are approved for use in wet locations Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling, and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub bushings and cover openings protect conductor insulation Smooth hub openings allow easy conduit joining Pan head cover screws secure cover clips and provide superior screwdriver seating and torque Cover screws and clips are captive to prevent loss Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Stainless steel screws
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | LB27SA |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.19 in L x 2.44 in W x 2.5 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5300 lb |
| Gross Weight per Pack Metric | 0.24 |
| Gross Weight UOM Metric | kg |
| Height | 0.82 in |
| Height [Metric] | 20.8280 mm |
| Item Group | 0130A |
| Item Group 2 | 013 |
| Length | 7.70 in |
| Length [Metric] | 19.5580 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Returnable | Y |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 |
| Sub Brand | UNILETS |
| Type | Type LB Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC 11 | 78138160073 |
| UPC 12 | 781381600736 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 7 in³ |
| Finish | Epoxy Powder Coated |
| Form | 7 |
| Hub Size | 0.75 in |
| Material | Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 7 CU-IN as per NEC 314.16(A) |
| Smooth, rounded integral bushing in hubs protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations |
| Grayloy iron bodies with cast covers and gasket are approved for use in wet locations |
| Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws |
| Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers |
| Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling, and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub bushings and cover openings protect conductor insulation |
| Smooth hub openings allow easy conduit joining |
| Pan head cover screws secure cover clips and provide superior screwdriver seating and torque |
| Cover screws and clips are captive to prevent loss |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Stainless steel screws |
