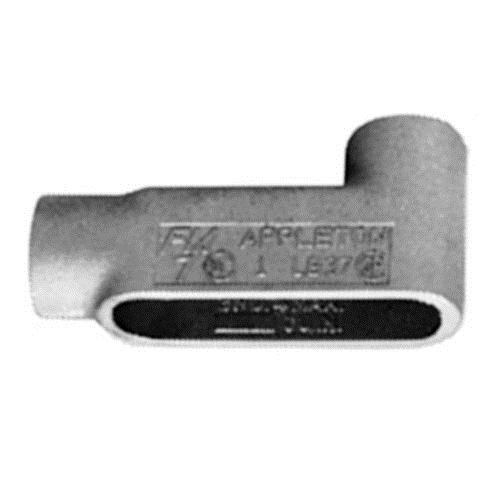

Appleton® Unilets™ LB27 Type LB Conduit Body, 3/4 in Hub, Form 7, 7 cu-in, Grayloy-Iron, Triple Coated
Custom_Product_Images_Illustration
Appleton® Unilets™ LB27 Type LB Conduit Body, 3/4 in Hub, Form 7, 7 cu-in, Grayloy-Iron, Triple Coated
SKU17679
MFGR #LB27
Your Cost: $20.77/ea
M7 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
M7 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant Y Buy American Compliant C Catalog Number LB27 Color Gray Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 5.19 in L x 2.44 in W x 2.5 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 1.3050 lb Gross Weight per Pack Metric 0.62 Gross Weight UOM Metric kg Height 0.34 in Height [Metric] 8.6360 mm Length 12.20 in Length [Metric] 30.9880 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514AUL 514B File No. E2527CSA C22.2 No. 18.3/065183 Sub Brand UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138150669 UPC 12 781381506694 Width 9.60 in Width [Metric] 24.3840 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Capacity 7 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 7 Hub Size 3/4 in Material Grayloy Iron For Use With Rigid Steel, Rigid Aluminum Conduit And IMC BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires. Serve as pulling fittings Make bends in conduit system Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers Equivalent FM7™ and Form 7 units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub openings allow easy conduit joining Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Stainless steel screws Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | C |
| Catalog Number | LB27 |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.19 in L x 2.44 in W x 2.5 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.3050 lb |
| Gross Weight per Pack Metric | 0.62 |
| Gross Weight UOM Metric | kg |
| Height | 0.34 in |
| Height [Metric] | 8.6360 mm |
| Length | 12.20 in |
| Length [Metric] | 30.9880 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514AUL 514B File No. E2527CSA C22.2 No. 18.3/065183 |
| Sub Brand | UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138150669 |
| UPC 12 | 781381506694 |
| Width | 9.60 in |
| Width [Metric] | 24.3840 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 7 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 7 |
| Hub Size | 3/4 in |
| Material | Grayloy Iron |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires. |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers |
| Equivalent FM7™ and Form 7 units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub openings allow easy conduit joining |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Stainless steel screws |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
