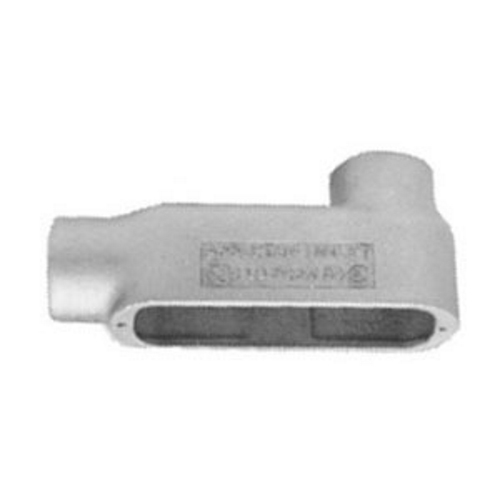

Appleton® Unilets™ LB250-M Type LB Conduit Body, 2-1/2 in Hub, Form 35, 139 cu-in, Malleable Iron, Triple Coated
Custom_Product_Images_Illustration
Appleton® Unilets™ LB250-M Type LB Conduit Body, 2-1/2 in Hub, Form 35, 139 cu-in, Malleable Iron, Triple Coated
SKU17617
MFGR #LB250-M
Your Cost: $268.22/ea
Form 35™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Form 35™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number LB250-M Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 13.69 in L x 5.75 in W x 5.25 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 8.9900 lb Gross Weight per Pack Metric 3.95 Gross Weight UOM Metric kg Height 4.60 in Height [Metric] 11.6840 cm Length 15.20 in Length [Metric] 38.6080 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards ARRA CompliantRoHS CompliantUL 514B File No. E2527C22.2 No. 18.3/065183 Certified Sub Brand UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138147730 UPC 12 781381477307 Width 5.70 in Width [Metric] 14.4780 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Capacity 139 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 35 Hub Size 2-1/2 in Material Malleable Iron For Use With Rigid Steel, Rigid Aluminum Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Exclusive built-in easy-pulling rollers to facilitate cable pulling through hubs and help eliminate cable damage; Wiring capacity: 139 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity High tensile strength and ductility, high corrosion resistance, high impact and shock resistance Sizes with flat-back design ideal where fitting is mounted flat against surface Stainless steel screw, neoprene or composition fiber gasket Form 35™ malleable iron unilets high tensile strength and ductility, high corrosion-resistance, high impact and shock resistance Exclusive built-in easy-pulling rollers in type C (1-1/4 thru 4 in) and type LB (1-1/4 thru 4 in), eliminate damage when cable is pulled through hubs Access opening back 90 deg hub location Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | LB250-M |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 13.69 in L x 5.75 in W x 5.25 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 8.9900 lb |
| Gross Weight per Pack Metric | 3.95 |
| Gross Weight UOM Metric | kg |
| Height | 4.60 in |
| Height [Metric] | 11.6840 cm |
| Length | 15.20 in |
| Length [Metric] | 38.6080 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantUL 514B File No. E2527C22.2 No. 18.3/065183 Certified |
| Sub Brand | UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138147730 |
| UPC 12 | 781381477307 |
| Width | 5.70 in |
| Width [Metric] | 14.4780 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 139 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 35 |
| Hub Size | 2-1/2 in |
| Material | Malleable Iron |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Exclusive built-in easy-pulling rollers to facilitate cable pulling through hubs and help eliminate cable damage; Wiring capacity: 139 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| High tensile strength and ductility, high corrosion resistance, high impact and shock resistance |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| Stainless steel screw, neoprene or composition fiber gasket |
| Form 35™ malleable iron unilets high tensile strength and ductility, high corrosion-resistance, high impact and shock resistance |
| Exclusive built-in easy-pulling rollers in type C (1-1/4 thru 4 in) and type LB (1-1/4 thru 4 in), eliminate damage when cable is pulled through hubs |
| Access opening back |
| 90 deg hub location |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
