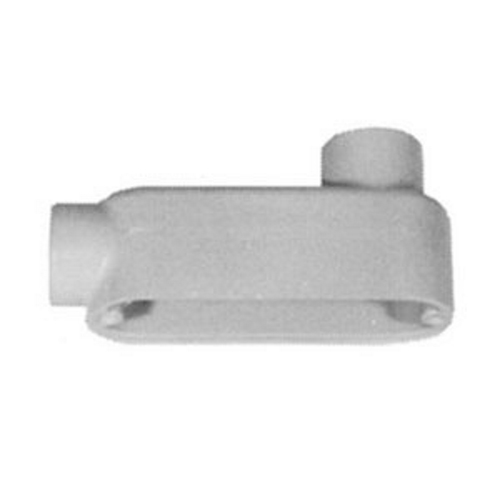

Appleton® Unilets™ LB150T-A Type LB Conduit Body, 1-1/2 in Hub, Form 85, 35 cu-in, Aluminium, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton® Unilets™ LB150T-A Type LB Conduit Body, 1-1/2 in Hub, Form 85, 35 cu-in, Aluminium, Epoxy Powder Coated
SKU469308
MFGR #LB150TA
Your Cost: $86.55/ea
Form 85™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Form 85™ Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With EMT ARRA Compliant N Buy American Compliant N Catalog Number LB150TA Connection Set-Screw Country of Origin IN Currency USD EU RoHS Indicator C Gross Weight Per Pack 1.4600 lb Gross Weight per Pack Metric 0.66 Gross Weight UOM Metric kg Height 2.90 in Height [Metric] 7.3660 cm Length 8.60 in Length [Metric] 21.8440 cm Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, 065183 Certified, RoHS Compliant Sub Brand UNILETS Type Type LB Conduit Outlet Body UNSPSC 39131708 UPC 11 78138147690 UPC 12 781381476904 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Epoxy Powder Coated Form 85 Hub Size 1.5 in Material Pressure Cast Aluminum For Use With EMT Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Set screw type has slotted hex head steel hardened cup-point set screw for EMT; Wiring capacity: 35 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Roomy interiors more wiring space Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 85™ copper free aluminum unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance Lightweight aluminum facilitates shipping, handling and installing Sizes with flat-back design ideal where fitting is mounted flat against surface Internal volume and maximum wire capacity clearly marked on castings Threaded style is raintight when used with casketed covers Set screw type has slotted hex head steel hardened cup-point set screw for EMT Stainless steel screw, neoprene or composition fiber gasket Pressure Cast Aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With EMT |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LB150TA |
| Connection | Set-Screw |
| Country of Origin | IN |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.4600 lb |
| Gross Weight per Pack Metric | 0.66 |
| Gross Weight UOM Metric | kg |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Length | 8.60 in |
| Length [Metric] | 21.8440 cm |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, 065183 Certified, RoHS Compliant |
| Sub Brand | UNILETS |
| Type | Type LB Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC 11 | 78138147690 |
| UPC 12 | 781381476904 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Hub Size | 1.5 in |
| Material | Pressure Cast Aluminum |
| For Use With EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Set screw type has slotted hex head steel hardened cup-point set screw for EMT; Wiring capacity: 35 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Set screw type has slotted hex head steel hardened cup-point set screw for EMT |
| Stainless steel screw, neoprene or composition fiber gasket |
| Pressure Cast Aluminum |
