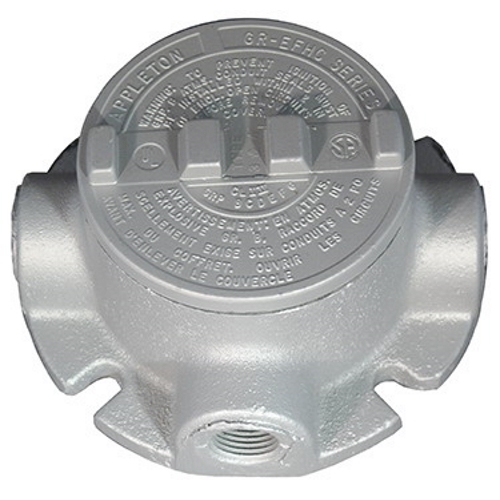

Appleton® Unilets™ GRFT100 Explosionproof Conduit Outlet Box, 1 in, 3.38 in Cover Opening, 18 cu-in, Tri-Coated
Custom_Product_Images_Illustration
Appleton® Unilets™ GRFT100 Explosionproof Conduit Outlet Box, 1 in, 3.38 in Cover Opening, 18 cu-in, Tri-Coated
SKU464257
MFGR #GRFT100
Your Cost: $124.97/ea
Appleton® Unilets™ Conduit Outlet Box, Dust-Ignitionproof Explosionproof, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metal Conduit System, Malleable Iron, Tri-Coated, 3-3/4 in H x 3-3/4 in W
Appleton® Unilets™ Conduit Outlet Box, Dust-Ignitionproof Explosionproof, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metal Conduit System, Malleable Iron, Tri-Coated, 3-3/4 in H x 3-3/4 in W
Application For Use With Threaded Metal Conduit ARRA Compliant N Buy American Compliant N Cable Entry 1 Catalog Number GRFT100 Country of Origin MX Cubic Capacity 18 CU-IN in³ Currency USD Depth 1.000000000000000 in Dimensions 3-3/4 in H x 3-3/4 in W EU RoHS Indicator C Gross Weight Per Pack 3.6500 lb Gross Weight per Pack Metric 1.66 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Length 7.00 in Length [Metric] 17.7800 cm Material Malleable Iron Number Of Outlet 3 Standard Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III Standards Class 1, Zone 1, 2 IIA, IIB, Class I, Div 1, 2, Groups B, C, D Class II, Div 1, 2, Groups E, F, G Class IIIUL File No. E10444CSA C22.2 No. 25/30 File No. 013017 Certified Sub Brand UNILETS Suitable For Use With Threaded Metal Conduit System Type Dust-Ignitionproof Explosionproof UNSPSC 39121308 UPC 11 78138143900 UPC 12 781381439008 Width 6.00 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 18 in³ Cover Opening Size 3.38 in Finish Tri-Coated Size 1 in For Use With Threaded Metal Conduit Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity Furnished with covers General purpose wiring Function as sealing fittings when used with sealing covers Internally threaded body with externally threaded cover Covers have pry notches for bar or wrench Accommodate sealing, dome, hub and union hub covers and canopies Standard O-rings provide raintight fit, NEMA 3/4 Internal ground screw standard Smooth, rounded integral bushing in each hub type box protects conductor insulation Complies with a wide range of classified area requirements Corrosion resistant ideal for indoor and outdoor installations For pulling of wires Connect conduit lengths and change direction of conduit runs Provide access for maintenance Explosionproof, dust-ignition proof Triple coat of zinc electroplate, chromate and epoxy powder coated finish (3) 1-1/2 in GRC hub cable entry and 18 cu-in cubic capacity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 1 |
| Catalog Number | GRFT100 |
| Country of Origin | MX |
| Cubic Capacity | 18 CU-IN in³ |
| Currency | USD |
| Depth | 1.000000000000000 in |
| Dimensions | 3-3/4 in H x 3-3/4 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 3.6500 lb |
| Gross Weight per Pack Metric | 1.66 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Material | Malleable Iron |
| Number Of Outlet | 3 |
| Standard | Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III |
| Standards | Class 1, Zone 1, 2 IIA, IIB, Class I, Div 1, 2, Groups B, C, D Class II, Div 1, 2, Groups E, F, G Class IIIUL File No. E10444CSA C22.2 No. 25/30 File No. 013017 Certified |
| Sub Brand | UNILETS |
| Suitable For Use With | Threaded Metal Conduit System |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39121308 |
| UPC 11 | 78138143900 |
| UPC 12 | 781381439008 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 18 in³ |
| Cover Opening Size | 3.38 in |
| Finish | Tri-Coated |
| Size | 1 in |
| For Use With Threaded Metal Conduit |
| Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| Furnished with covers |
| General purpose wiring |
| Function as sealing fittings when used with sealing covers |
| Internally threaded body with externally threaded cover |
| Covers have pry notches for bar or wrench |
| Accommodate sealing, dome, hub and union hub covers and canopies |
| Standard O-rings provide raintight fit, NEMA 3/4 |
| Internal ground screw standard |
| Smooth, rounded integral bushing in each hub type box protects conductor insulation |
| Complies with a wide range of classified area requirements |
| Corrosion resistant ideal for indoor and outdoor installations |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs |
| Provide access for maintenance |
| Explosionproof, dust-ignition proof |
| Triple coat of zinc electroplate, chromate and epoxy powder coated finish |
| (3) 1-1/2 in GRC hub cable entry and 18 cu-in cubic capacity |
