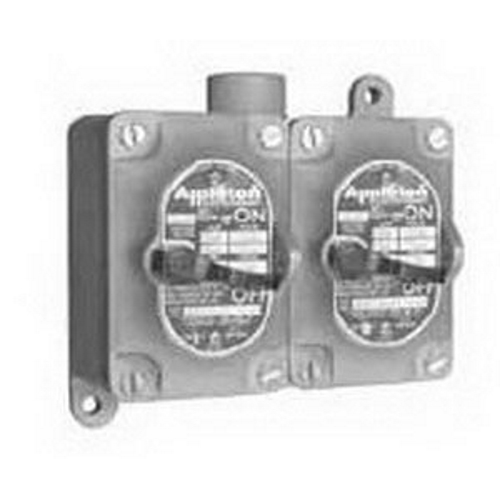

Appleton® Unilets™ EDS275-F1 EDS Tumbler Switch 120/277 VAC 20 A 2 hp
Custom_Product_Images_Illustration
Appleton® Unilets™ EDS275-F1 EDS Tumbler Switch 120/277 VAC 20 A 2 hp
SKU323442
MFGR #EDS275-F1
$/ea
EDS Series factory sealed tumbler switches prevent ignition of hazardous atmospheres by containing any arcing within a factory sealed enclosure. Many models are suitable for use in locations where Group B gases (hydrogen) are present. Front operated and side rocker arm models are available, and both types can be padlocked in either the on or off position.
EDS Series factory sealed tumbler switches prevent ignition of hazardous atmospheres by containing any arcing within a factory sealed enclosure. Many models are suitable for use in locations where Group B gases (hydrogen) are present. Front operated and side rocker arm models are available, and both types can be padlocked in either the on or off position.
Actuator Lever Amperage Rating 20 A Application For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present ARRA Compliant N Brand Appleton™ Buy American Compliant N Catalog Number EDS275F1 Connection Type Threaded Country of Origin MX Currency USD Dimensions 6.38 in H x 6.19 in W x 4.69 in D Enclosure NEMA 7CD, 9EFG EU RoHS Indicator C Finish Triple Coated Gross Weight Per Pack 8.6500 lb Gross Weight per Pack Metric 3.92 Gross Weight UOM Metric kg Height 5.70 in Height [Metric] 14.4780 cm Length 7.00 in Length [Metric] 17.7800 cm Manufacturer Appleton Material Malleable Iron Mounting Surface Mount With 3/4 IN Dead-End Hub Mounting Type Surface NEMA Rating NEMA 7CD/9EFG Number Of Poles 1 Series EDS Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III Standards RoHS Compliant, UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C and D, Class II, Groups E, F, G, and Class III Stock Status NONSTOCK Sub Brand UNILETS Type 2-Gang Dead End UNSPSC 39121565 UPC 11 78138132548 UPC 12 781381325486 Voltage Rating 120 to 277 VAC Width 6.60 in Width [Metric] 16.7640 cm For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking Enclosures have external mounting lugs for ease of mounting Smooth, rounded integral bushing in each hub protects conductor insulation Enclosures furnished with internal ground screw Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch Tumbler switch devices are approved for installation without additional external sealing fittings 20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction Sealing chamber has prewired factory sealed pigtail leads to switch Threaded stainless steel operating handle provides positive corrosion resistant operation Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction Pad lockable in the on or off position Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads For use in classified areas where ignitable vapors, gases or highly combustible dusts are present. For installation in chemical plants, petrochemical plants, refineries, other process industries Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure. Stainless steel hex head cap screws for attaching cover to mounting enclosure. On/off legend marking Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements. Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads 3/4 in dead-end hub 2 gang 1 hp at 120 VAC, 2 hp at 240 VAC Nylon 6/6 handle. Triple-coat (zinc electroplate, chromate and epoxy powder coat) finish, Front operated lever actuator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Lever |
| Amperage Rating | 20 A |
| Application | For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| ARRA Compliant | N |
| Brand | Appleton™ |
| Buy American Compliant | N |
| Catalog Number | EDS275F1 |
| Connection Type | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.38 in H x 6.19 in W x 4.69 in D |
| Enclosure | NEMA 7CD, 9EFG |
| EU RoHS Indicator | C |
| Finish | Triple Coated |
| Gross Weight Per Pack | 8.6500 lb |
| Gross Weight per Pack Metric | 3.92 |
| Gross Weight UOM Metric | kg |
| Height | 5.70 in |
| Height [Metric] | 14.4780 cm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Mounting | Surface Mount With 3/4 IN Dead-End Hub |
| Mounting Type | Surface |
| NEMA Rating | NEMA 7CD/9EFG |
| Number Of Poles | 1 |
| Series | EDS |
| Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III |
| Standards | RoHS Compliant, UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C and D, Class II, Groups E, F, G, and Class III |
| Stock Status | NONSTOCK |
| Sub Brand | UNILETS |
| Type | 2-Gang Dead End |
| UNSPSC | 39121565 |
| UPC 11 | 78138132548 |
| UPC 12 | 781381325486 |
| Voltage Rating | 120 to 277 VAC |
| Width | 6.60 in |
| Width [Metric] | 16.7640 cm |
| For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking |
| Enclosures have external mounting lugs for ease of mounting |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Enclosures furnished with internal ground screw |
| Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch |
| Tumbler switch devices are approved for installation without additional external sealing fittings |
| 20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber |
| Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction |
| Sealing chamber has prewired factory sealed pigtail leads to switch |
| Threaded stainless steel operating handle provides positive corrosion resistant operation |
| Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction |
| Pad lockable in the on or off position |
| Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads |
| For use in classified areas where ignitable vapors, gases or highly combustible dusts are present. For installation in chemical plants, petrochemical plants, refineries, other process industries |
| Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure. Stainless steel hex head cap screws for attaching cover to mounting enclosure. On/off legend marking |
| Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements. Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads |
| 3/4 in dead-end hub |
| 2 gang |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Nylon 6/6 handle. Triple-coat (zinc electroplate, chromate and epoxy powder coat) finish, Front operated lever actuator |
