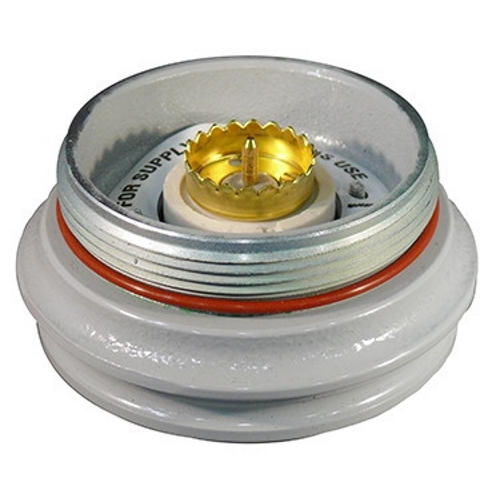

Appleton® Unilet® VAD-2M Adapter/Socket, For Use With V-51 Enclosed and Gasketed Lighting Fixture, 150 VAC, 150 to 300 W
Custom_Product_Images_Illustration
Appleton® Unilet® VAD-2M Adapter/Socket, For Use With V-51 Enclosed and Gasketed Lighting Fixture, 150 VAC, 150 to 300 W
SKU323210
MFGR #VAD2M
Your Cost: $163.25/ea
Appleton® Unilet® Adapter/Socket, For Use With: V-51 Enclosed and Gasketed Lighting Fixture, 150 VAC, 150 to 300 W, Malleable Iron, Zinc Plated
Appleton® Unilet® Adapter/Socket, For Use With: V-51 Enclosed and Gasketed Lighting Fixture, 150 VAC, 150 to 300 W, Malleable Iron, Zinc Plated
Application For V-51 Series Enclosed And Gasketed Lighting Fixtures ARRA Compliant N Buy American Compliant N Catalog Number VAD2M Country of Origin MX Currency USD EU RoHS Indicator C Finish Chromate/Epoxy Powder Coat/Zinc Electroplate Gross Weight Per Pack 2.8300 lb Gross Weight per Pack Metric 1.28 Gross Weight UOM Metric kg Height 3.70 in Height [Metric] 9.3980 cm Length 6.50 in Length [Metric] 16.5100 cm Standard NEC: Class I, Division 2, Groups A, B, C, D, CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 Standards UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant Sub Brand UNILETS Type Type PS30 UNSPSC 39111817 UPC 11 78138144183 UPC 12 781381441834 Width 6.20 in Width [Metric] 15.7480 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Malleable Iron Specifications 150 VAC, 150 to 300 W Lamp Suitable For Use With V-51™ Enclosed and Gasketed Lighting Fixtures For V-51 Series Enclosed And Gasketed Lighting Fixtures Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Guard snaps into two recesses of adapter - no clamps or set screws; For use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem; Suitable for use in wet locations Furnished with connection block for easy wiring Unitized construction reduces installation and maintenance costs Shock absorbing porcelain socket for longer lamp life Guard snaps into two recesses of adapter - no clamps or set screws Fits VAD-2 adapter A21 medium incandescent lamp Zinc electroplated/chromate/epoxy powder coated finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For V-51 Series Enclosed And Gasketed Lighting Fixtures |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | VAD2M |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Chromate/Epoxy Powder Coat/Zinc Electroplate |
| Gross Weight Per Pack | 2.8300 lb |
| Gross Weight per Pack Metric | 1.28 |
| Gross Weight UOM Metric | kg |
| Height | 3.70 in |
| Height [Metric] | 9.3980 cm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Standard | NEC: Class I, Division 2, Groups A, B, C, D, CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| Standards | UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant |
| Sub Brand | UNILETS |
| Type | Type PS30 |
| UNSPSC | 39111817 |
| UPC 11 | 78138144183 |
| UPC 12 | 781381441834 |
| Width | 6.20 in |
| Width [Metric] | 15.7480 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Specifications | 150 VAC, 150 to 300 W Lamp |
| Suitable For Use With | V-51™ Enclosed and Gasketed Lighting Fixtures |
| For V-51 Series Enclosed And Gasketed Lighting Fixtures |
| Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Guard snaps into two recesses of adapter - no clamps or set screws; For use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem; Suitable for use in wet locations |
| Furnished with connection block for easy wiring |
| Unitized construction reduces installation and maintenance costs |
| Shock absorbing porcelain socket for longer lamp life |
| Guard snaps into two recesses of adapter - no clamps or set screws |
| Fits VAD-2 adapter |
| A21 medium incandescent lamp |
| Zinc electroplated/chromate/epoxy powder coated finish |
