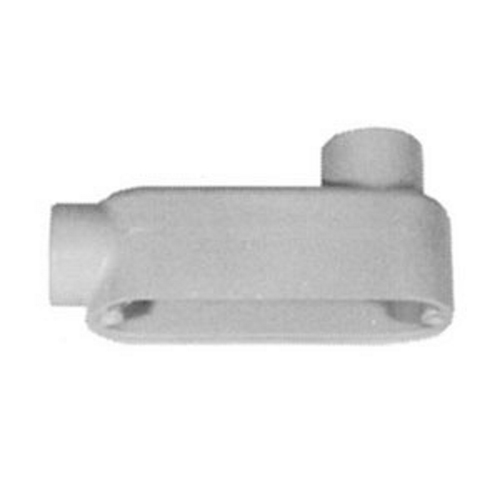

Appleton® Unilet® LB100-A Type LB Conduit Body, 1 in Hub, 85, 11.8 cu-in, Aluminum, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton® Unilet® LB100-A Type LB Conduit Body, 1 in Hub, 85, 11.8 cu-in, Aluminum, Epoxy Powder Coated
SKU17609
MFGR #LB100-A
Your Cost: $47.36/ea
Form 85 Unilet conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Form 85 Unilet conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT ARRA Compliant N Buy American Compliant N Catalog Number LB100-A Color Gray Connection Tapered Female Threaded Connection Type FNPT Country of Origin IN Currency USD Dimensions 6 in L x 2.63 in W x 2.81 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 0.5350 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Height 0.32 in Height [Metric] 8.0010 mm Length 12.70 in Length [Metric] 32.2580 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards CSA C22.2 No. 18.3 File No. 065183RoHS CompliantNEMA FB-1UL 514AUL 514B File No. E2527 Sub Brand UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138147625 UPC 12 781381476256 Width 10.00 in Width [Metric] 25.4000 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Capacity 11.8 in³ Finish Epoxy Powder Coated Form 85 Hub Size 1 in Material Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copper free aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 11.8 CU-IN as per NEC 314.16(A) Roomy interiors more wiring space Smooth, rounded integral bushings in hubs protect conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 85 copper free aluminum Unilets™ are lightweight, self-oxidizing, self-renewing and offer a high corrosion resistance Lightweight aluminum facilitates shipping, handling and installing Sizes with flat back design ideal where fitting is mounted flat against surface 1/2 to 3 in blank covers are domed for extra wiring space Serve as pulling fittings, make bends in conduit system Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Pressure cast aluminum material Internal volume and maximum wire capacity clearly marked on castings Threaded style is raintight when used with casketed covers Set screw type has slotted hex head steel hardened cup-point set screw for EMT Stainless steel screw, neoprene or composition fiber gasket Pressure Cast Aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LB100-A |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Connection Type | FNPT |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 6 in L x 2.63 in W x 2.81 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5350 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Height | 0.32 in |
| Height [Metric] | 8.0010 mm |
| Length | 12.70 in |
| Length [Metric] | 32.2580 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | CSA C22.2 No. 18.3 File No. 065183RoHS CompliantNEMA FB-1UL 514AUL 514B File No. E2527 |
| Sub Brand | UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138147625 |
| UPC 12 | 781381476256 |
| Width | 10.00 in |
| Width [Metric] | 25.4000 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 11.8 in³ |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Hub Size | 1 in |
| Material | Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copper free aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 11.8 CU-IN as per NEC 314.16(A) |
| Roomy interiors more wiring space |
| Smooth, rounded integral bushings in hubs protect conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85 copper free aluminum Unilets™ are lightweight, self-oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat back design ideal where fitting is mounted flat against surface |
| 1/2 to 3 in blank covers are domed for extra wiring space |
| Serve as pulling fittings, make bends in conduit system |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Pressure cast aluminum material |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Set screw type has slotted hex head steel hardened cup-point set screw for EMT |
| Stainless steel screw, neoprene or composition fiber gasket |
| Pressure Cast Aluminum |
