Appleton™

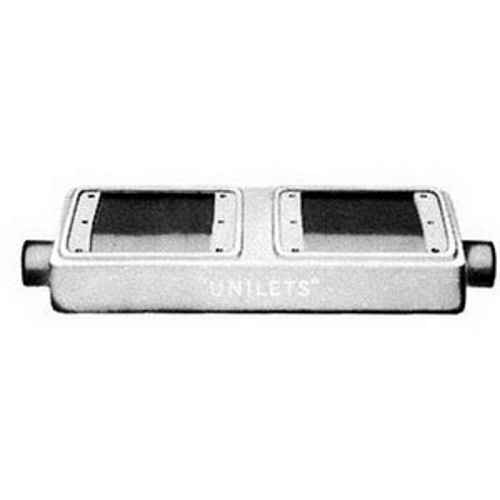

Appleton® Unilet® FSC-2T-75 Type FSC Heavy Duty Device Box With Internal Ground Screw, Malleable Iron, 40 cu-in, 2 Gangs
Custom_Product_Images_Illustration
Appleton™
Appleton® Unilet® FSC-2T-75 Type FSC Heavy Duty Device Box With Internal Ground Screw, Malleable Iron, 40 cu-in, 2 Gangs
SKU84533
MFGR #FSC2T75
Your Cost: $85.35/ea
These heavy duty cast hub device boxes accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs.
These heavy duty cast hub device boxes accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs.
Application For Use With Threaded Metal Conduit And IMC ARRA Compliant N Buy American Compliant N Cable Entry 0.75 Catalog Number FSC2T75 Country of Origin MX Cubic Capacity 40 CU-IN in³ Currency USD Enclosure Type NEMA FB-1 EU RoHS Indicator C Finish Tri-Coated Gross Weight Per Pack 3.8400 lb Gross Weight per Pack Metric 1.78 Gross Weight UOM Metric kg Height 0.70 in Height [Metric] 17.7800 mm Hub Size 3/4 in Hub Style Tapered Threaded Length 11.90 in Length [Metric] 30.2260 cm Number Of Outlet 2 Size 3/4 IN in Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 Standards UL 514A, E2527, CSA C22.2 No. 18.1, 001472, RoHS Compliant Sub Brand UNILETS Type Type FSC Heavy Duty Shallow UNSPSC 39121315 UPC 11 78138134485 UPC 12 781381344852 Width 10.60 in Width [Metric] 26.9240 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 40 in³ Dimensions 9.44 in H x 2.81 in W x 2 in D Material Malleable Iron Number of Gangs 2 Number of Knockouts 2 Number of Outlets 2 For Use With Threaded Metal Conduit And IMC Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; Corrosion-resistant ideal for indoor and outdoor installations Weatherproof, raintight and dust tight when used with cast gasketed covers FS and FD boxes take standard flush wiring devices FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit Accurately tapped, tapered threads for tight, rigid joints and ground continuity Complete selection of covers, receptacles, plugs, gaskets and accessories Covers have captive stainless steel screws to speed installation, prevents loss of screws Smooth, rounded integral bushing in each hub protects conductor insulation Accommodate wiring devices such as switches and receptacles Provide excellent service in areas where boxes are subject to rough usage Serve as pull boxes for conductors Permit access to conductors for maintenance Provide openings for making splices Allow connections for branch conduit runs Blank bodies for special conduit entrance arrangements Without knockouts Blank bodies for special conduit entrance arrangements (2) 3/4 in hub cable entryTriple Coat With Zinc Electroplate/Chromate/Epoxy Powder CoatWithout Knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 0.75 |
| Catalog Number | FSC2T75 |
| Country of Origin | MX |
| Cubic Capacity | 40 CU-IN in³ |
| Currency | USD |
| Enclosure Type | NEMA FB-1 |
| EU RoHS Indicator | C |
| Finish | Tri-Coated |
| Gross Weight Per Pack | 3.8400 lb |
| Gross Weight per Pack Metric | 1.78 |
| Gross Weight UOM Metric | kg |
| Height | 0.70 in |
| Height [Metric] | 17.7800 mm |
| Hub Size | 3/4 in |
| Hub Style | Tapered Threaded |
| Length | 11.90 in |
| Length [Metric] | 30.2260 cm |
| Number Of Outlet | 2 |
| Size | 3/4 IN in |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| Standards | UL 514A, E2527, CSA C22.2 No. 18.1, 001472, RoHS Compliant |
| Sub Brand | UNILETS |
| Type | Type FSC Heavy Duty Shallow |
| UNSPSC | 39121315 |
| UPC 11 | 78138134485 |
| UPC 12 | 781381344852 |
| Width | 10.60 in |
| Width [Metric] | 26.9240 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 40 in³ |
| Dimensions | 9.44 in H x 2.81 in W x 2 in D |
| Material | Malleable Iron |
| Number of Gangs | 2 |
| Number of Knockouts | 2 |
| Number of Outlets | 2 |
| For Use With Threaded Metal Conduit And IMC |
| Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Corrosion-resistant ideal for indoor and outdoor installations |
| Weatherproof, raintight and dust tight when used with cast gasketed covers |
| FS and FD boxes take standard flush wiring devices |
| FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears |
| Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock |
| Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Complete selection of covers, receptacles, plugs, gaskets and accessories |
| Covers have captive stainless steel screws to speed installation, prevents loss of screws |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accommodate wiring devices such as switches and receptacles |
| Provide excellent service in areas where boxes are subject to rough usage |
| Serve as pull boxes for conductors |
| Permit access to conductors for maintenance |
| Provide openings for making splices |
| Allow connections for branch conduit runs |
| Blank bodies for special conduit entrance arrangements |
| Without knockouts |
| Blank bodies for special conduit entrance arrangements |
| (2) 3/4 in hub cable entryTriple Coat With Zinc Electroplate/Chromate/Epoxy Powder CoatWithout Knockout |
