Appleton™

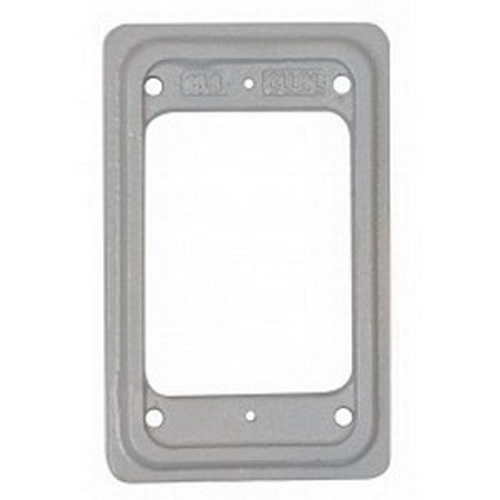

Appleton® Unilet® FS-1EXT Type FS Heavy Duty Device Box, Malleable Iron, 1 Gangs
Custom_Product_Images_Illustration
Appleton™
Appleton® Unilet® FS-1EXT Type FS Heavy Duty Device Box, Malleable Iron, 1 Gangs
SKU17335
MFGR #FS-1EXT
Your Cost: $39.03/ea
Appleton® Unilet® Device Box, Type FS Heavy Duty, 1 Gang, 1 in Hub, Surface Mount, Malleable Iron, 2 in H
Appleton® Unilet® Device Box, Type FS Heavy Duty, 1 Gang, 1 in Hub, Surface Mount, Malleable Iron, 2 in H
Application For Use With Unilets FS Single Gang Cast Hub Device Boxes ARRA Compliant Y Buy American Compliant N Catalog Number FS-1EXT Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.6800 lb Gross Weight per Pack Metric 0.31 Gross Weight UOM Metric kg Height 0.31 in Height [Metric] 7.8232 mm Hub Size 1 in Length 11.30 in Length [Metric] 28.7020 cm Mounting Box Mounting Type Surface Size 1 IN Extension Standard UL 514A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 Standards ARRA CompliantRoHS Compliant Sub Brand UNILETS Type Type FS Heavy Duty UNSPSC 39121315 UPC 11 78138134155 UPC 12 781381341554 Width 9.30 in Width [Metric] 23.6220 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Dimensions 2 in H Material Malleable Iron Number of Gangs 1 For Use With Unilets FS Single Gang Cast Hub Device Boxes Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity Malleable iron or copper-free aluminum boxes with epoxy powder coat finish, malleable iron, copper-free aluminum or steel covers, captive stainless steel screws, neoprene gaskets Rugged and corrosion resistant for indoor or outdoor use Weatherproof, raintight and dust tight when used with cast gasketed covers FS and FD boxes take standard flush wiring devices, FD boxes take devices exceeding 1-5/8 in D under fastening ears Ridge top construction provides positive fit between gasket, box and cover to seal out moisture Furnished with internal grounding screw Triple coat (zinc electroplate, chromate and epoxy powder coat)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Unilets FS Single Gang Cast Hub Device Boxes |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | FS-1EXT |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6800 lb |
| Gross Weight per Pack Metric | 0.31 |
| Gross Weight UOM Metric | kg |
| Height | 0.31 in |
| Height [Metric] | 7.8232 mm |
| Hub Size | 1 in |
| Length | 11.30 in |
| Length [Metric] | 28.7020 cm |
| Mounting | Box |
| Mounting Type | Surface |
| Size | 1 IN Extension |
| Standard | UL 514A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| Standards | ARRA CompliantRoHS Compliant |
| Sub Brand | UNILETS |
| Type | Type FS Heavy Duty |
| UNSPSC | 39121315 |
| UPC 11 | 78138134155 |
| UPC 12 | 781381341554 |
| Width | 9.30 in |
| Width [Metric] | 23.6220 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Dimensions | 2 in H |
| Material | Malleable Iron |
| Number of Gangs | 1 |
| For Use With Unilets FS Single Gang Cast Hub Device Boxes |
| Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity |
| Malleable iron or copper-free aluminum boxes with epoxy powder coat finish, malleable iron, copper-free aluminum or steel covers, captive stainless steel screws, neoprene gaskets |
| Rugged and corrosion resistant for indoor or outdoor use |
| Weatherproof, raintight and dust tight when used with cast gasketed covers |
| FS and FD boxes take standard flush wiring devices, FD boxes take devices exceeding 1-5/8 in D under fastening ears |
| Ridge top construction provides positive fit between gasket, box and cover to seal out moisture |
| Furnished with internal grounding screw |
| Triple coat (zinc electroplate, chromate and epoxy powder coat) |
