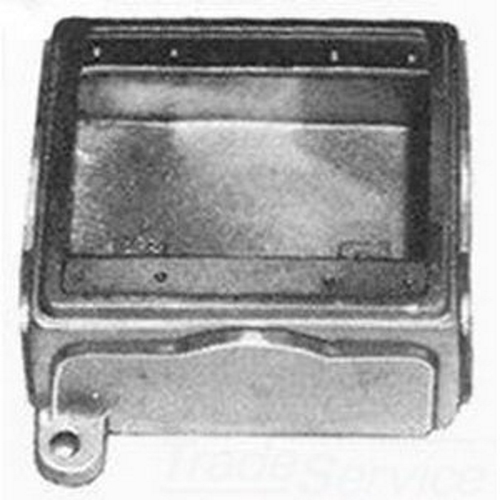

Appleton® Unilet® FDB-2GL Type FDB Thick Wall Device Box, Malleable Iron, 45 cu-in, 2 Gangs
Custom_Product_Images_Illustration
Appleton® Unilet® FDB-2GL Type FDB Thick Wall Device Box, Malleable Iron, 45 cu-in, 2 Gangs
SKU17289
MFGR #FDB2GL
$/ea
FDB cast device blank bodies can be drilled and tapped with conduit openings to suit your specifications. They can accommodate wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs.
FDB cast device blank bodies can be drilled and tapped with conduit openings to suit your specifications. They can accommodate wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs.
Application For Use With Threaded Metal Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number FDB2GL Country of Origin MX Currency USD Enclosure Type NEMA FB-1 EU RoHS Indicator C Finish Tri-Coated Gross Weight Per Pack 6.8000 lb Gross Weight per Pack Metric 3.08 Gross Weight UOM Metric kg Height 1.06 in Height [Metric] 2.6924 cm Hub Size 1/2 to 1-1/2 in Hub Style Tapered Threaded Length 12.10 in Length [Metric] 30.7340 cm Mounting Lugs Mounting Type Lug Standard UL 514 A, UL File Number E2527, NEMA FB-1 Standards ARRA CompliantRoHS CompliantUL 514A E2527NEMA FB-1 Sub Brand UNILETS Type Type FDB Deep Thick Wall UNSPSC 39121315 UPC 11 78138133263 UPC 12 781381332637 Width 9.00 in Width [Metric] 22.8600 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 45 in³ Dimensions 5 in H x 5.06 in W x 2.69 in D Material Malleable Iron Number of Gangs 2 For Use With Threaded Metal Conduit And IMC Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; Corrosion-resistant ideal for indoor and outdoor installations Weatherproof, raintight and dust tight when used with cast gasketed covers FD boxes take standard flush wiring devices FD boxes take devices exceeding 1-5/8 in depth under fastening ears Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit Accurately tapped, tapered threads for tight, rigid joints and ground continuity Complete selection of covers, receptacles, plugs, gaskets and accessories Covers have captive stainless steel screws to speed installation, prevents loss of screws Smooth, rounded integral bushing in each hub protects conductor insulation Accommodate wiring devices such as switches and receptacles Provide excellent service in areas where boxes are subject to rough usage Serve as pull boxes for conductors Permit access to conductors for maintenance Provide openings for making splices Allow connections for branch conduit runs Blank bodies for special conduit entrance arrangements Without knockouts 1/2 to 1-1/2 in cable entry Triple coat With Zinc Electroplate/Chromate/Epoxy Powder Coat finishWithout Knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | FDB2GL |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA FB-1 |
| EU RoHS Indicator | C |
| Finish | Tri-Coated |
| Gross Weight Per Pack | 6.8000 lb |
| Gross Weight per Pack Metric | 3.08 |
| Gross Weight UOM Metric | kg |
| Height | 1.06 in |
| Height [Metric] | 2.6924 cm |
| Hub Size | 1/2 to 1-1/2 in |
| Hub Style | Tapered Threaded |
| Length | 12.10 in |
| Length [Metric] | 30.7340 cm |
| Mounting | Lugs |
| Mounting Type | Lug |
| Standard | UL 514 A, UL File Number E2527, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantUL 514A E2527NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type FDB Deep Thick Wall |
| UNSPSC | 39121315 |
| UPC 11 | 78138133263 |
| UPC 12 | 781381332637 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 45 in³ |
| Dimensions | 5 in H x 5.06 in W x 2.69 in D |
| Material | Malleable Iron |
| Number of Gangs | 2 |
| For Use With Threaded Metal Conduit And IMC |
| Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Corrosion-resistant ideal for indoor and outdoor installations |
| Weatherproof, raintight and dust tight when used with cast gasketed covers |
| FD boxes take standard flush wiring devices |
| FD boxes take devices exceeding 1-5/8 in depth under fastening ears |
| Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock |
| Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Complete selection of covers, receptacles, plugs, gaskets and accessories |
| Covers have captive stainless steel screws to speed installation, prevents loss of screws |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accommodate wiring devices such as switches and receptacles |
| Provide excellent service in areas where boxes are subject to rough usage |
| Serve as pull boxes for conductors |
| Permit access to conductors for maintenance |
| Provide openings for making splices |
| Allow connections for branch conduit runs |
| Blank bodies for special conduit entrance arrangements |
| Without knockouts |
| 1/2 to 1-1/2 in cable entry |
| Triple coat With Zinc Electroplate/Chromate/Epoxy Powder Coat finishWithout Knockout |
