Appleton™

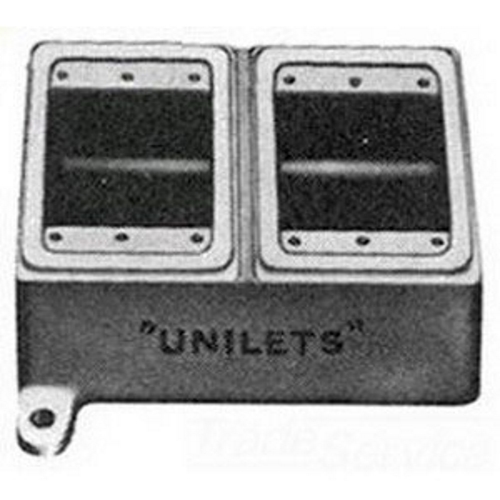

Appleton® Unilet® FD-2L Type FDH Device Box, Malleable Iron, 65 cu-in, 2 Gangs, 7 Knockouts
Custom_Product_Images_Illustration
Appleton™
Appleton® Unilet® FD-2L Type FDH Device Box, Malleable Iron, 65 cu-in, 2 Gangs, 7 Knockouts
SKU296836
MFGR #FD2L
Your Cost: $88.87/ea
FDH cast device blank bodies can be drilled and tapped with conduit openings to suit your specifications. They can accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs.
FDH cast device blank bodies can be drilled and tapped with conduit openings to suit your specifications. They can accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs.
Application For Use With Threaded Metal Conduit And IMC ARRA Compliant Y Buy American Compliant N Cable Entry Size Knockout Catalog Number FD2L Country of Origin MX Currency USD Enclosure Type NEMA FB-1 EU RoHS Indicator C Finish Tri-Coated Gross Weight Per Pack 4.7100 lb Gross Weight per Pack Metric 2.14 Gross Weight UOM Metric kg Height 2.90 in Height [Metric] 7.3660 cm Hub Size 3/4 in Hub Style Brazed Threaded Length 9.10 in Length [Metric] 23.1140 cm Mounting Lugs Mounting Type Lug Standard UL 514 A, UL File Number E2527, NEMA FB-1 Standards ARRA CompliantRoHS CompliantUL 514A E2527NEMA FB-1 Sub Brand UNILETS Type Type FDH Deep UNSPSC 39121315 UPC 11 78138133455 UPC 12 781381334556 Width 6.10 in Width [Metric] 15.4940 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 65 in³ Dimensions 4.56 in H x 4 in W x 2.69 in D Material Malleable Iron Number of Gangs 2 Number of Knockouts 7 For Use With Threaded Metal Conduit And IMC Furnished with internal ground screw; Use with single-gang covers; Corrosion resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Complete selection of covers, receptacles, plugs, gaskets and accessories; Covers have captive screws to speed installation, prevents loss of screws; Internal grounding screws standard; Brazed threaded hubs for threaded conduit from 1/2 IN through 1-1/2 IN and brazed union hubs from 1/2 IN through 1-1/4 IN; Smooth, rounded integral bushing in each hub protects conductor insulation; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for co Corrosion-resistant ideal for indoor and outdoor installations Weatherproof, raintight and dust tight when used with cast gasketed covers FS and FD boxes take standard flush wiring devices FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit Accurately tapped, tapered threads for tight, rigid joints and ground continuity Complete selection of covers, receptacles, plugs, gaskets and accessories Covers have captive stainless steel screws to speed installation, prevents loss of screws Smooth, rounded integral bushing in each hub protects conductor insulation Accommodate wiring devices such as switches and receptacles Provide excellent service in areas where boxes are subject to rough usage Serve as pull boxes for conductors Permit access to conductors for maintenance Provide openings for making splices Allow connections for branch conduit runs Blank bodies for special conduit entrance arrangements Without knockouts Blank bodies for special conduit entrance arrangements (1) top/bottom, (2) per side, (4) cable entry(2) Lugs mountingTriple Coat With Zinc Electroplate/Chromate/Epoxy Powder CoatWithout Knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Cable Entry Size | Knockout |
| Catalog Number | FD2L |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA FB-1 |
| EU RoHS Indicator | C |
| Finish | Tri-Coated |
| Gross Weight Per Pack | 4.7100 lb |
| Gross Weight per Pack Metric | 2.14 |
| Gross Weight UOM Metric | kg |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Hub Size | 3/4 in |
| Hub Style | Brazed Threaded |
| Length | 9.10 in |
| Length [Metric] | 23.1140 cm |
| Mounting | Lugs |
| Mounting Type | Lug |
| Standard | UL 514 A, UL File Number E2527, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantUL 514A E2527NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type FDH Deep |
| UNSPSC | 39121315 |
| UPC 11 | 78138133455 |
| UPC 12 | 781381334556 |
| Width | 6.10 in |
| Width [Metric] | 15.4940 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 65 in³ |
| Dimensions | 4.56 in H x 4 in W x 2.69 in D |
| Material | Malleable Iron |
| Number of Gangs | 2 |
| Number of Knockouts | 7 |
| For Use With Threaded Metal Conduit And IMC |
| Furnished with internal ground screw; Use with single-gang covers; Corrosion resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Complete selection of covers, receptacles, plugs, gaskets and accessories; Covers have captive screws to speed installation, prevents loss of screws; Internal grounding screws standard; Brazed threaded hubs for threaded conduit from 1/2 IN through 1-1/2 IN and brazed union hubs from 1/2 IN through 1-1/4 IN; Smooth, rounded integral bushing in each hub protects conductor insulation; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for co |
| Corrosion-resistant ideal for indoor and outdoor installations |
| Weatherproof, raintight and dust tight when used with cast gasketed covers |
| FS and FD boxes take standard flush wiring devices |
| FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears |
| Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock |
| Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Complete selection of covers, receptacles, plugs, gaskets and accessories |
| Covers have captive stainless steel screws to speed installation, prevents loss of screws |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accommodate wiring devices such as switches and receptacles |
| Provide excellent service in areas where boxes are subject to rough usage |
| Serve as pull boxes for conductors |
| Permit access to conductors for maintenance |
| Provide openings for making splices |
| Allow connections for branch conduit runs |
| Blank bodies for special conduit entrance arrangements |
| Without knockouts |
| Blank bodies for special conduit entrance arrangements |
| (1) top/bottom, (2) per side, (4) cable entry(2) Lugs mountingTriple Coat With Zinc Electroplate/Chromate/Epoxy Powder CoatWithout Knockout |
