Appleton™

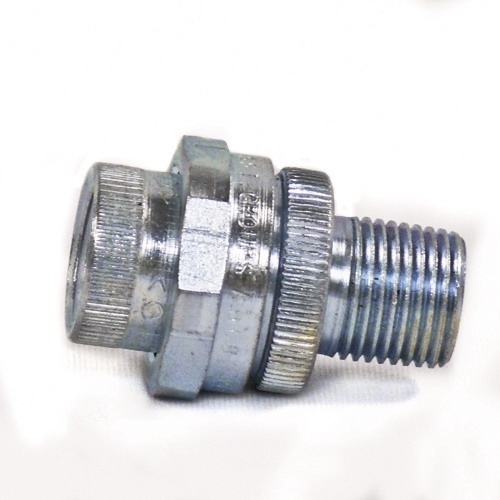

Appleton® UNY100NR-A Unilet® UNY Non-Expansion Explosionproof Conduit Union, 1 in, Aluminum, Natural
Custom_Product_Images_Illustration
Appleton™
Appleton® UNY100NR-A Unilet® UNY Non-Expansion Explosionproof Conduit Union, 1 in, Aluminum, Natural
SKU84378
MFGR #UNY100NR-A
Your Cost: $74.22/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Application For Connecting Conduit To Enclosure ARRA Compliant N Buy American Compliant N Catalog Number UNY100NR-A Connection Male Threaded X Female Threaded Country of Origin MX Currency USD Dimensions 2 in OD x 2.62 in L EU RoHS Indicator C Flexibility Rigid And IMC Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 0.70 in Height [Metric] 17.7800 mm Length 5.50 in Length [Metric] 13.9700 cm Outside Diameter 2 in Series UNY Standard UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups A, B, C, d; Class II, Groups E, F, G; and Class III, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified Standards UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181RoHs Compliant Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metallic Conduit Trade Size 1 in Type Dust-Ignitionproof Explosionproof UNSPSC 39131707 UPC 11 78138123428 UPC 12 781381234283 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Natural Material Copper Free Aluminum Size 1 in For Connecting Conduit To Enclosure Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNY unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit; Nipple not removable Facilitates modifications, permits removal of enclosures without turning or removal of conduit Explosion proof, dust-ignition proof Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Concretetight Male x female connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting Conduit To Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNY100NR-A |
| Connection | Male Threaded X Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2 in OD x 2.62 in L |
| EU RoHS Indicator | C |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 0.70 in |
| Height [Metric] | 17.7800 mm |
| Length | 5.50 in |
| Length [Metric] | 13.9700 cm |
| Outside Diameter | 2 in |
| Series | UNY |
| Standard | UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups A, B, C, d; Class II, Groups E, F, G; and Class III, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified |
| Standards | UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181RoHs Compliant |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Trade Size | 1 in |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39131707 |
| UPC 11 | 78138123428 |
| UPC 12 | 781381234283 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Natural |
| Material | Copper Free Aluminum |
| Size | 1 in |
| For Connecting Conduit To Enclosure |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNY unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit; Nipple not removable |
| Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Explosion proof, dust-ignition proof |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Concretetight |
| Male x female connection |
