Appleton™

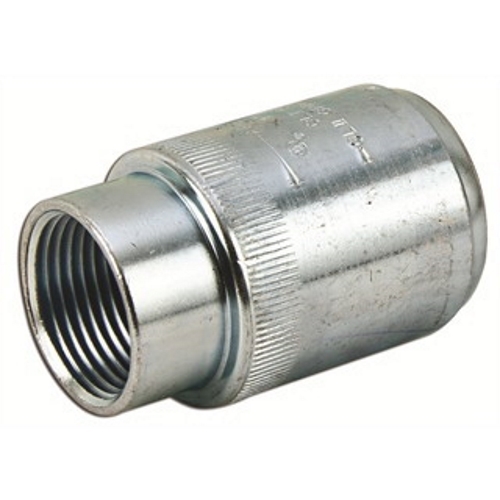

Appleton® UNF75 Unilet® UNF Expansion Standard Explosionproof Conduit Union, 3/4 in, Steel, Zinc Plated
Custom_Product_Images_Illustration
Appleton™
Appleton® UNF75 Unilet® UNF Expansion Standard Explosionproof Conduit Union, 3/4 in, Steel, Zinc Plated
SKU18016
MFGR #UNF75
Your Cost: $73.51/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Application For Connecting Conduit To Conduit ARRA Compliant N Buy American Compliant N Catalog Number UNF75 Connection Female Threaded Country of Origin MX Currency USD Dimensions 1.44 in OD x 3.06 in L EU RoHS Indicator N Flexibility Rigid And IMC Gross Weight Per Pack 0.3400 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Height 0.36 in Height [Metric] 9.1440 mm Length 6.70 in Length [Metric] 17.0180 cm Outside Diameter 1.44 in Series UNF Standard UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified Standards UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181 Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metallic Conduit Trade Size 0.75 in Type Dust-Ignitionproof Explosionproof Standard UNSPSC 39131707 UPC 11 78138169395 UPC 12 781381693950 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplated Material Steel Size 3/4 in For Connecting Conduit To Conduit Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; One-piece design eliminates need for disassembly during installation; Telescoping cylinder within cylinder design permits expansion or contraction; Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment; Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders; Expansion unions compensate for expansion and contraction of conduit Facilitates modifications, permits removal of enclosures without turning or removal of conduit Explosion proof, dust-ignition proof Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Concretetight One-piece design eliminates need for disassembly during installation Telescoping cylinder within cylinder design permits expansion or contraction Small external diameters excellent in restricted areas in wiring of pumps, motors, and other equipment Internal phosphor bronze "bonding jumper" ring assures positive ground between telescoping cylinders Zinc Electroplated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting Conduit To Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNF75 |
| Connection | Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.44 in OD x 3.06 in L |
| EU RoHS Indicator | N |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 0.3400 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Height | 0.36 in |
| Height [Metric] | 9.1440 mm |
| Length | 6.70 in |
| Length [Metric] | 17.0180 cm |
| Outside Diameter | 1.44 in |
| Series | UNF |
| Standard | UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified |
| Standards | UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181 |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Trade Size | 0.75 in |
| Type | Dust-Ignitionproof Explosionproof Standard |
| UNSPSC | 39131707 |
| UPC 11 | 78138169395 |
| UPC 12 | 781381693950 |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplated |
| Material | Steel |
| Size | 3/4 in |
| For Connecting Conduit To Conduit |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; One-piece design eliminates need for disassembly during installation; Telescoping cylinder within cylinder design permits expansion or contraction; Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment; Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders; Expansion unions compensate for expansion and contraction of conduit |
| Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Explosion proof, dust-ignition proof |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Concretetight |
| One-piece design eliminates need for disassembly during installation |
| Telescoping cylinder within cylinder design permits expansion or contraction |
| Small external diameters excellent in restricted areas in wiring of pumps, motors, and other equipment |
| Internal phosphor bronze "bonding jumper" ring assures positive ground between telescoping cylinders |
| Zinc Electroplated |
