Appleton™
Appleton® UNF250R-A UNILETS™ UNF250RA Dust/Explosion/Ignitionproof Explosionproof Conduit Union, 2-1/2 in, Aluminum, Natural
Custom_Product_Images_Illustration
Appleton™
Appleton® UNF250R-A UNILETS™ UNF250RA Dust/Explosion/Ignitionproof Explosionproof Conduit Union, 2-1/2 in, Aluminum, Natural
SKU494783
MFGR #UNF250RA
Your Cost: $201.27/ea

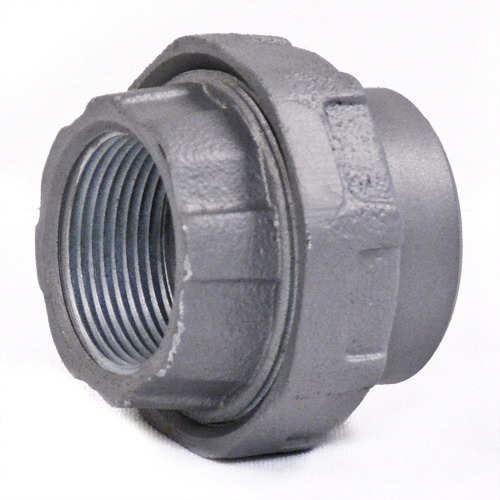

Appleton® UNILETS™ Explosionproof Conduit Union, Dust/Explosion/Ignitionproof Female, 2-1/2 in, For Use With: IMC/Threaded Rigid Metal Conduit, Aluminum, Natural, 4.88 in Dia x 3.38 in L
Appleton® UNILETS™ Explosionproof Conduit Union, Dust/Explosion/Ignitionproof Female, 2-1/2 in, For Use With: IMC/Threaded Rigid Metal Conduit, Aluminum, Natural, 4.88 in Dia x 3.38 in L
Application For Connecting Conduit To Conduit ARRA Compliant N Buy American Compliant N Catalog Number UNF250RA Connection Female Threaded Country of Origin MX Currency USD Dimensions 4.88 in Dia x 3.38 in L EU RoHS Indicator N Flexibility Rigid And IMC Gross Weight Per Pack 2.5400 lb Gross Weight per Pack Metric 1.15 Gross Weight UOM Metric kg Height 1.52 in Height [Metric] 3.8608 cm Length 10.80 in Length [Metric] 27.4320 cm Outside Diameter 4.88 in Standard UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups B, C, d; Class II, Groups E, F, G; and Class II, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified Standards Class I, Groups B, C, d, Class II, Groups E, F, G, Class IIUL 886 File No. E10444CSA C22.2 No. 25, 30, 065181 Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metal Conduit Trade Size 2.5 in Type Dust/Explosion/Ignitionproof Female UNSPSC 39131707 UPC 11 78138169470 UPC 12 781381694704 Width 7.90 in Width [Metric] 20.0660 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Natural Material Aluminum Size 2-1/2 in For Connecting Conduit To Conduit Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity Copper free aluminum material Copper free aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting Conduit To Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNF250RA |
| Connection | Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.88 in Dia x 3.38 in L |
| EU RoHS Indicator | N |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 2.5400 lb |
| Gross Weight per Pack Metric | 1.15 |
| Gross Weight UOM Metric | kg |
| Height | 1.52 in |
| Height [Metric] | 3.8608 cm |
| Length | 10.80 in |
| Length [Metric] | 27.4320 cm |
| Outside Diameter | 4.88 in |
| Standard | UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups B, C, d; Class II, Groups E, F, G; and Class II, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified |
| Standards | Class I, Groups B, C, d, Class II, Groups E, F, G, Class IIUL 886 File No. E10444CSA C22.2 No. 25, 30, 065181 |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metal Conduit |
| Trade Size | 2.5 in |
| Type | Dust/Explosion/Ignitionproof Female |
| UNSPSC | 39131707 |
| UPC 11 | 78138169470 |
| UPC 12 | 781381694704 |
| Width | 7.90 in |
| Width [Metric] | 20.0660 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Natural |
| Material | Aluminum |
| Size | 2-1/2 in |
| For Connecting Conduit To Conduit |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| Copper free aluminum material |
| Copper free aluminum |
