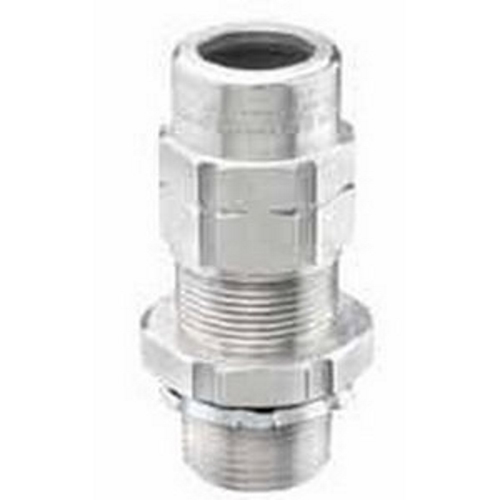

| TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent sealing and armor clamping; True 360 DEG grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required); Widest cable acceptance range; Re-usable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Stainless steel grounding spring; LSF-TPE (halogen free) bushing; Nylon end stop washer; Viton o-ring |
| Simplified two piece design |
| Integral 'O' ring face seal providing - 4X and IP66 |
| Independent sealing and armor clamping |
| Removable cable armor end stop accommodates larger insulated conductors |
| Superior pull-out prevention |
| Compact slim profile |
| Reduced installation time |
| Widest cable acceptance range |
| Re-usable design |
| Additional integral deluge proof seal for protection in extreme offshore and onshore environments |
| Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut |
