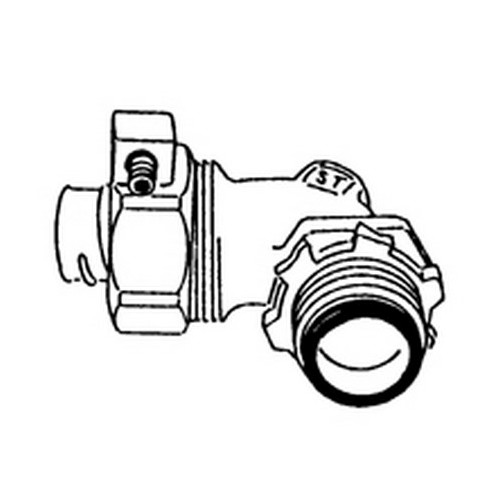

Appleton® STB-90100L Insulated Throat Liquidtight Conduit Connector, 1 in Trade, 14 to 4 AWG Cable Openings, 90 deg
Custom_Product_Images_Illustration
Appleton® STB-90100L Insulated Throat Liquidtight Conduit Connector, 1 in Trade, 14 to 4 AWG Cable Openings, 90 deg
SKU285890
MFGR #STB90100L
Your Cost: $40.94/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Liquidtight Flexible Metal Conduit ARRA Compliant Y Buy American Compliant N Catalog Number STB90100L Conductor Range 14 - 4 AWG Connection Threaded X Compression Country of Origin MX Currency USD Dimensions 1.81 in W EU RoHS Indicator C Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Height 0.62 in Height [Metric] 15.7480 mm Length 6.50 in Length [Metric] 16.5100 cm Series STB Size 1 IN in Standard Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 Standards ARRA CompliantRoHS CompliantUL 467UL File No. E6581CSA C22.2 No. 18.3CSA 065178Class I, Div 2 Suitable For Use With Liquidtight Flexible Metallic Conduit Type Liquidtight Oiltight Raintight UNSPSC 39121420 UPC 11 78138140379 UPC 12 781381403795 Width 4.70 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle 90 ° Cable Openings 14 to 4 AWG Finish Epoxy Powder Coated Material Malleable Iron Trade Size 1 in For Liquidtight Flexible Metal Conduit Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT) Unique long ferrule with more pronounced threads provides over four times UL pull out requirements Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection Full, machined tapered threads (NPT) Chromate/epoxy powder coated/zinc electroplated finish Full, machined tapered threads (NPT) Threaded x compression connection 3/4 in L thread
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Liquidtight Flexible Metal Conduit |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | STB90100L |
| Conductor Range | 14 - 4 AWG |
| Connection | Threaded X Compression |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.81 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Height | 0.62 in |
| Height [Metric] | 15.7480 mm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Series | STB |
| Size | 1 IN in |
| Standard | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantUL 467UL File No. E6581CSA C22.2 No. 18.3CSA 065178Class I, Div 2 |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Type | Liquidtight Oiltight Raintight |
| UNSPSC | 39121420 |
| UPC 11 | 78138140379 |
| UPC 12 | 781381403795 |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 90 ° |
| Cable Openings | 14 to 4 AWG |
| Finish | Epoxy Powder Coated |
| Material | Malleable Iron |
| Trade Size | 1 in |
| For Liquidtight Flexible Metal Conduit |
| Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT) |
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection |
| Full, machined tapered threads (NPT) |
| Chromate/epoxy powder coated/zinc electroplated finish |
| Full, machined tapered threads (NPT) |
| Threaded x compression connection |
| 3/4 in L thread |
