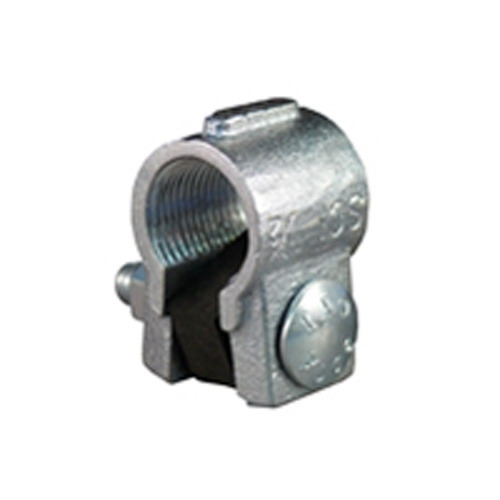

Appleton® SCC-100 SCC Threaded Split Conduit Coupling, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
Appleton® SCC-100 SCC Threaded Split Conduit Coupling, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated
SKU526617
MFGR #SCC-100
Your Cost: $12.11/ea
Appleton Group fittings keep the power flowing, keep your people safe, and last for decades. If the air is filled with flammable vapors, dusts and other dangers, selecting the correct fitting is a must. Even in an ordinary location, the right fittings make the job easier while ensuring a safe, durable electrical system. This is not the place to cut corners. Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
Appleton Group fittings keep the power flowing, keep your people safe, and last for decades. If the air is filled with flammable vapors, dusts and other dangers, selecting the correct fitting is a must. Even in an ordinary location, the right fittings make the job easier while ensuring a safe, durable electrical system. This is not the place to cut corners. Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
Application For Threaded Rigid Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number SCC-100 Connection Threaded Country of Origin MX Currency USD Dimensions 1.75 in OD x 2.63 in L EU RoHS Indicator C Flexibility Rigid And IMC Gross Weight Per Pack 0.4200 lb Gross Weight per Pack Metric 0.19 Gross Weight UOM Metric kg Height 0.37 in Height [Metric] 9.3980 mm Length 6.50 in Length [Metric] 16.5100 cm Mounting Type Bolt-On Outside Diameter 1.75 in Series SCC Standard UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1 Standards ARRA CompliantRoHS CompliantCSA 702992 C22.2 No. 18.4NEMA FB-1UL 514B File No. E14814 Sub Brand Bolt-On Trade Size 1 in Type Threaded UNSPSC 39131707 UPC 11 78138144153 UPC 12 781381441537 Width 6.20 in Width [Metric] 15.7480 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Plated Material Malleable Iron Size 1 in Suitable For Use With IMC/Rigid Conduit For Threaded Rigid Conduit and IMC Concretetight; Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts; Provides a fast inexpensive method of joining two sections of threaded rigid conduit in areas of close conduit spacing, tight clearance locations and irregular conduit bends which may normally require an expensive union Fast installation concrete tight, butt the end of the second threaded conduit section to the first Slip Bolt-On™ coupling to the center of the two conduit threads and tighten bolts Steel and zinc hardware, neoprene gasket
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Threaded Rigid Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | SCC-100 |
| Connection | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.75 in OD x 2.63 in L |
| EU RoHS Indicator | C |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 0.4200 lb |
| Gross Weight per Pack Metric | 0.19 |
| Gross Weight UOM Metric | kg |
| Height | 0.37 in |
| Height [Metric] | 9.3980 mm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Mounting Type | Bolt-On |
| Outside Diameter | 1.75 in |
| Series | SCC |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantCSA 702992 C22.2 No. 18.4NEMA FB-1UL 514B File No. E14814 |
| Sub Brand | Bolt-On |
| Trade Size | 1 in |
| Type | Threaded |
| UNSPSC | 39131707 |
| UPC 11 | 78138144153 |
| UPC 12 | 781381441537 |
| Width | 6.20 in |
| Width [Metric] | 15.7480 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Plated |
| Material | Malleable Iron |
| Size | 1 in |
| Suitable For Use With | IMC/Rigid Conduit |
| For Threaded Rigid Conduit and IMC |
| Concretetight; Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts; Provides a fast inexpensive method of joining two sections of threaded rigid conduit in areas of close conduit spacing, tight clearance locations and irregular conduit bends which may normally require an expensive union |
| Fast installation |
| concrete tight, butt the end of the second threaded conduit section to the first |
| Slip Bolt-On™ coupling to the center of the two conduit threads and tighten bolts |
| Steel and zinc hardware, neoprene gasket |
