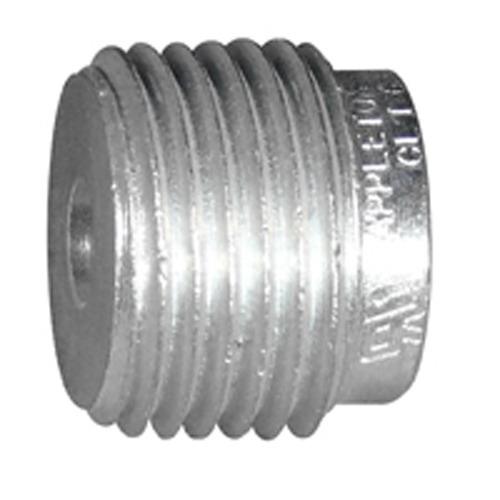

Appleton® RB250-125 Threaded Reducing Bushing, 2-1/2 to 1-1/4 in Conduit, Steel, Electro-Plated Zinc
Custom_Product_Images_Illustration
Appleton® RB250-125 Threaded Reducing Bushing, 2-1/2 to 1-1/4 in Conduit, Steel, Electro-Plated Zinc
SKU85116
MFGR #RB250125
$/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems ARRA Compliant N Buy American Compliant N Catalog Number RB250125 Color Silver Connection NPT Country of Origin MX Currency USD Dimensions 1-1/4 in L EU RoHS Indicator N Gross Weight Per Pack 1.2800 lb Gross Weight per Pack Metric 0.58 Gross Weight UOM Metric kg Height 0.30 in Height [Metric] 7.6200 mm Length 11.00 in Length [Metric] 27.9400 cm Series RB Series Size 2-1/2 X 1-1/4 IN in Standard Class I: Groups A, B, C, D, Class II: Groups E, F, G, Class III, UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Standards UL Listed for Class I Groups A, B, C, D, Class II Groups E, F, G, Class IIICSA C22.2 No.25CSA C22.2 No. 30CSA 065181UL 886UL 1203UL File No. E10444 Type Reducing Bushing UNSPSC 39121312 UPC 11 78138173640 UPC 12 781381736404 Width 9.00 in Width [Metric] 22.8600 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplated Material Steel Trade Size 2-1/2 x 1-1/4 in For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems Smooth rounded integral bushing protects conductor insulation Smooth rounded integral bushing protects conductor insulation Special Features Full machine tapered threads (NPT)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | RB250125 |
| Color | Silver |
| Connection | NPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-1/4 in L |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 1.2800 lb |
| Gross Weight per Pack Metric | 0.58 |
| Gross Weight UOM Metric | kg |
| Height | 0.30 in |
| Height [Metric] | 7.6200 mm |
| Length | 11.00 in |
| Length [Metric] | 27.9400 cm |
| Series | RB Series |
| Size | 2-1/2 X 1-1/4 IN in |
| Standard | Class I: Groups A, B, C, D, Class II: Groups E, F, G, Class III, UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 |
| Standards | UL Listed for Class I Groups A, B, C, D, Class II Groups E, F, G, Class IIICSA C22.2 No.25CSA C22.2 No. 30CSA 065181UL 886UL 1203UL File No. E10444 |
| Type | Reducing Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78138173640 |
| UPC 12 | 781381736404 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplated |
| Material | Steel |
| Trade Size | 2-1/2 x 1-1/4 in |
| For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems |
| Smooth rounded integral bushing protects conductor insulation |
| Smooth rounded integral bushing protects conductor insulation Special Features |
| Full machine tapered threads (NPT) |
